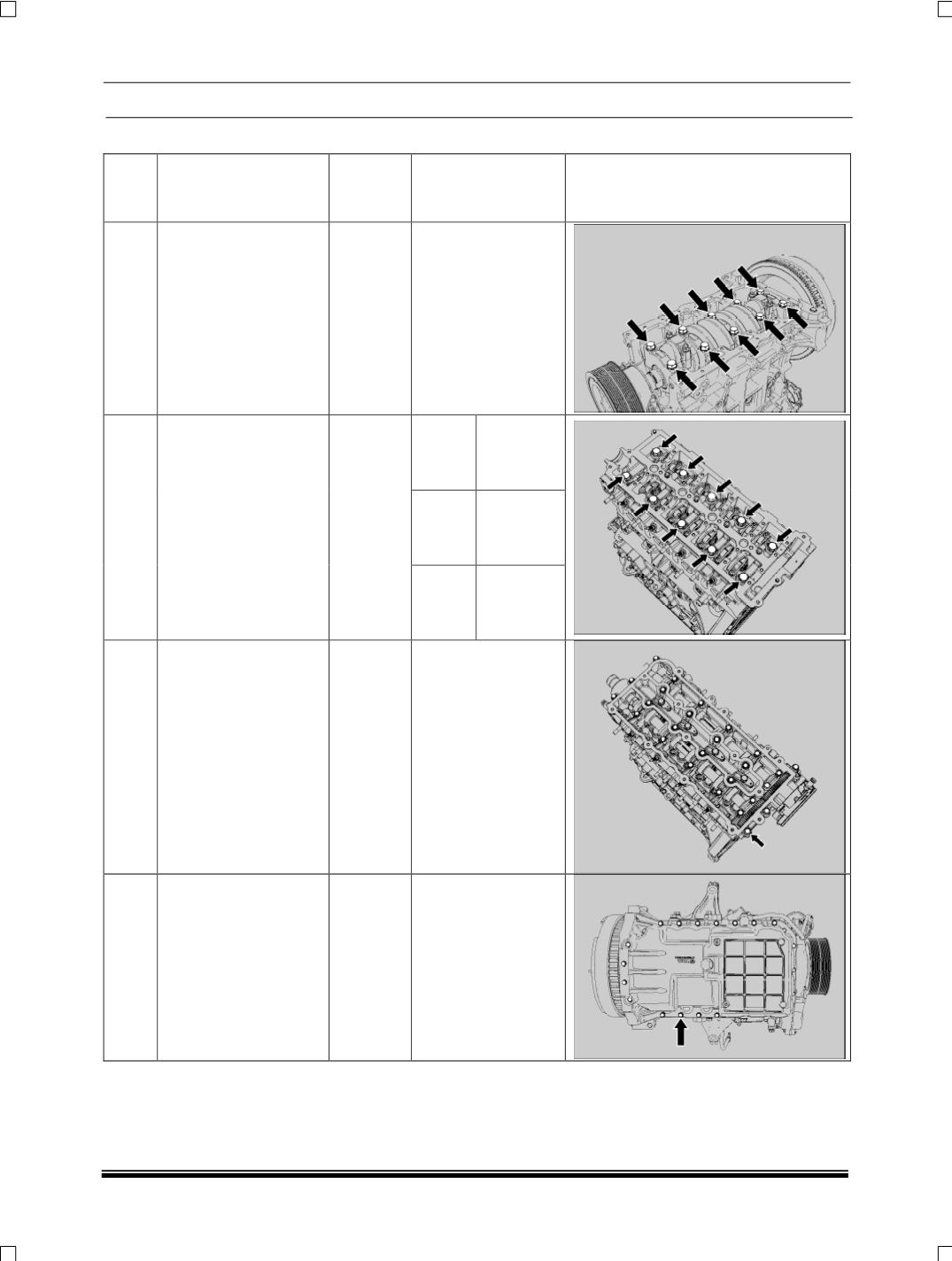

2.1.1.2 TIGHTENING TORQUES:
SR.
NO.
DESCRIPTION
FAS-
TENER
TYPE
TIGHTENING
TORQUE
(Kg-m)
LOCATION
1
Main bearing cap
mounting
Bolt
M12 X
1.5
5 ± 0.5 + 90
o
±10
o
2
Cylinder head mount-
ing
Bolt*
M12 X
1.5 ,12.9
Step 1
6 ± 0.5
Torque
Step 2
90
o
± 5
o
angle
Step 3
90
o
± 5
o
angle
3
Bearing frame mount-
ing on cylinder head
Bolt*
M6
1.2
4
Oil sump
Bolt
M6
1+0.2
