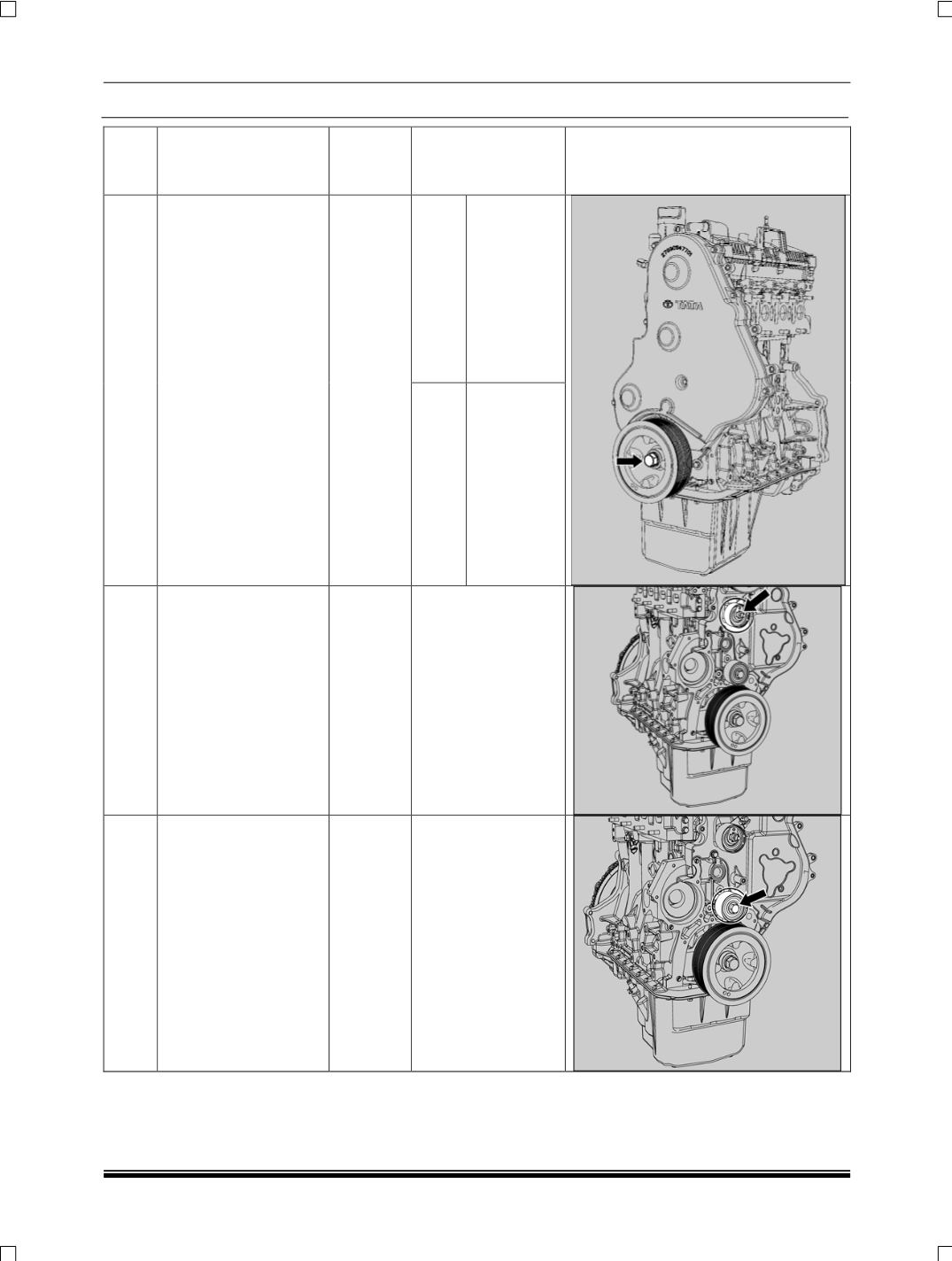

ENGINE

7

SR.

NO.

DESCRIPTION

FAS-

TENER

TYPE

TIGHTENING

TORQUE

(Kg-m)

LOCATION

17

Vibration damper pul-

ley mounting

Bolt

M15 X

1.5

Step

1

9 ± 1

torque

Step

2

110

O

± 10

O

angle

18

Auto tensioner mount-

ing

Nut

M8

3

19

Timing belt idler

mounting

Bolt

M12 X

1.5, 12.9

8 + 0.5
