ENGINE
68

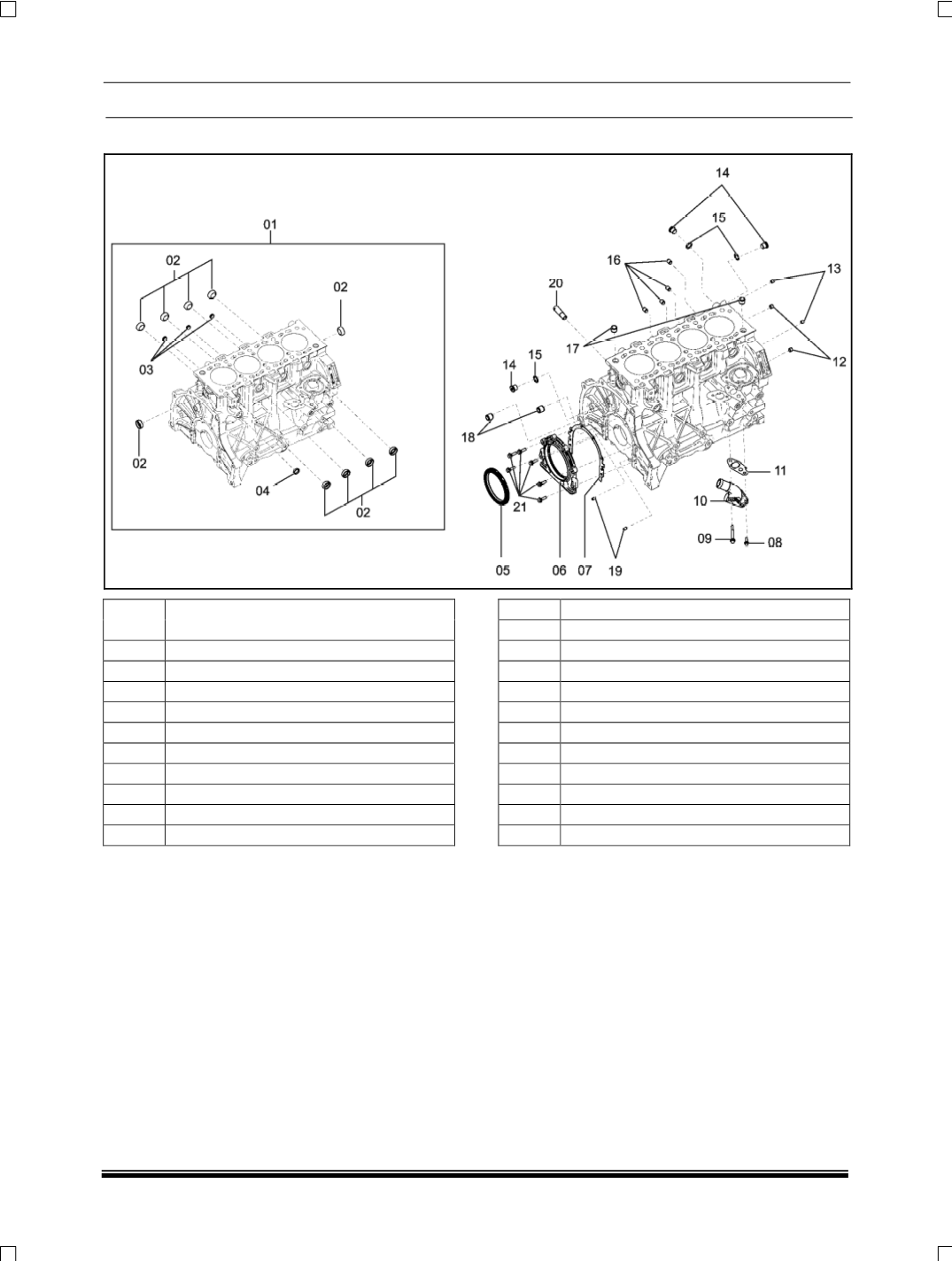

B. ENGINE EXPLODED VIEWS
SR.
NO.
DESCRIPTION
01
Assy. Cylinder crankcase with MB Cap
02
Core Plug
03
Sealing Cap B14
04
Sealing Cap B20
05
Oil Seal-Crankshaft(Rear)(CR Seal)
06
Rear Cover-Crankcase
07
Gasket-Rear Cover
07
Gasket-Rear Cover Crankcase
08
Hex Flanged Bolt M6X20
09
Hex Flanged Bolt M6X60
10
Coolant Adaptor
11
Gasket-Coolant Adaptor to Block
12
Hollow Dowel 10H6x8.4x8L
13
Hollow Dowel 8H6x6.5x8L
14
Sealing Plug M14X1.5
15
Sealing Washer 14X20
16
Hollow Dowel - Support FIP
17
Hollow Dowel - Cylinder Head
18
Hollow Dowel - Clutch Housing
19
Dowel 6h6X10
20
Tube-from Crankcase to Oil Cooler
21
Hex Flanged Screw M6X20
