ENGINE
67
2.1.3.4 ENGINE BLOCK

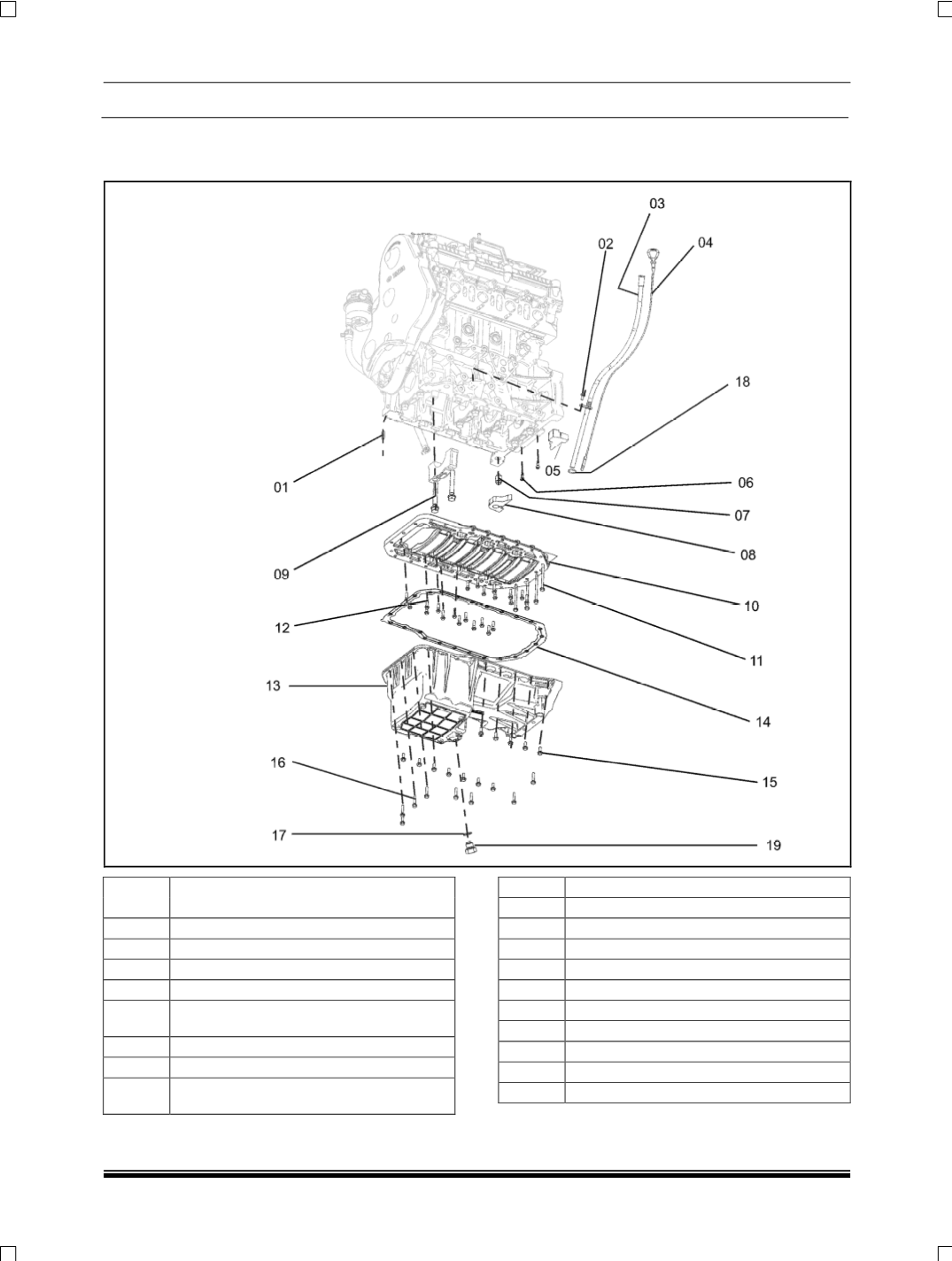

A. ENGINE EXPLODED VIEWS
SR.
NO.
DESCRIPTION
01
Hollow Dowel
(Oil sump mounting)
02
Hexagonal flange screw M6x14
03
Assembly dipstick tube
(Nylon)
04
Assembly Dipstick
05
Seal-LH
(Between sump and cylinder
block)
06
Cap screw M6x18
07
Hollow dowel
(Oil sump mounting)
08
Seal-RH
(Between sump and cylinder
Block)
09
Hexagonal bolt-MB.cap
10
Ladder frame
11
Hexagonal flange bolt
(M6x90)
12
Hexagonal flange bolt M6x25
13
Assembly Oil Sump
14
Oil sump gasket
15
Hexagonal flange screw M6x18
16
Hexagonal flange screw M6x30
17
Sealing washer
(Oil sump drain plug)
18
O-ring 11.8x1.8 C
19
Assembly magnetic drain plug
