ELECTRICAL
209
ELECTRICAL

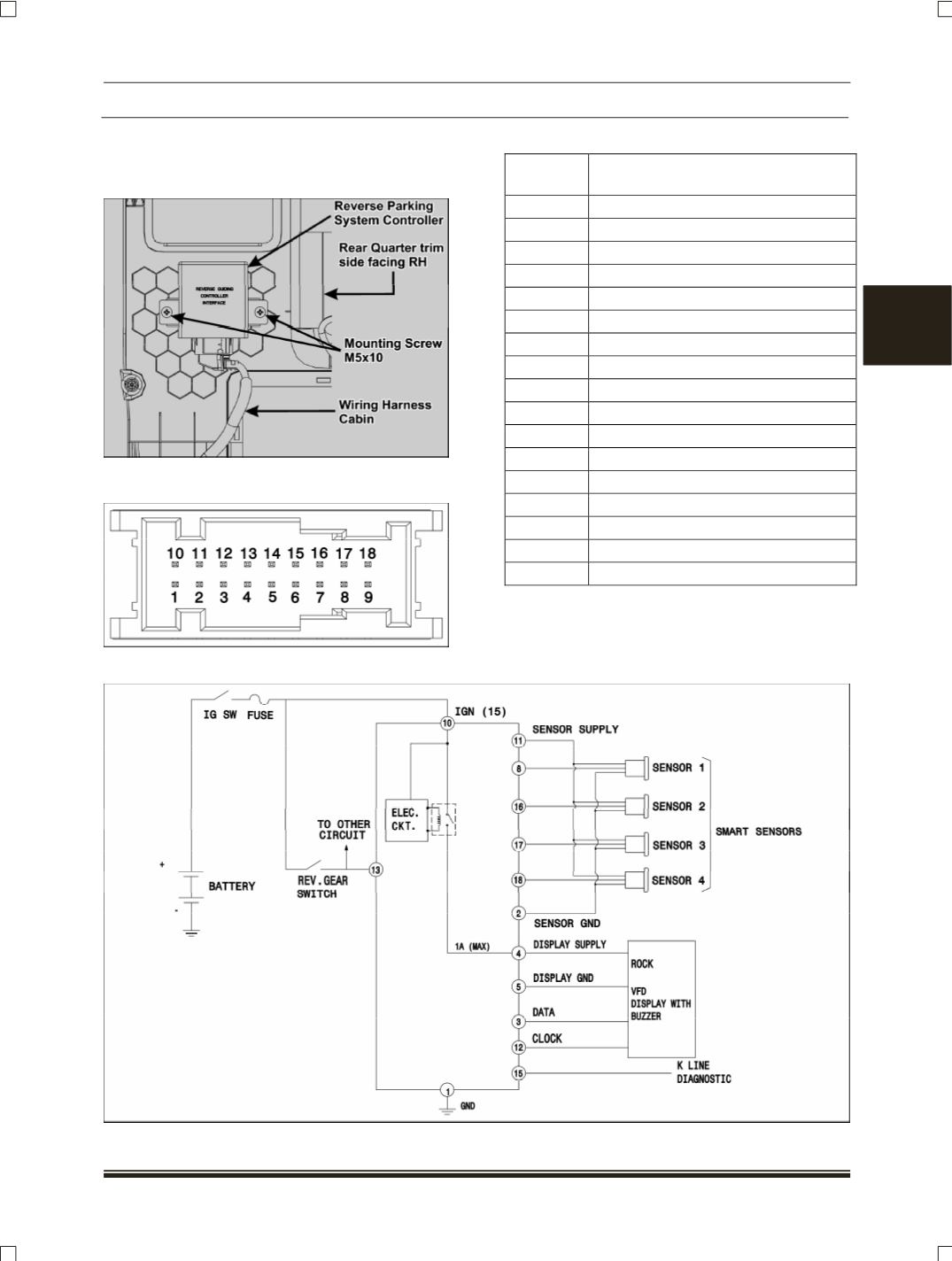

LOCATION:
It is located on the rear RH quarter trim side
facing RH.
CONNECTOR DETAILS:
PINOUT DETAILS:
PIN NO DESCRIPTION
1
Controller Gnd
2
Sensor Gnd
3
Data
4
Display supply
5
Display Gnd
6,7
NC
8
Sensor 1 signal
9
NC
10
Ignition
11
Sensor supply
12
Clock
13
Reverse light switch
14
NC
15
K line diagnostic
16
Sensor 2 signal
17
Sensor 3 signal
18
Sensor 4 signal
CONNECTION DETAILS:
