ELECTRICAL
204

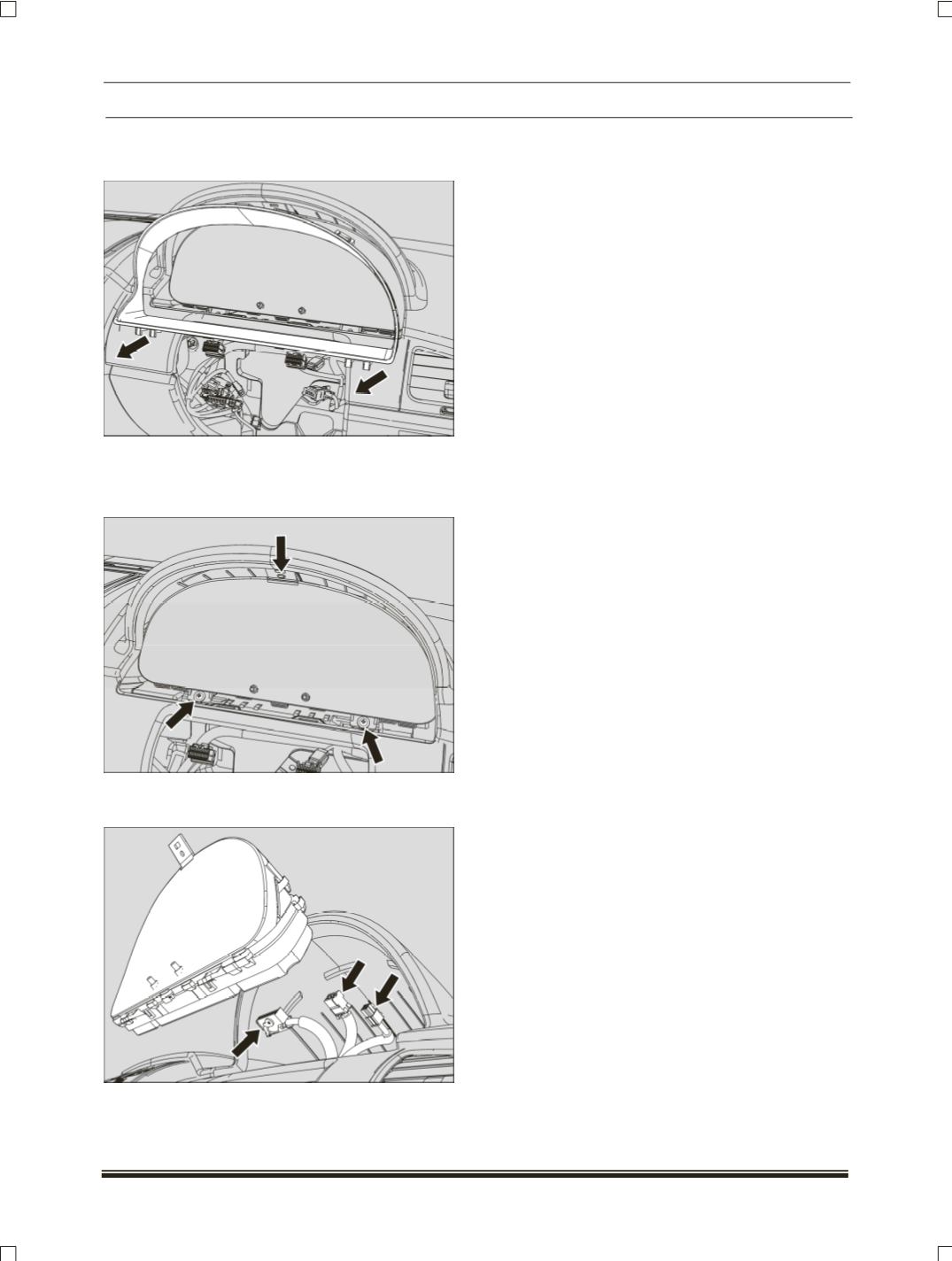

8.14 17. REMOVAL
1. Carefully pry out the instrument cluster finisher.
2. Remove three mounting screws of Instrument
cluster.
3. Disconnect the electrical connection of
Instrument cluster.
4. Take out the cluster.
REFITMENT:
1.Connect the electrical connection of instrument
cluster.
2.Fit the instrument cluster.
3.Tighten the three mounting screws of
instrument cluster.
Tightening torque of screws – 0.30 Kgm
4.Fit the instrument cluster finisher
(Snap fitted)
