ELECTRICAL
207
ELECTRICAL

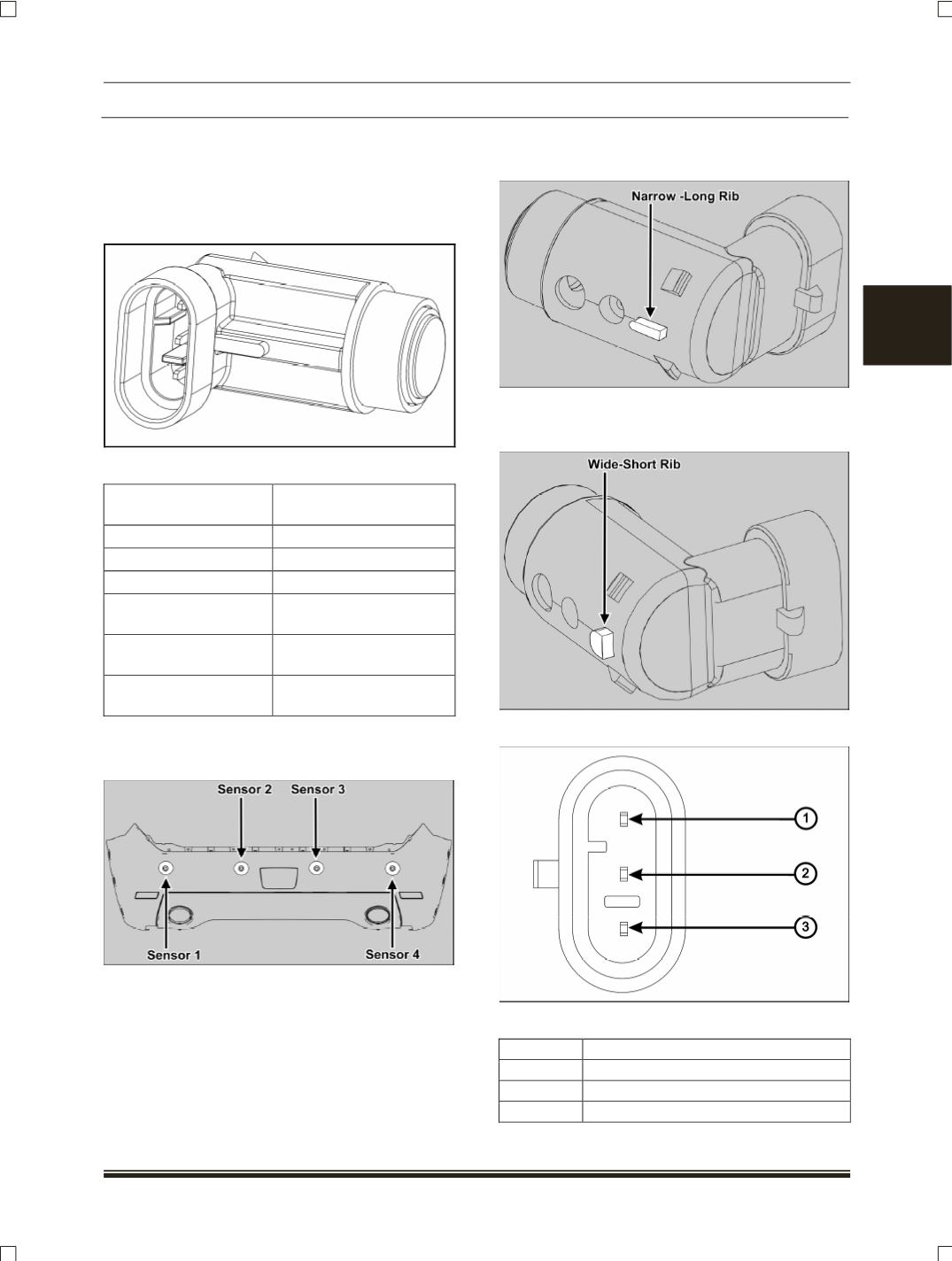

1. ULTRASONIC SENSOR:
FUNCTION:
The sensor working principle is same as
echo depth sounding. The sensor transmits the
ultrasonic pulses.
SPECIFICATIONS:
Sensor type
Ultrasonic with signal
processing unit
Supply voltage
6 to 10 Vdc ,-ve gnd
Operating temperature -30 °c to + 80 °c
Storage temperature
-40 °c to + 85 °c
Communication with
controller
Bidirectional
Beam Angle for Y=200
Sensor
( 2 and 3
)
Horizontal – 90°
Vertical - 50°
Beam Angle for Y=600
Sensor (
1 and 4)
Horizontal – 120°
Vertical - 80°
LOCATION:
It is located on the rear bumper.
Specifically adapted mounting brackets are
used to secure the sensors in their respective
positions in the bumper.
System has two types of sensors. They
have different detection angles and different size of
ribs for fitment. Appropriate slots are provided in
bumper housing where these are to be fitted.
A. Narrow Beam Sensor (
Middle sensors
):
Bumper mounting location: 2 and 3
B. Wide beam Sensor (
Extreme sensors
):
Bumper mounting location: 1 and 4
CONNECTOR DETAILS:
PINOUT DETAILS:
PIN NO
DESCRIPTION
1
Sensor supply
2
Communication line
3
Gnd
