TRANSAXLE
45
I. CLUTCH:
1. GENERAL INFORMATION:
1.1 TECHNICAL SPECIFICATION:

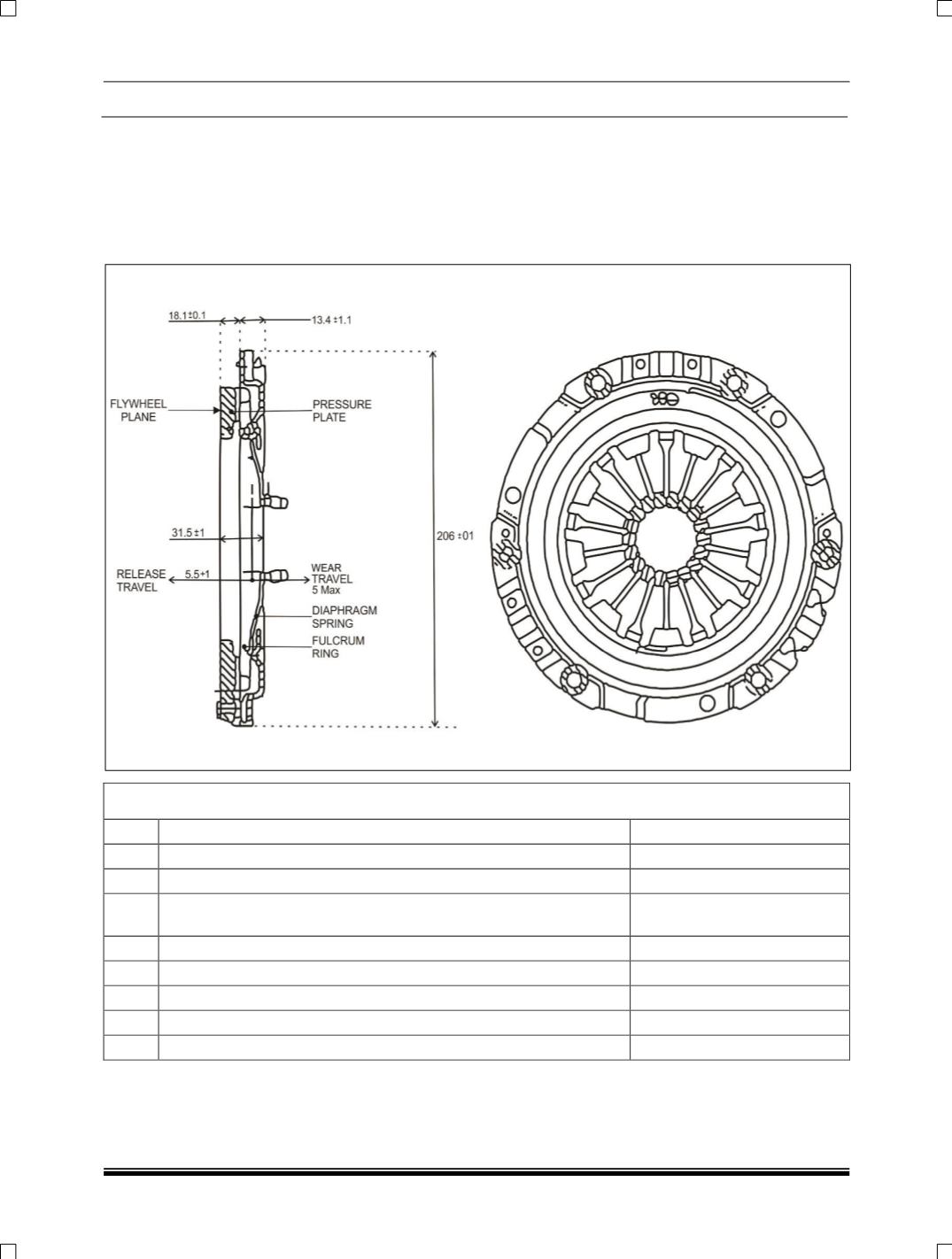

A. CLUTCH PRESSURE PLATE:
Type: Single Disc, Dry Friction, Diaphragm spring type.
CLUTCH PRESSURE PLATE
1.
Maximum height of flywheel friction face to clutch mounting face
18.1 ± 0.1 mm.
2.
Height of diaphragm spring (finger) from flywheel friction plate
31.5 ± 1mm.
3.
Maximum permissible imbalance of pressure plate assembly
150 gm-mm.
4.
Maximum permissible face run out of release bearing contact
surface of diaphragm
0.6 mm. Max. @ 44 mm
dia.
5.
Clamp load on unloading curve
265 kg. ± 27kg
6.
Release load (new clutch)
80kg ± 5kg.
7.
Release travel
5.5 +1mm.
8.
Maximumwear travel
5mm Max.
9.
Minimum pressure plate lift for release travel of 5.5 mm
1.4mm Min.
