ELECTRICAL

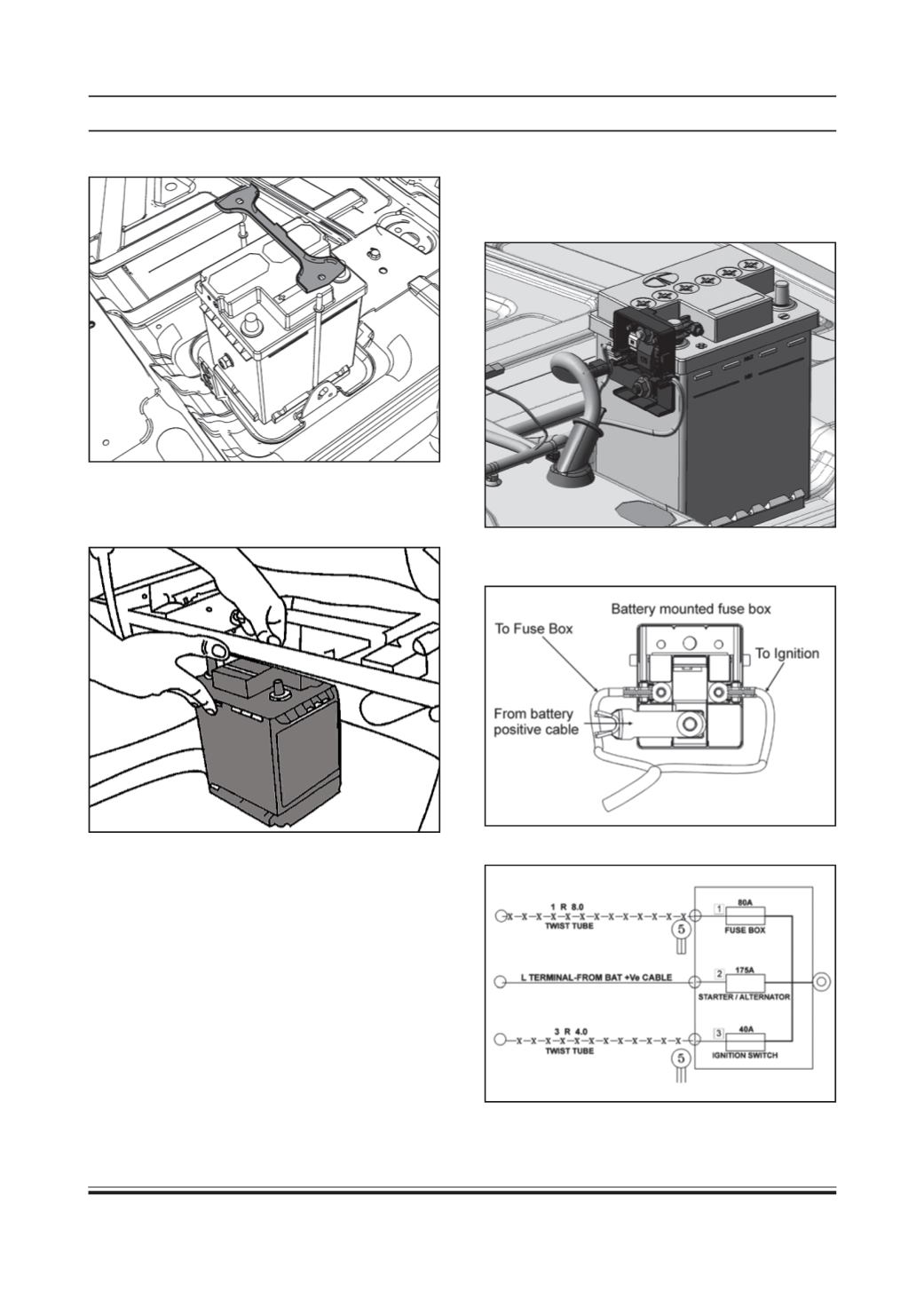

5. Take out the battery mounting clamp.
6. Slide the driver’s seat towards front side.
7. Carefully take out the battery from back side of the
driver’s seat.
Re-fitment:
1. Install battery from back side of driver seat.
2. Slide the driver seat to back side.
3. Connect the terminals.
4. Tighten the battery clamp top mounting bracket
and stud.
Battery Mounted Fuse Box
This fuse box is mounted to battery positive terminal/
battery . To access the fuses / connectors, press the
lugs provided on the cover & take out the same.
(Location of Battery Mounted fuse box)
Connection Details
Fuse details
