ELECTRICAL
605
ELECTRICAL

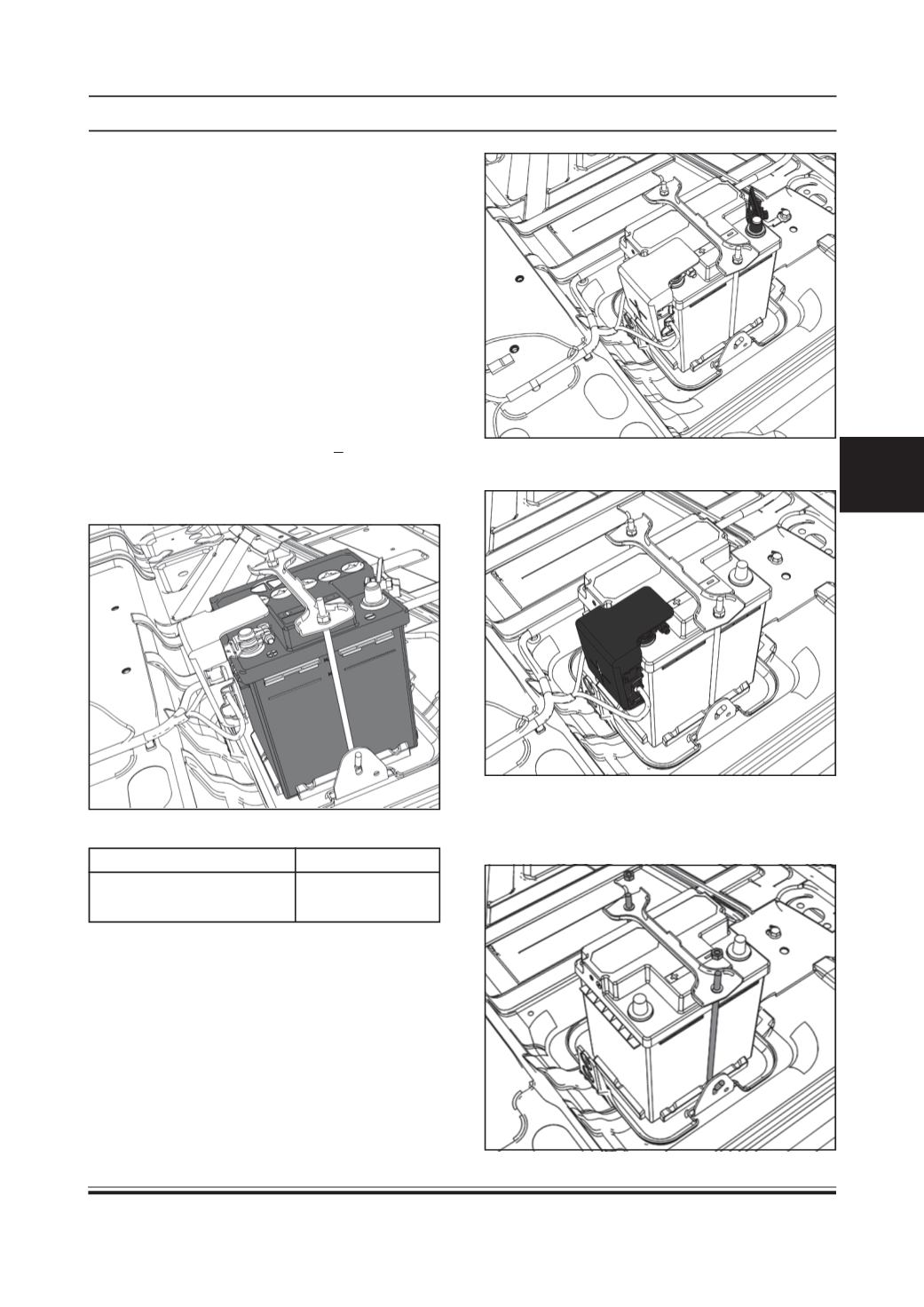

8.3 BATTERY
FUNCTION
The battery has three major functions in the electrical
system :
•
It is a source of electrical energy for cranking the
engine.
•
It acts as a voltage stabilizer for the electrical
system.
•
It can, for limited time, provide energy when the
electrical load exceeds the output of the
alternator.
SPECIFICATION
12V, 25 A/H, Specific Gravity : 1.24 + 0.01
LOCATION
Battery is located below driver’s seat.
TORQUE VALUE TABLE :
APPLICATION
TORQUEVALUE
MOUNTING BATTERYON
CLAMP (M8X18)
0.6 Kg fm
REMOVAL & RE-FITMENT OF BATTERY :
Removal:
1. Slide the driver’s seat towards rear side.
2. Disconnect the battery negative terminal by
loosening the nut.
3. Disconnect the battery positive terminal by
loosening the nut.
NOTE:
Ensure that both the battery terminals are away
from each other.
4. Remove both the nuts of battery holding studs.
