STEERING SYSTEM
577
STEERING

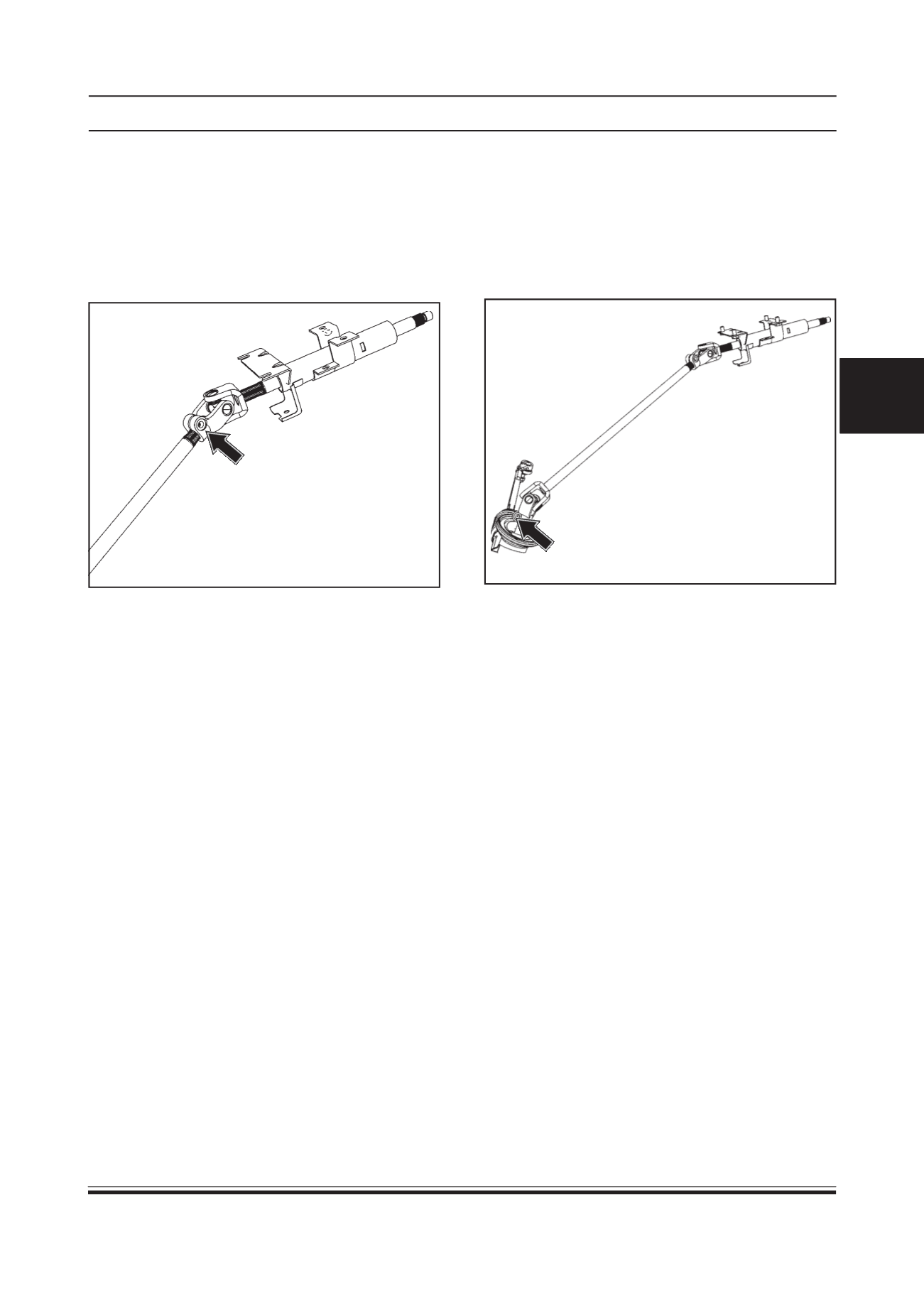

STEERING UPPER COLUMN
Removal :
1. Follow steps (1) to (6) of Steering Column
assembly removal procedure.
2. Remove upper universal joint bolt and take out
steering upper column.
INTERMEDIATE SHAFT
Removal :
1. Remove steering upper column. (Refer steering
upper column removal procedure)
2. Remove lower universal joint bolt and remove
intermediate shaft.
Installation :
1. Align steering upper column with intermediate
shaft and tighten upper universal joint bolt to
specified torque.
TIGHTENING TORQUE FOR UPPER UNIVERSAL JOINT
BOLT = 2.3 ± 0.1 Kg-m.
2. Install steering column assembly. (Refer steering
column assembly installation procedure)
Installation :
1. Align steering upper column with intermediate
shaft and tighten upper universal joint bolt to
specified torque.
TIGHTENING TORQUE FOR UPPER UNIVERSAL JOINT
BOLT = 2.3 ± 0.1 Kg-m.
2. Follow steps (2) to (8) of steering column assembly
installation procedure.
