STEERING

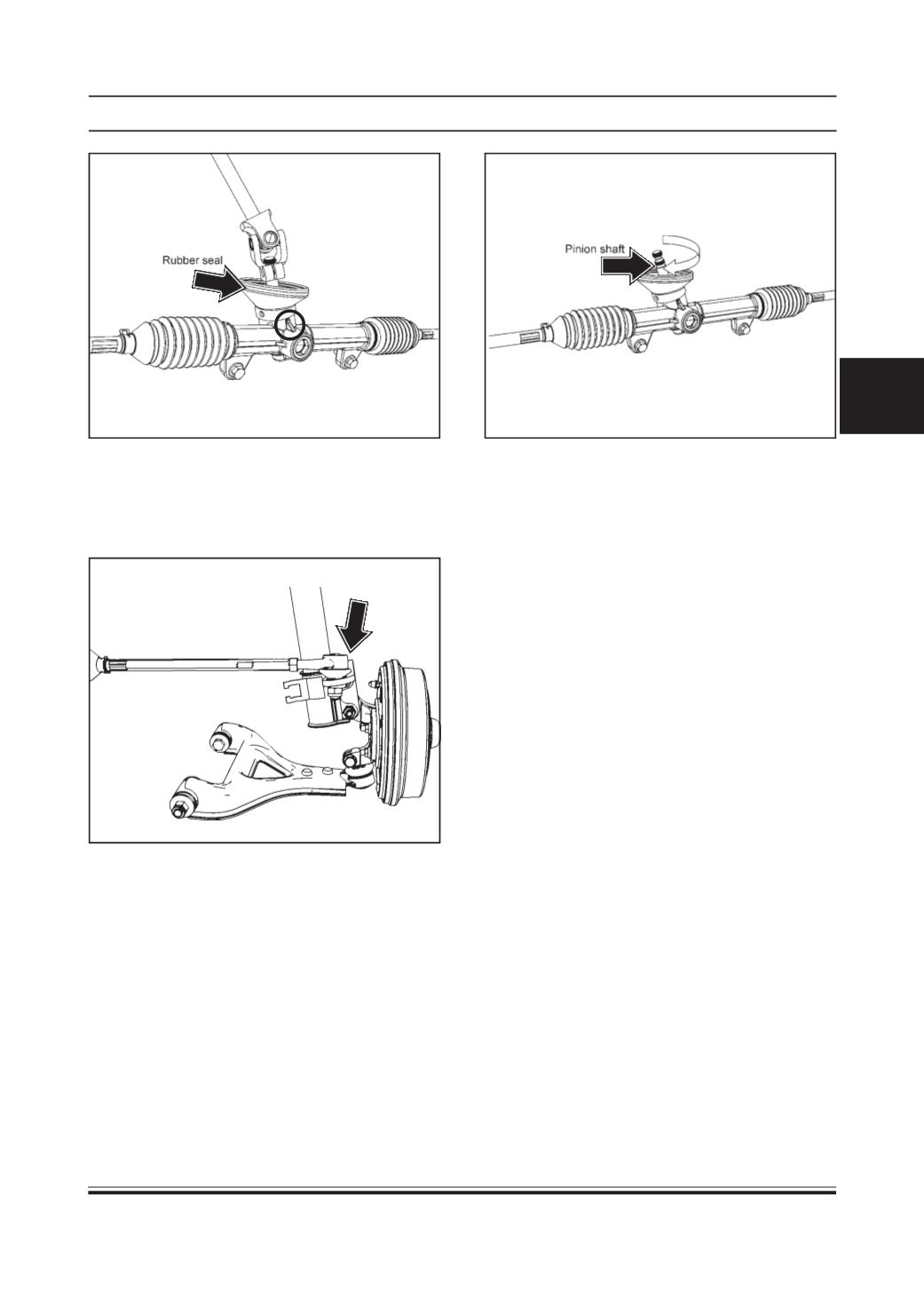

6. While fitting steering rack and pinion assembly,
make sure that there are NO sharp edges or weld
burrs on knuckle otherwise it may cut outer ball
joint assembly. The location of possible area is
shown by arrow in figure.
7. While fitting steering rack and pinion assembly,
check for FREE PINION ROTATING TORQUE
(FPT) (8 - 13 Kg-cm)
8. Whenever a new steering rack and pinion assembly
is to be fitted, always check for FREE movement
of rubber bellow with tie rod i.e. check for grease
application inside rubber bellows on tie rods.
9. Always make sure to CENTRALIZE steering wheel
after replacement.
10.All FASTENERS should be tightened to their
specified torque values.
WARNING :
Do not work on or under a vehicle supported only by a
jack. Always support the vehicle on safety stands.
Groove
