DRIVETRAIN

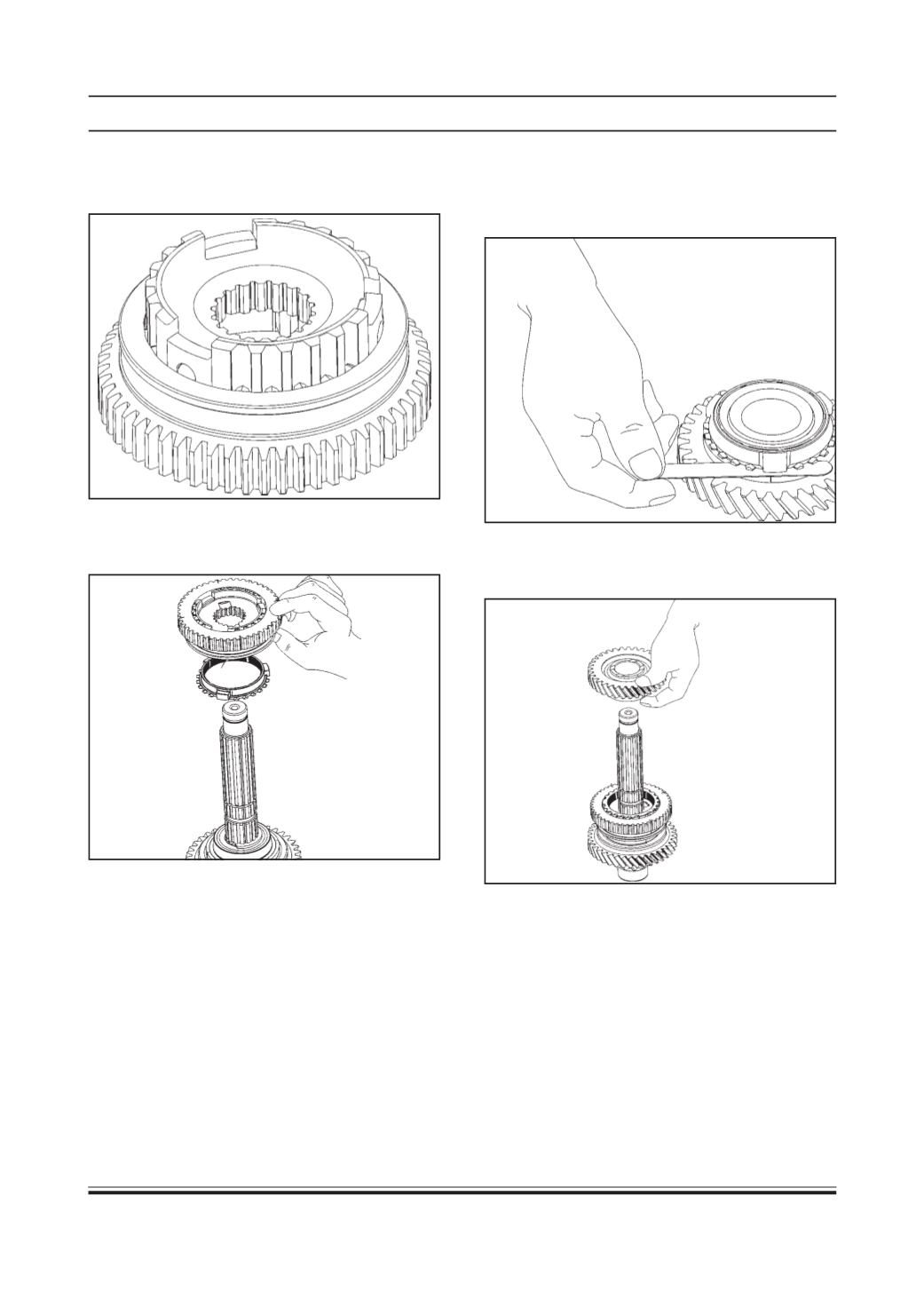

6. Assemble the spring, carrier and ball, along with
the engaging gear into the Shifter Sleeve (1
st
and
2
nd
gear).
7. Place the Shifter sleeve along the engaging gear
assembly on the shaft, on the synchro cone.
Groove is towards First gear side.
8. Place the synchro cone on the second gear and
measure the gap between the second gear and
the synchro cone using a feeler gauge. This gap
should be within 1.15 ~1.40 mm
9. Place the synchro cone first on the shifter sleeve,
with projected side facing downwards and then
place the second gear on it.
