DRIVETRAIN
373
DRIVETRAIN

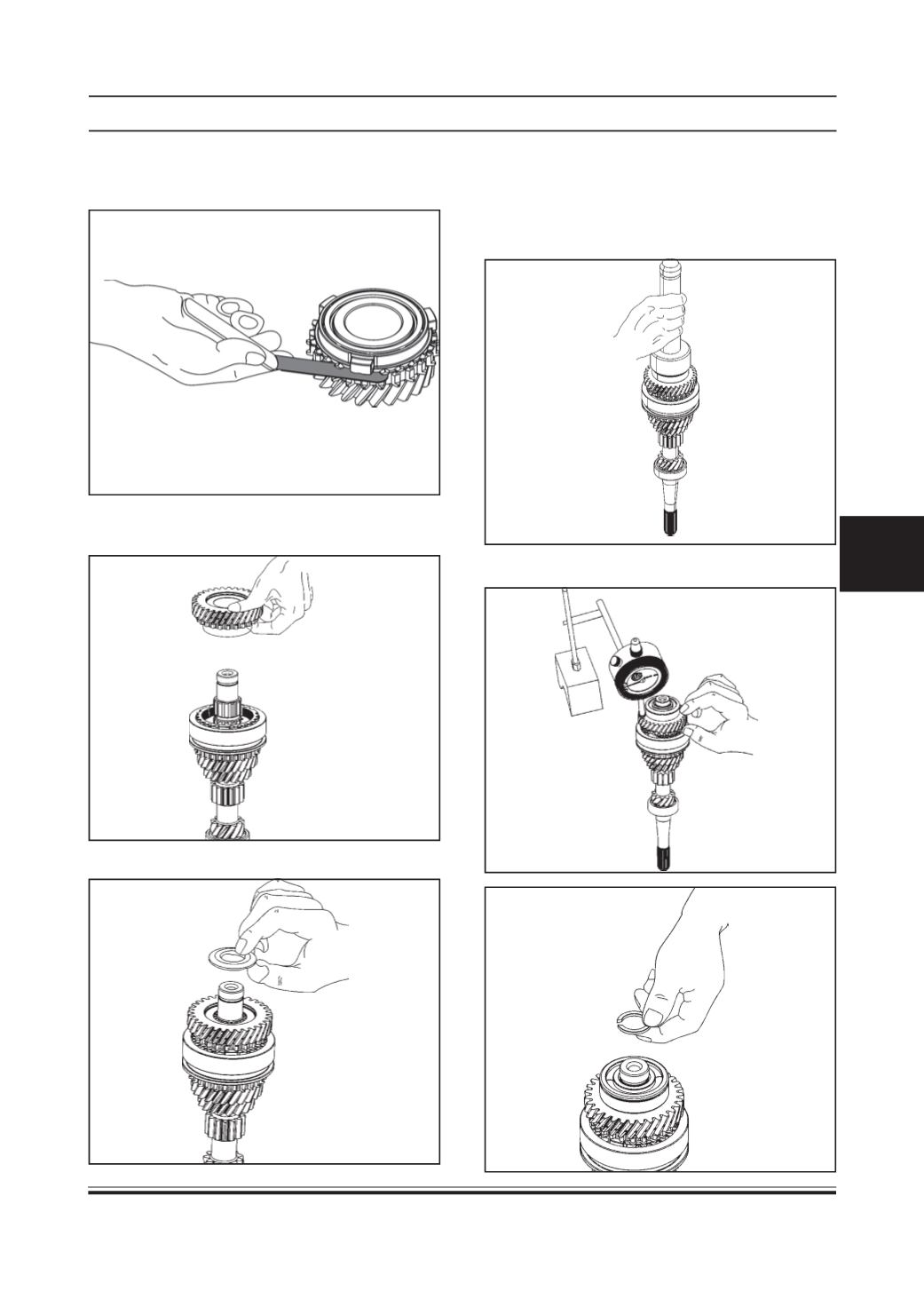

7. Place the synchro cone on the fourth gear and
measure the gap. It should be between 1.15 ~1.40
mm.
8. Place the synchro cone and then place the fourth
gear on it.
9. Place the spacer (input Shaft) on the fourth gear.
10. Fit the rear end ball bearing using the tool 2702
5890 35 04 (Drift for rear hub inner bearing outer
race), such that the snap ring groove is uncovered.
11. Measure the axial float using a dial gauge; float
should be within 0.2 ~ 0.4mm.
12. Fit the snap ring using a suitable drift
