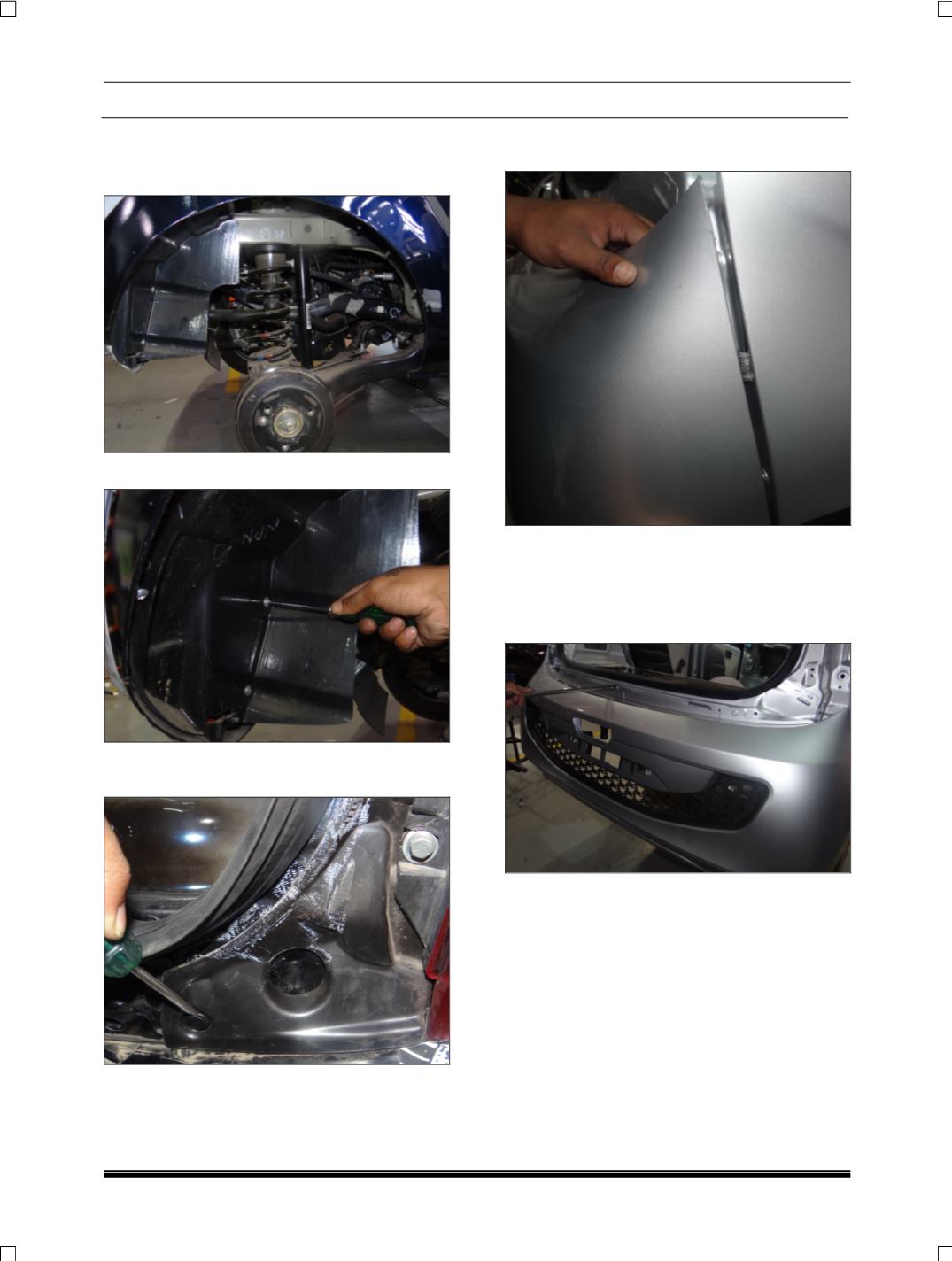

1.3 REAR BUMPER REMOVAL ANDREFITMENT
1. Remove rear wheels by following jacking and
disassembly procedure for wheels.
2. Remove mud flaps by taking out screws.
3. Remove trim at the side of tail lamp fitted on
top of bumper.
4. Remove snap fit from rear bumper on both
sides.
5. Un-torque three bolts on rear end and four
bolts on the both sides of the bumper with the
help of spanner. Take the rear bumper out.
Follow the reverse process for re-fitment of rear
bumper.
