118 / 1428
112
ENGINE 273 MPFI

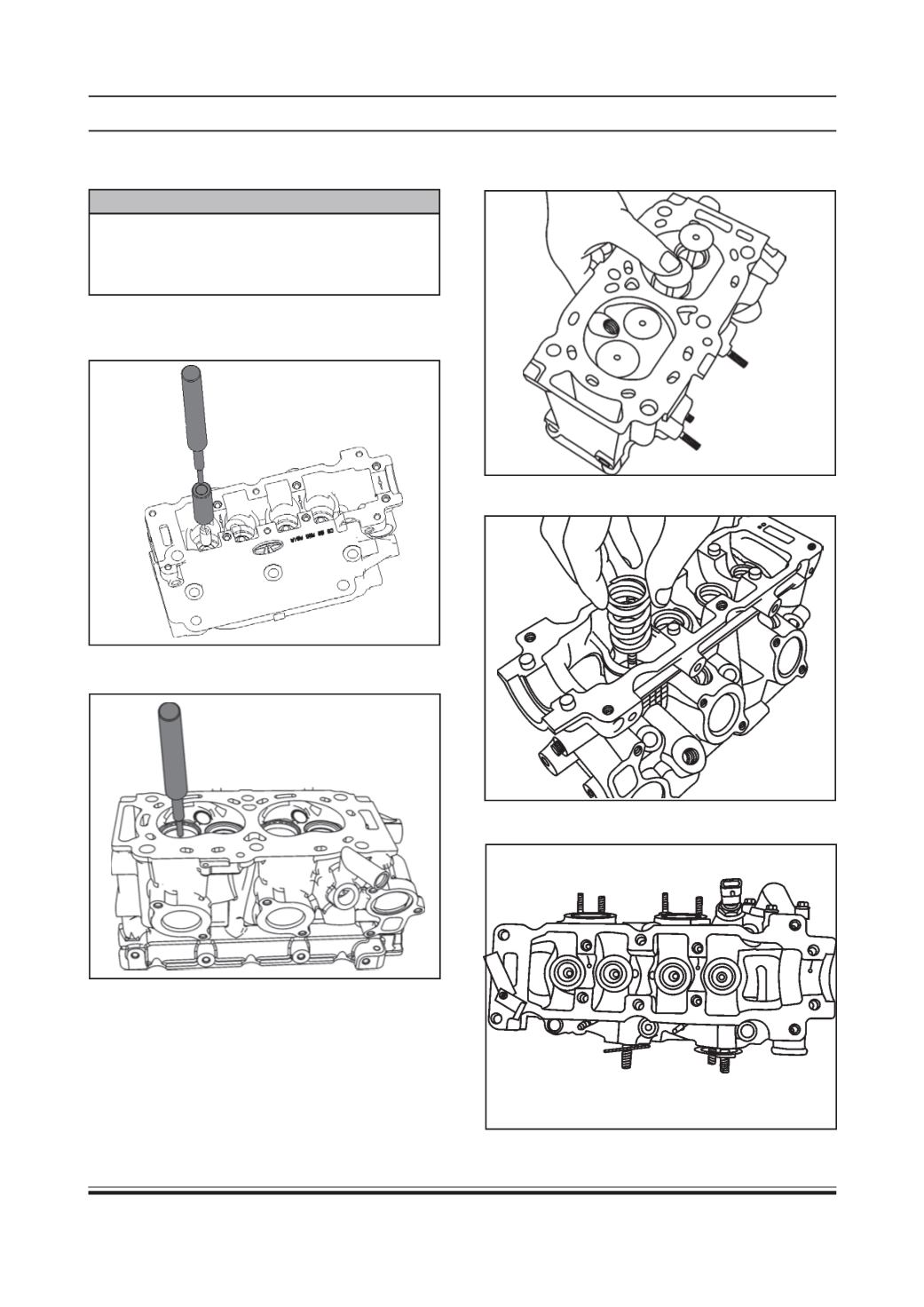

ASSEMBLY OF CYLINDER HEAD
SUB-ASSEMBLIES
NOTE
Please ensure not to reuse cylinder head mounting
bolts and cylinder head gasket once it is dismantled.
Use new cylinder head bolts and gasket during
assembly.
•
Fit the valve guide using spacer – valve guid
e (Part
No. 2834 5890 06 02) along with drift (Part No.2873
5890 04 02)
•
Fit the valve guide oil seals using drift valve guide
seal (Part No. 2834 5890 06 04).
•
Fit the valve spring seats.
•
Fit the valves (intake and exhaust) to their
respective positions
•
Place the valve seal and then valve springs.
•
Place the valve retainers on the top of valve springs.
