ELECTRICALS
192
5.0
TRANSMISSION
INPUT
SPEED
SENSOR REMOVAL AND RE-FITMENT ON
VEHICLE:-
Location:
Clutch speed sensor also known as ‘Transmission
Input Speed Sensor’ is mounted on the
transmission housing.
Function:
The function of ‘TISS’ (Hall Effect based sensor),
senses the transmission input shaft speed as an
input for rotational speed of the clutch.

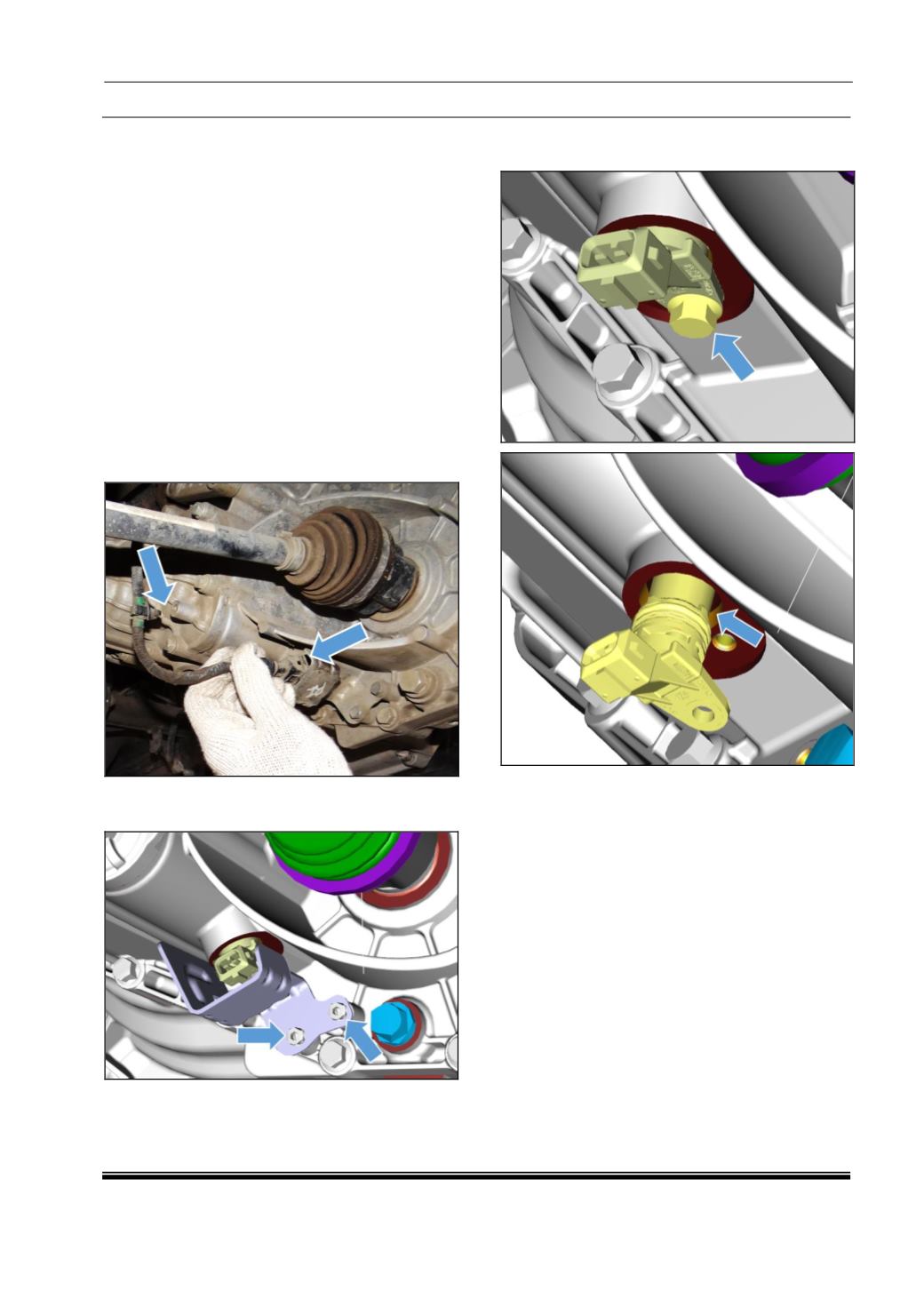

Removal:
1. Pull out wiring harness routed clamp and
disconnect the ‘Transmission Input Speed
Sensor’ wiring harness female connector
carefully from rear half transmission housing.
2. Remove the both cap screws and take the
stone guard bracket.
3. Unscrew the bolt and remove the sensor
carefully.
