NANO VOLUME 1 & 2

TRANSAXLE

147

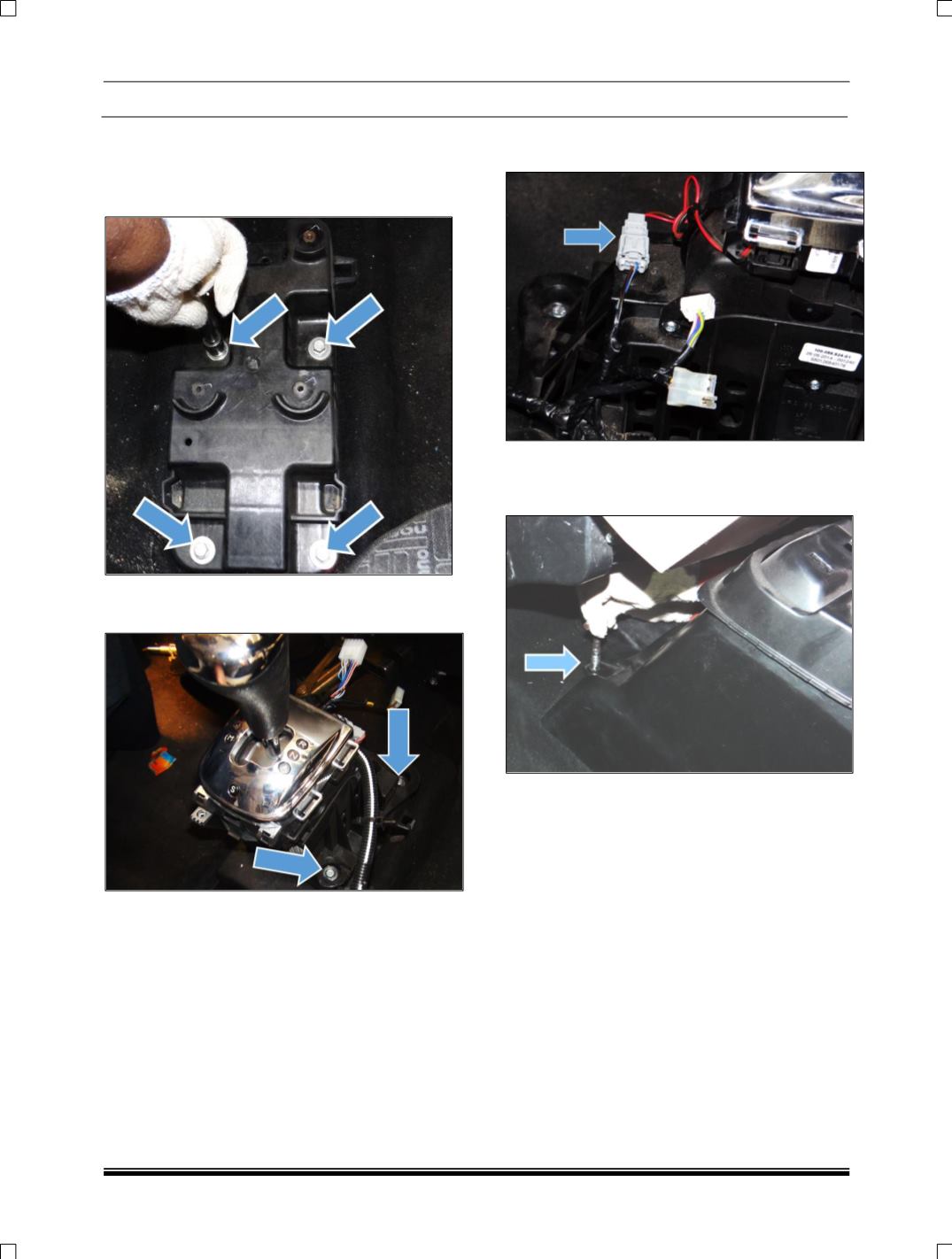

Installation:

1. Tighten screws of adapter for gear shifter

assembly as per the specified torque. (37

Nm).

2. Mount gear shifting unit (AMT) and tighten the

screws as per the specified torque. (23 Nm).

3. Connect the electrical connector of gear

shifting unit (AMT).

4. Install lower base AMT floor console, fix clips

and tighten the screw of center console as per

the specified torque.
