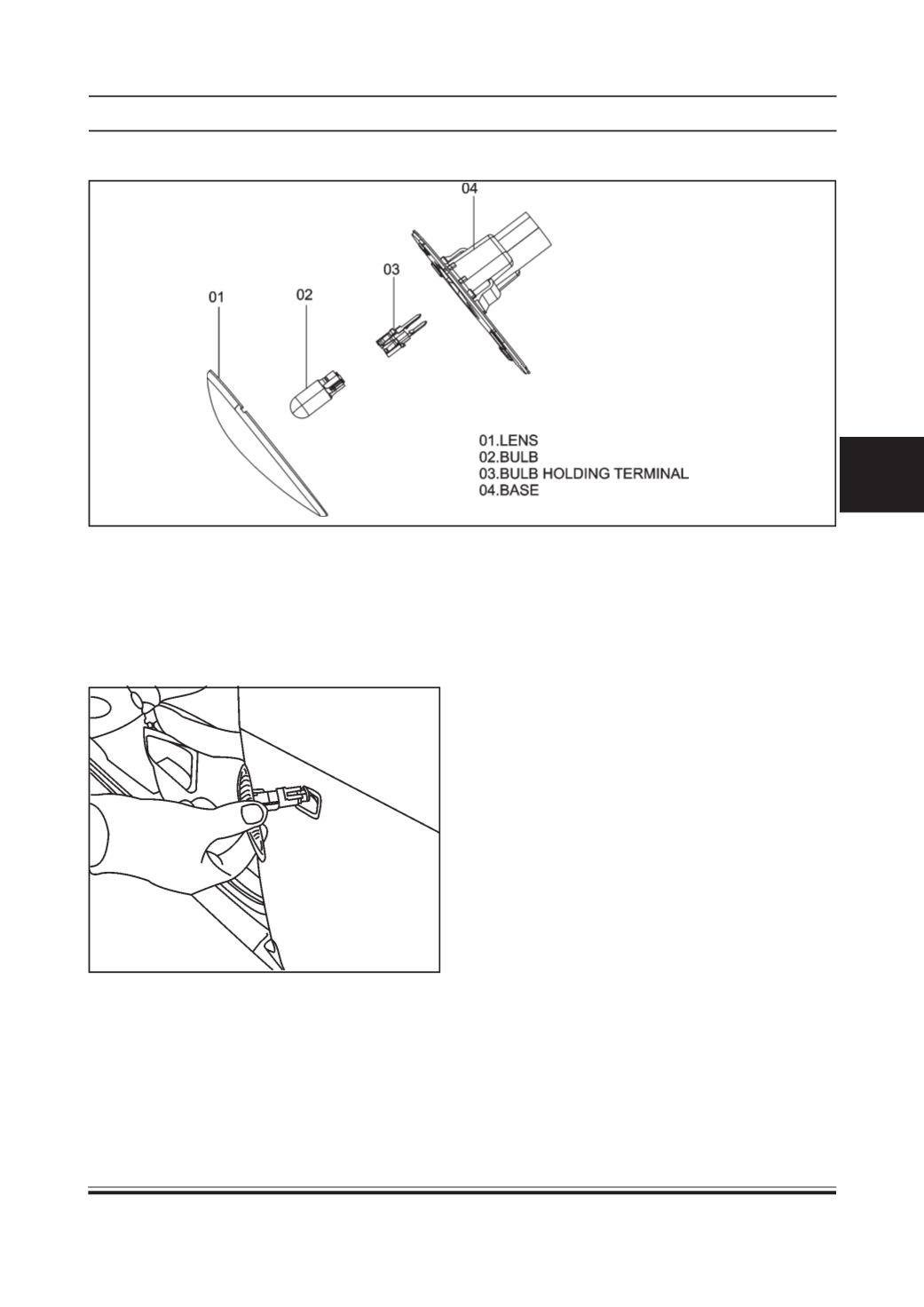

SIDE REPEATER LAMP : EXPLODED VIEW

REMOVAL & REFITMENT OF SIDE REPEATER

LAMP

REMOVAL

1. Pry out the side repeater lamp using plastic wedge.

Disconnect the electrical connector and take out

Lamp.

REFITMENT

1. Connect electrical connector and fit side repeater

lamp assembly.

BULB REPLACEMENT PROCEDURE FOR SIDE

REPEATERLAMP

1. Pull out the snap fitted lens from the assy.

2. Remove the bulb & replace with new one.

3. Push back the lens in its position to snap at all the

four locations on the base.
