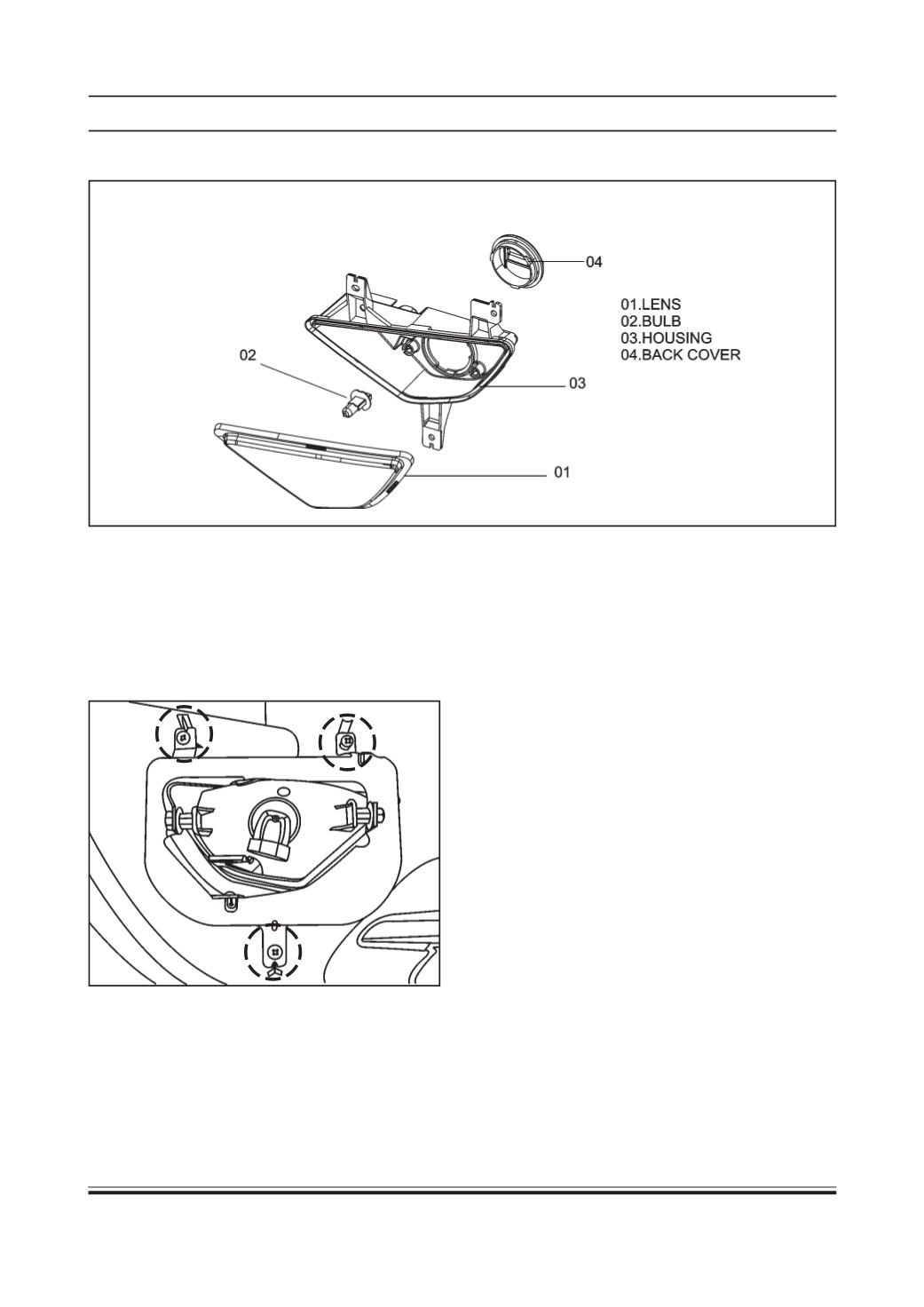

FRONT FOG LAMP : EXPLODED VIEW :

REMOVAL & REFITMENT OF FRONT FOG LAMP

REMOVAL

1. Lift the vehicle on hoist.

2. Disconnect electrical connector

3. Remove three screws securing fog lamp assy. to

the fog lamp bracket.

4. Take out fog lamp assembly.

REFITMENT

1. Align fog lamp assembly on bracket and tighten

two bolts. Connect electrical connector.

BULB REPLACEMENT PROCEDURE FOR FRONT

FOG LAMP

1. Rotate the back cover in anti-clockwise direction.

2. Remove the electrical connection from the bulb.

3. Displace the lock spring from its locking position

to loose the bulb locking.

4. Remove & replace the bulb and put the lock

spring, wire connection & back cover on its

position .
