8.8 WIPER SYSTEM

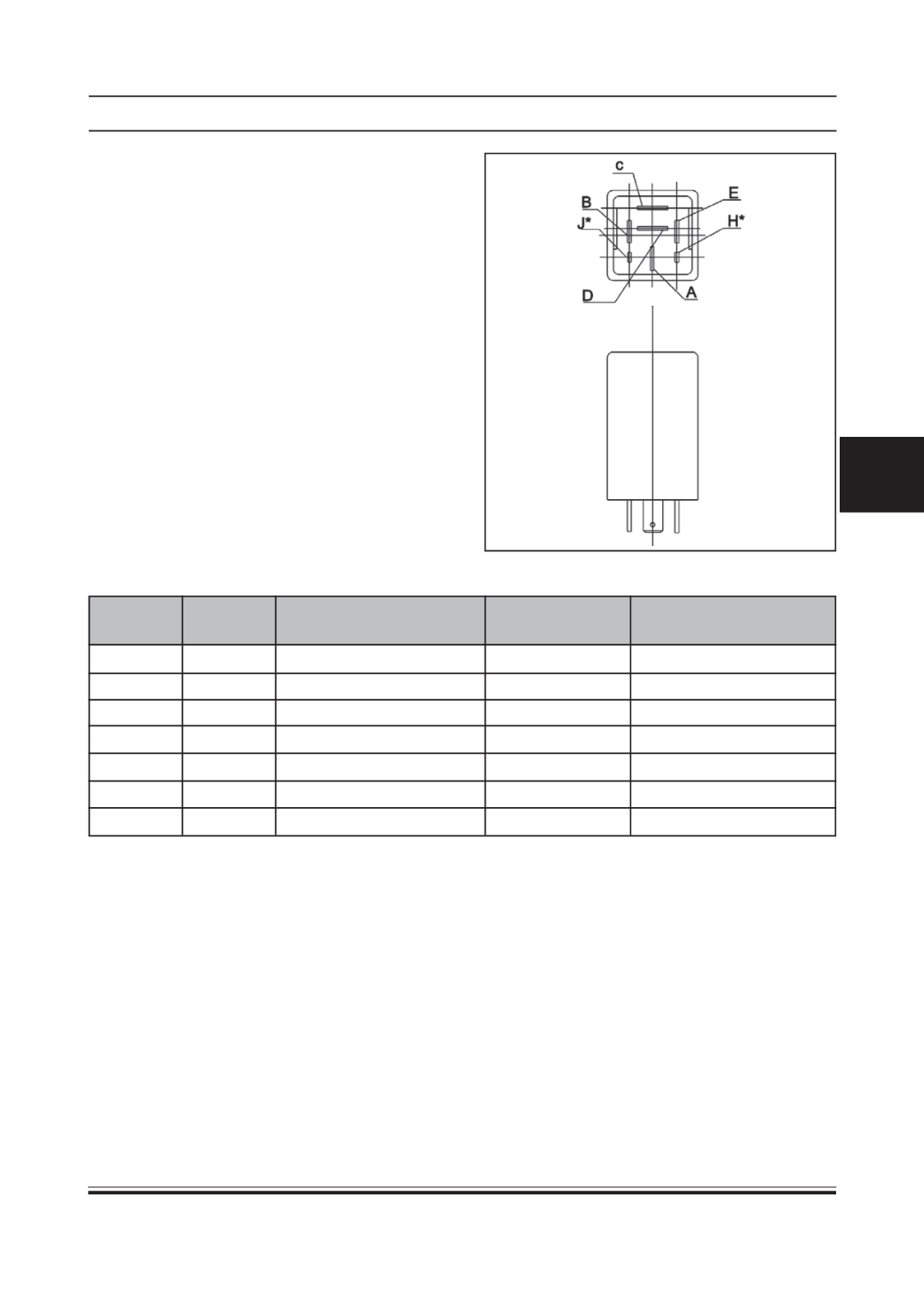

FRONTWIPERCONTROLLER
FUNCTION
It generates the variable time delay during the
intermittent wipe operation of the wipers on the
Vehicles.
LOCATION
It is located inside cabin fuse box.
CONNECTIONDETAILS:
TERMINAL TERMINAL DESCRIPTION
ACTIVE LEVEL
CONDITION
NAME
TYPE
H
Input
Water level sense
GND
Water level low
J
Input
Combi switch - wash
VCC
Switch operated
D
Input
Combi switch - intermittent
VCC
Switch operated
C
Input
Wiper motor park Sw. A
VCC/GND
Wiper moving/Wiper park
B
Input
Wiper motor park Sw. B
VCC
I/G position
E
Input
Ground To Unit
GND
Permanent
A
Input
Park to combi switch
VCC
—
For more details refer circuit schematics section
