REMOVAL & REFITMENT OF REAR FOG LAMP

REMOVAL

1. Remove rear bumper. (Refer “REMOVAL &

REFITMENT OF REAR BUMPER” from Body

section).

2. Disconnect the electrical connector.

3. Remove two screws and take out rear fog lamp

assembly.

REFITMENT

1. Fit two screws of rear fog lamp. Connect electrical

connector.

2. Fit rear bumper.

BULB REPLACEMENT PROCEDURE FOR REAR

FOG LAMP

1. Rotate the bulb holder in anti-clockwise direction.

2. Replace the bulb.

3. Position the bulb holder back.

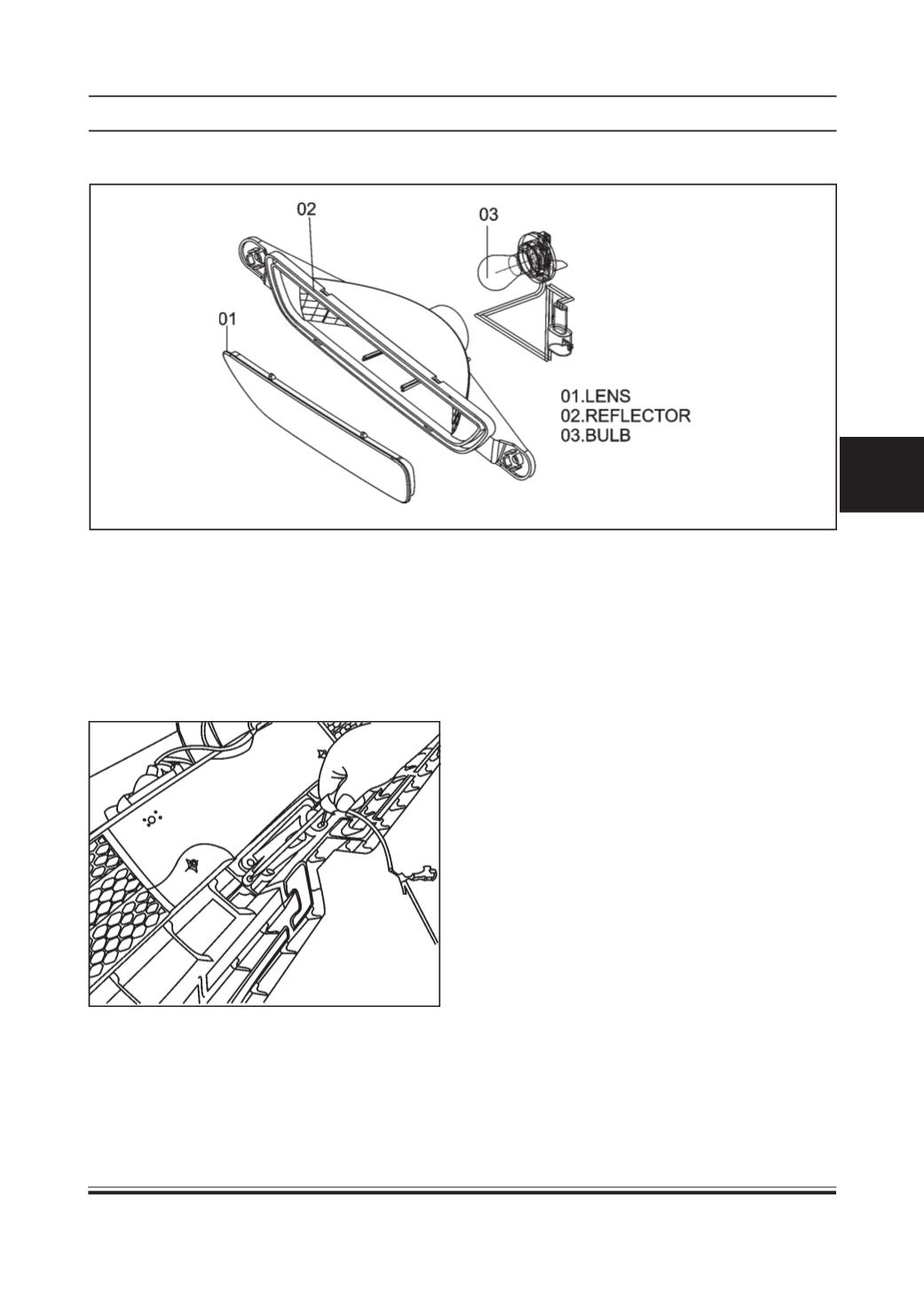

REAR FOG LAMP : EXPLODED VIEW
