ELECTRICAL

637

ELECTRICAL

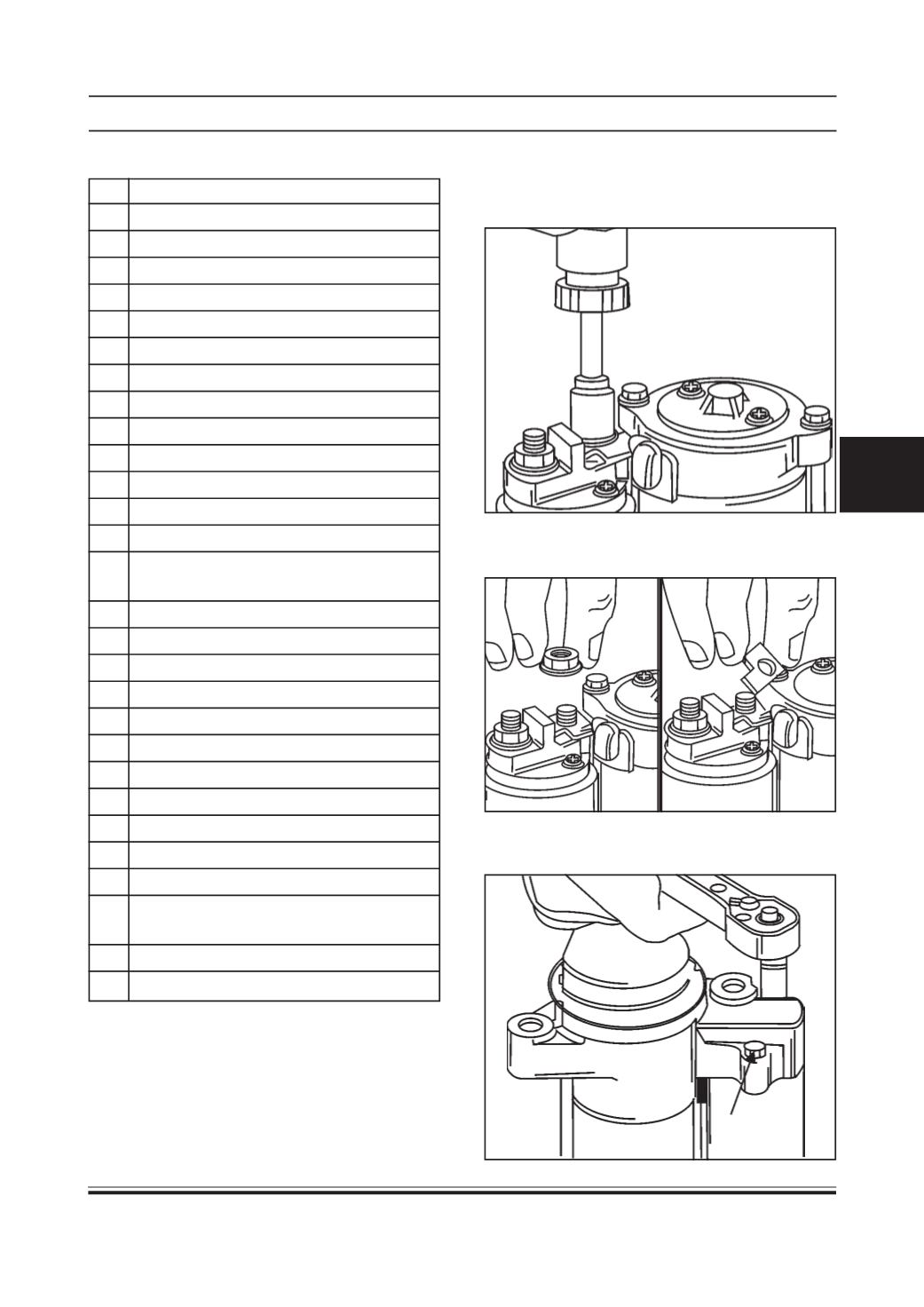

3) Unscrew the 2 nos. screw from the Solenoid switch

assembly.

PART LIST

1 PLUNGERASSEMBLY

2 PLUNGERRETURN SPRING

3 SOLENOIDASSY

4 FIXING BRKTASSY

5 DRIVE ASSY

6 ENGAGING LEVER

7 ANNULUS

8 PLANETARY GEAR ASSY

9 OUTPUT SHAFTASSY

10 ARMATUREASSY

11 BRUSH GEAR ASSY

12 C. E. BRKT ASSY

13

FASTENERS KIT

14 FLANGE NUT (BAT. TERMINAL)

15 FLANGE NUT (STR. TERMINAL)

16 FLANGE NUT (SOL. TERMINAL)

17 FIXINGSCREW (SOLENOID)

18 JUMP RING

19 THRUSTCOLLAR

20 PIVOT PLATE

21 BALL

22 FIXINGSCREW (BGFIXING)

23 THROUGHBOLT

24

SEALING KIT

25 GROMMET (FIX. BRKT)

26 PACKING (ANNULUS)

27

BEARINGBUSH KIT

28 BEARING BUSH (FIXING BRACKET)

29 BEARING BUSH (OUTPUT SHAFT)

30 BEARING BUSH (CE BRACKET)

31 STARTERMOTORASSEMBLY

B. DIS-MANTLING

1) Unscrew the Starter Terminal nut from the

solenoid switch.

2) Remove the Nut and Lead assembly from the

solenoid switch.
