ELECTRICAL

643

ELECTRICAL

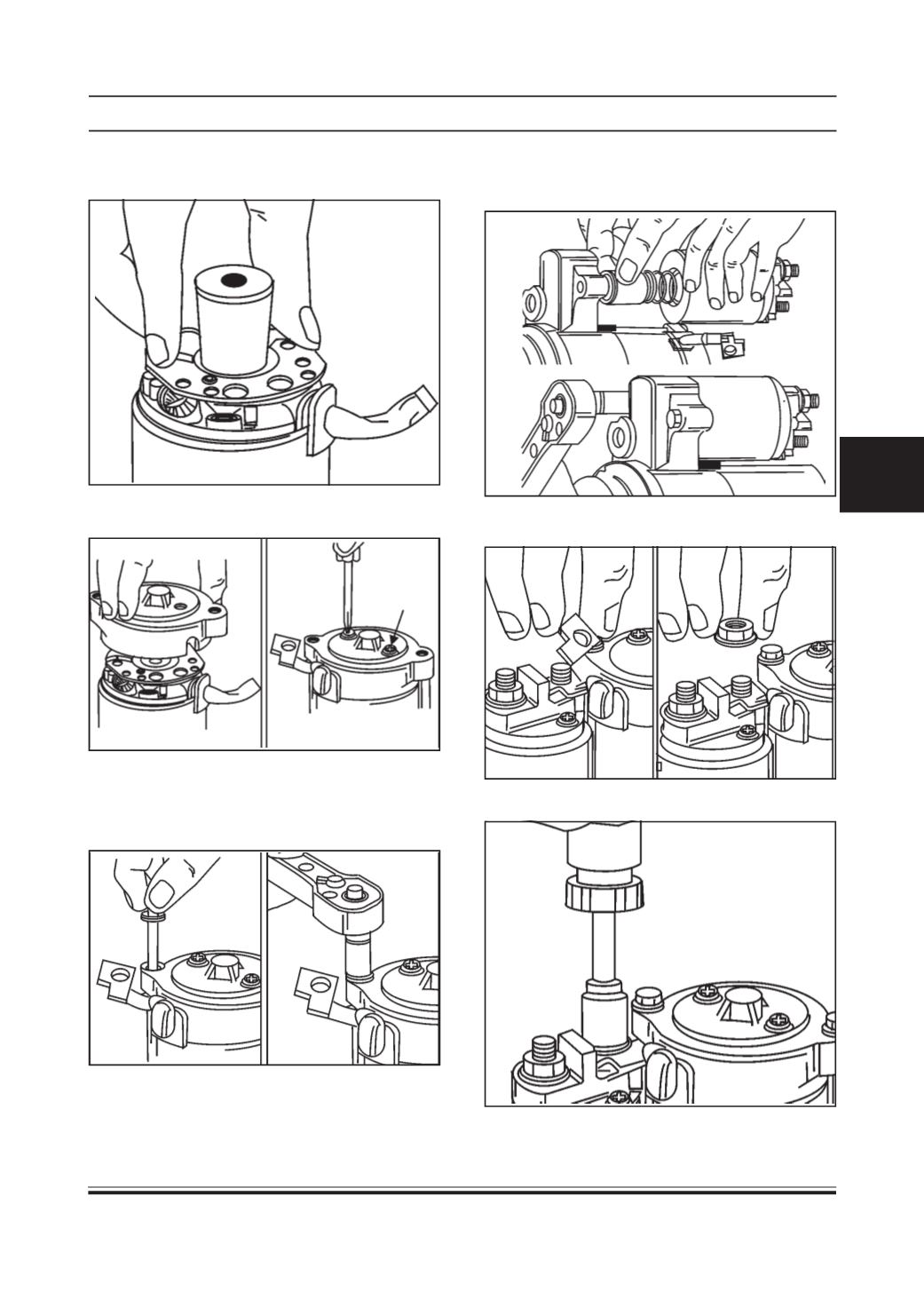

9) Then fix through bolt (2 Nos.) and tighten

NOTE:

While servicing the brush gear assy. please

ensure that new brush springs to be replace.

(Especially in burnt Starter Motor)

7) Assembly the Brush gear assembly into the

commutator ends. By using Bullet as shown in fig.

8) Assembly the CE bracket assembly and insert

the BG fixing screw (2 Nos.).

10) Assemble solenoid & two fixing screws. Ensure

that solenoid is assembled in the engaging lever

assembly.

11)Assemble the lead assembly & nut into the solenoid

switch.

12) Tightening of the Starter Terminal nut.
