ELECTRICAL
633
ELECTRICAL

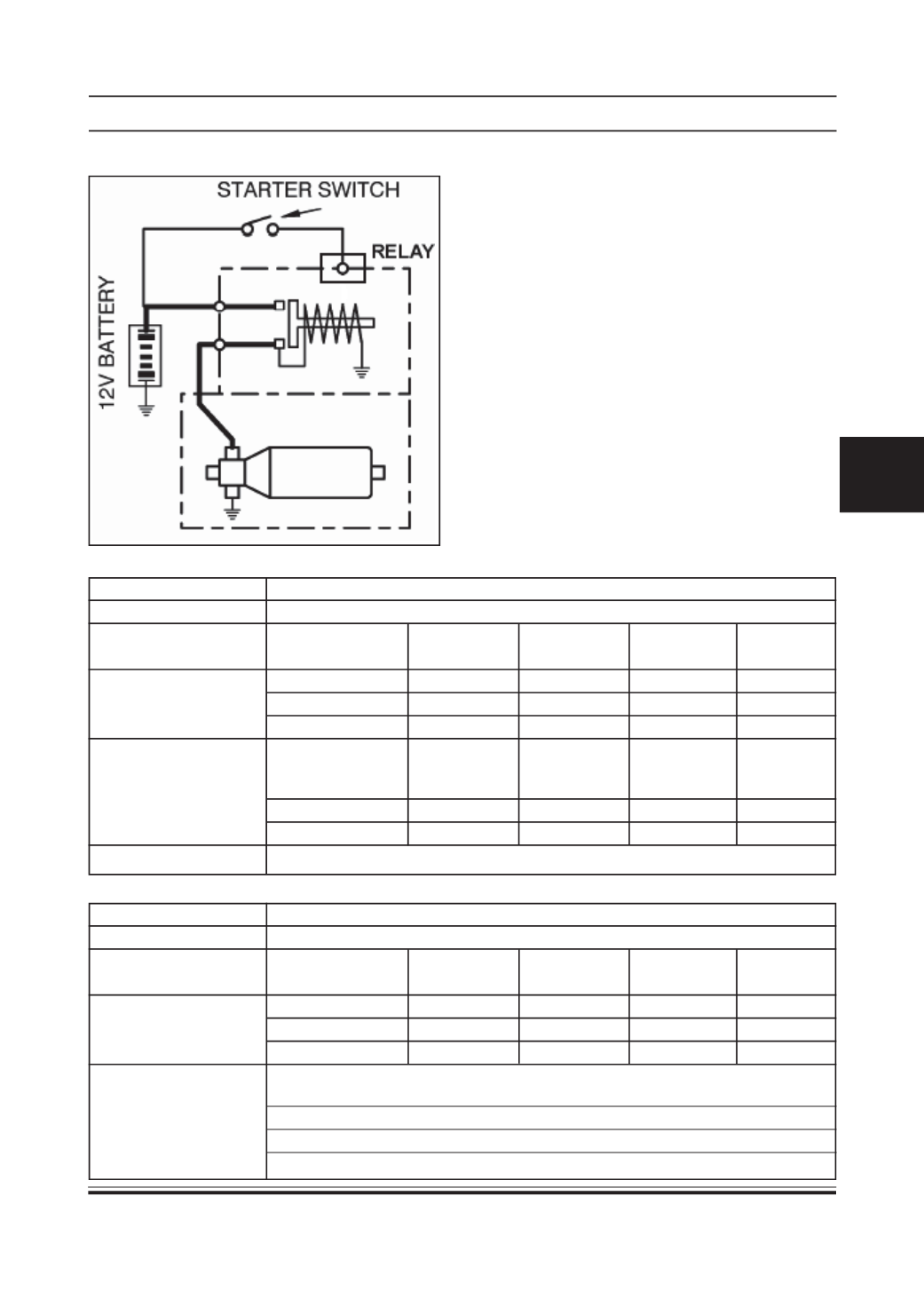

5. CONNECTION DIAGRAM
6A. SPECIFICATIONS
NOMINALOUTPUT 0.8 Kw MINAT 20 mOhms BATTERY LINE
ENGAGING SYSTEM PRE-ENGAGED DRIVE
CONDITION VOLTAGE CURRENT TORQUE SPEED
(VOLTS)
(AMPS)
(Nm)
(R.P.M)
NO LOAD
5 V
70MAX
------------
4100MIN
LOAD
10 V
115MAX 0.7 N.mMIN 3500MIN
LOCKED
2.8 V
460MAX
10 MIN ------------
OPERATIONOF
PULL IN
SOLENOIDSWITCH When pinion travel
8 V
30MAX
N/A
N/A-
restricted at 2.5 mm 12 V
45MAX
DROP OFF 0.5 MAX 15V
N/A
N/A
N/A
HOLDON
N/A
10MAX
N/A
N/A
WEIGHT
2.45 Kg (APPROX)
PERFORMANCE
SPECIFICATIONAT
+ 20
0
C
6B.
NOMINALOUTPUT 1.0 Kw MINAT 15 mOhms BATTERY LINE
ENGAGING SYSTEM PRE-ENGAGED DRIVE
CONDITION VOLTAGE CURRENT TORQUE SPEED
(VOLTS)
(AMPS)
(Nm)
(R.P.M)
NO LOAD
11.5 V
70MAX
N/A
4100MIN
LOAD
10.2 V
115MAX 0.7 N.mMIN 3700MIN
LOCKED
3.2 V
590MAX
12 MIN
N/A
OPERATIONOF
1. PULL IN VOLTAGE BY
SOLENOIDSWITCH
WHEN PINION TRAVEL RESTRICTEDAT 2.5 mm
2. PULL INCURRENT
: 45AMAX. (AT 12.0 VOLTS)
3. DROPOFF VOLTAGE : 30AMAX. (AT 8 VOLTS)
4. HOLDONCURRENT : 10AMAX.
PERFORMANCE
SPECIFICATIONAT
+ 25
0
C
