STEERING

CAUTION :

Care should be taken such that self cancellation lugs

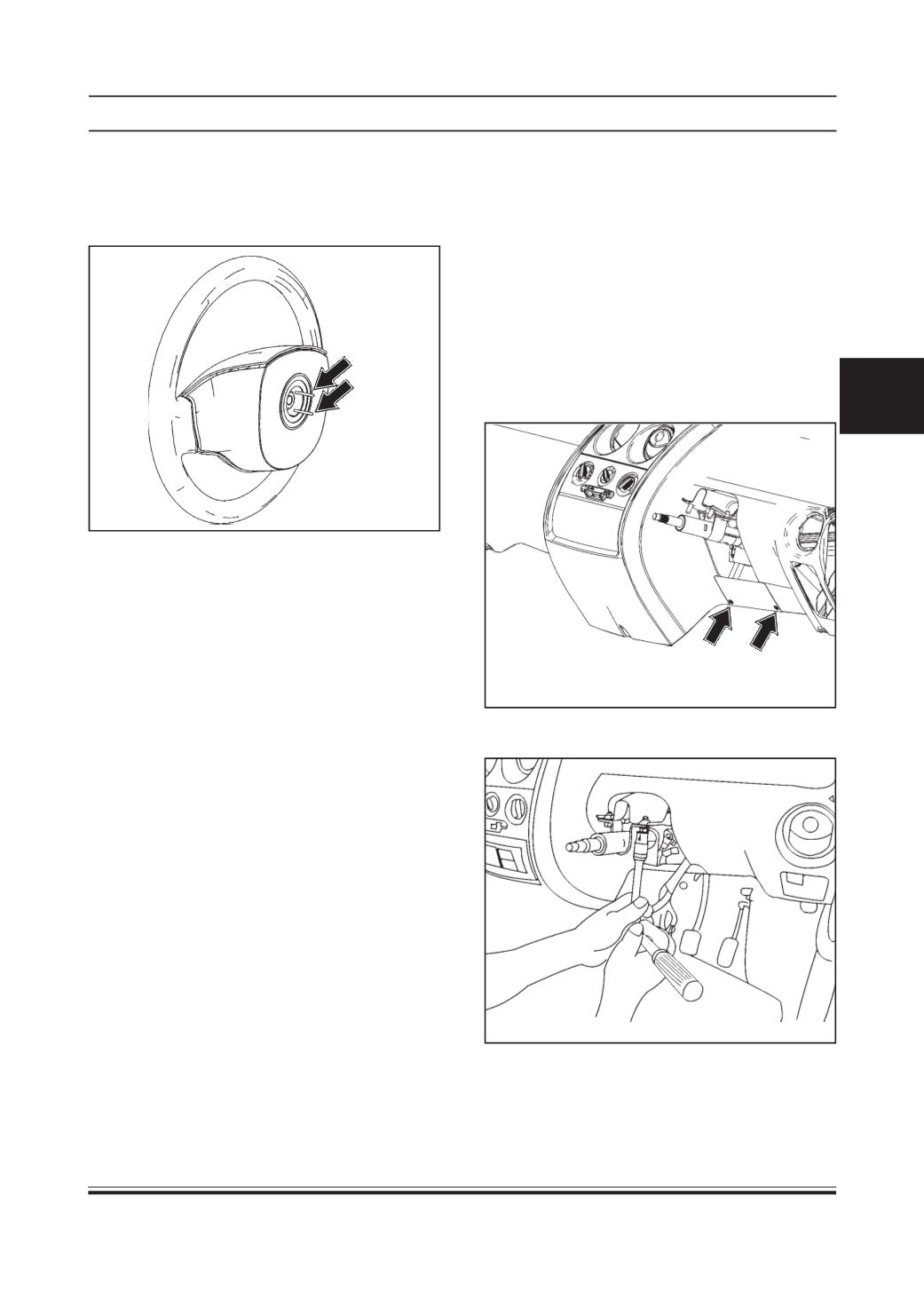

do not get damaged (self cancellation lugs are shown

in below figure with arrows)

Inspection :

1. Check for any damage to self cancellation lugs, if

found, replace complete steering wheel.

Installation :

1. Align the marks made on the steering wheel and

the shaft. Install steering wheel on steering shaft.

2. Tighten the steering wheel nut to the specified

torque.

TIGHTENINGTORQUE FORSTEERINGWHEEL

NUT = 8.6 ± 0.2 Kg-m

3. Fit horn pad (Press fit type)

4. Connect battery.

STEERING COLUMN ASSEMBLY

Removal :

1. Disconnect battery.

2. Remove steering wheel (Refer steering wheel

removal procedure)

3. Remove combi switch assembly. (Refer combi

switch assembly removal / Body Electrical group)

4. Remove ignition switch assembly. (Refer ignition

switch assembly removal procedure/ Body

Electrical group)

5. Remove two screws of nacelle bottomcover.

6. Remove four nuts of steering column assembly.
