NANO

DRIVETRAIN

375

DRIVETRAIN

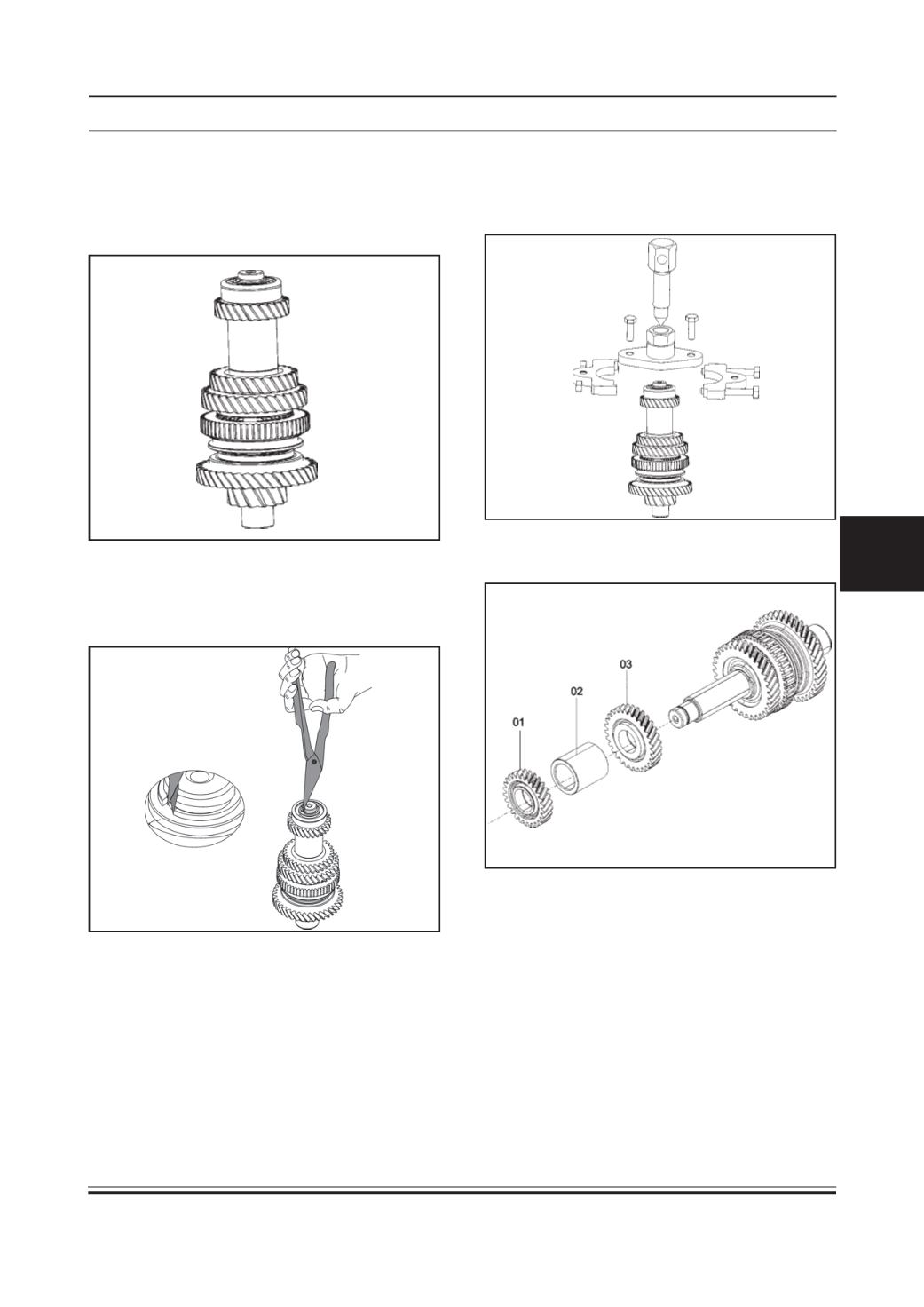

LAYSHAFTASSEMBLY

A. DISMANTLING

3. Remove the rear end ball bearing using the tool

no. 2834 5890 26 04 PULLER FOR REMOVAL

OF REAR BRG. FROM INPUT SHAFT &

LAYSHAFT.

4. Remove the fourth gear wheel (01), Spacer (02)

and the Third gear wheel (03).

1. Hold the Layshaft in a bench vice such that the

rear half side is on the top.

NOTE :

To ensure that the gears/ splines do not get

damaged by the vice jaws, pad it with wooden pieces

or any other softer material.

2. Remove the snap ring using a circlip plier.

Note:

•

Do not reuse the circlip.

•

Replace the circlip with a new one of the same

thickness during assembly.
