NANO

DRIVETRAIN

377

DRIVETRAIN

C. ASSEMBLY

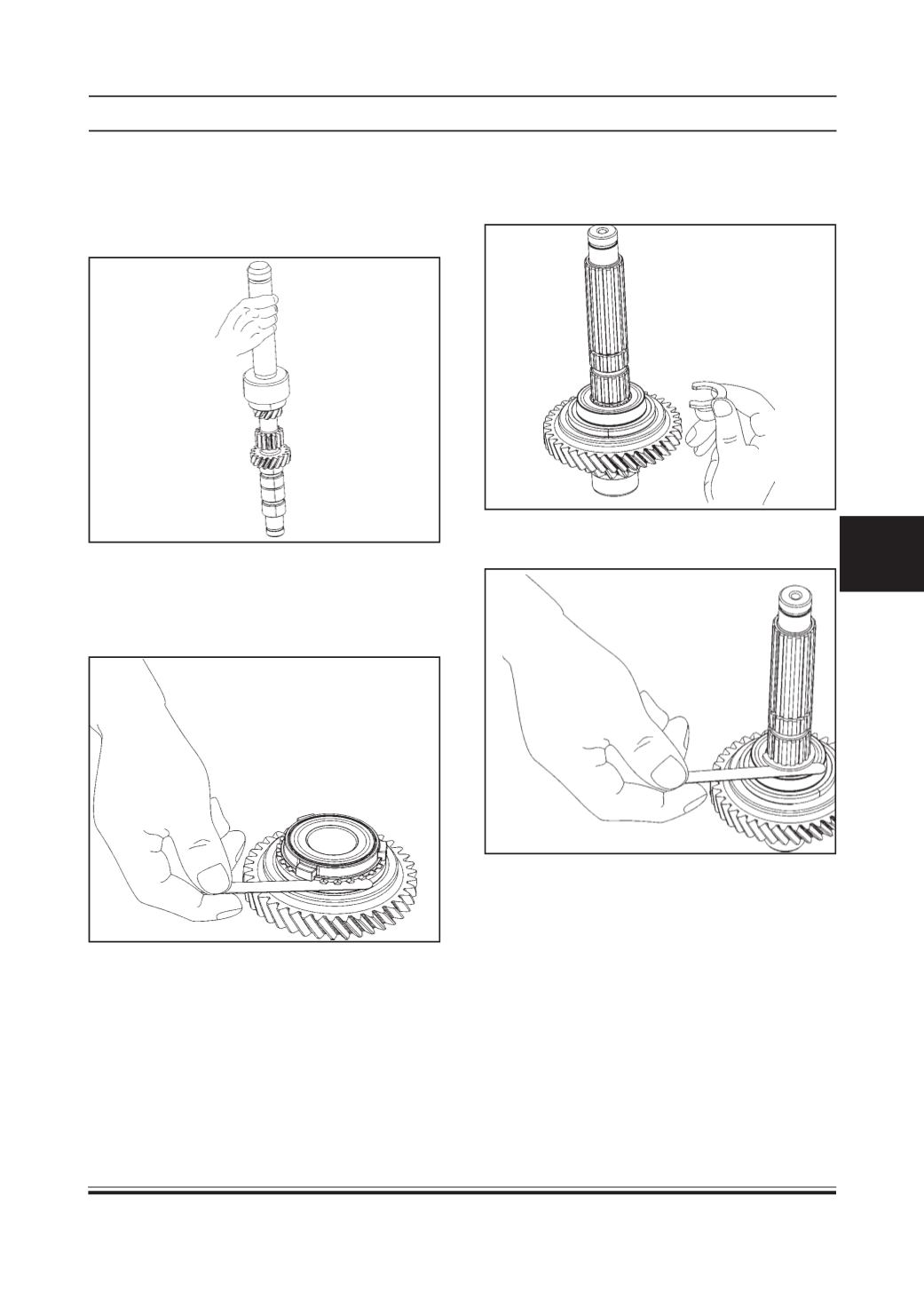

1. Place the layshaft upright and fit the inner bearing

race unto it in the front half side of the shaft using

a suitable 2702 5890 35 04 (Drift for rear hub inner

bearing outer race), .

2. Place the synchro cone on the First gear as

shown in fig, with the projection on cone facing

upwards and measure the gap between synchro

cone and first gear using a feeler gauge. This gap

should be within 1.15 ~1.40 mm.

3. Remove the synchro cone from the first gear; place

the first gear on the lay shaft and fit the circlip in

the slot.

4. Check the gap between the circlip and the first

gear, it should be within 0.2 ~ 0.4 mm.

5. Now place the synchro cone on the first gear with

the projection on cone facing upwards.
