NANO

ENGINE 273 MPFI

111

ENGINE

Valve Springs:

•

Check that each spring is in sound condition, free

of any evidence of breakage or weakening. Remem-

ber, weakened valve springs can be the cause of

chaffer, not to mention the possibility of reducing

the power output due to gas leakage caused by

decreased seating pressure.

•

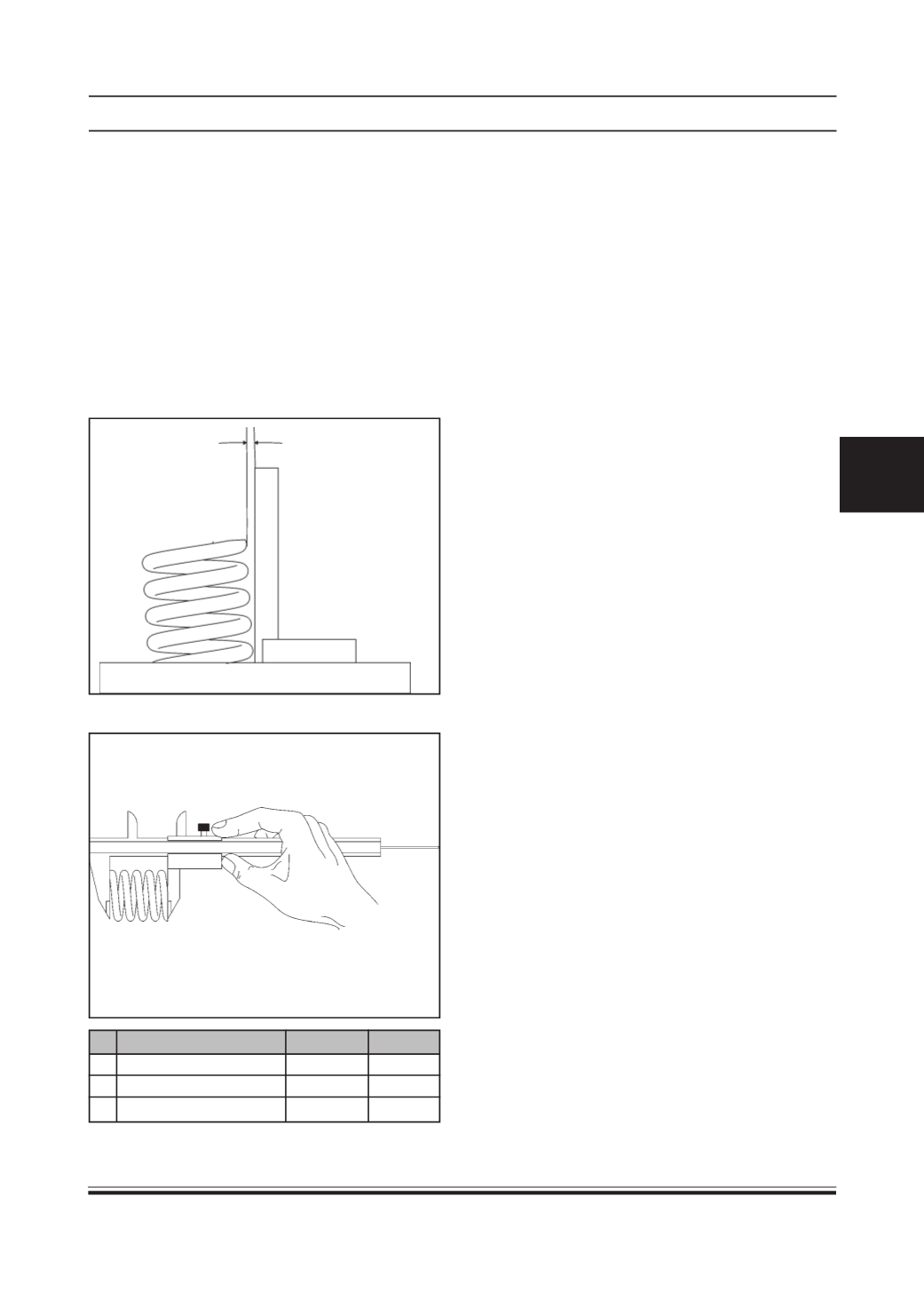

Spring Squareness:

Use a square and surface plate to check each

spring for squareness in terms of the clearance

between the end of valve spring and the square.

Valve springs found to exhibit a larger clearance

than the limit must be replaced.

spring squareness

limit

VALVESPRINGFREELENGTHMEASURMENT

•

Check valve spring free length.

Sr.

Item

Std value Limit

1. Valve spring free length 41.15 mm 40.15mm

2. Valve spring preload(Kg) 24 mm 23 mm

3. Spring squareness limit

1.3 mm 2 mm
