ENGINE

Sr. Item

Specified Limit of

Value (in mm) distortion

(in mm)

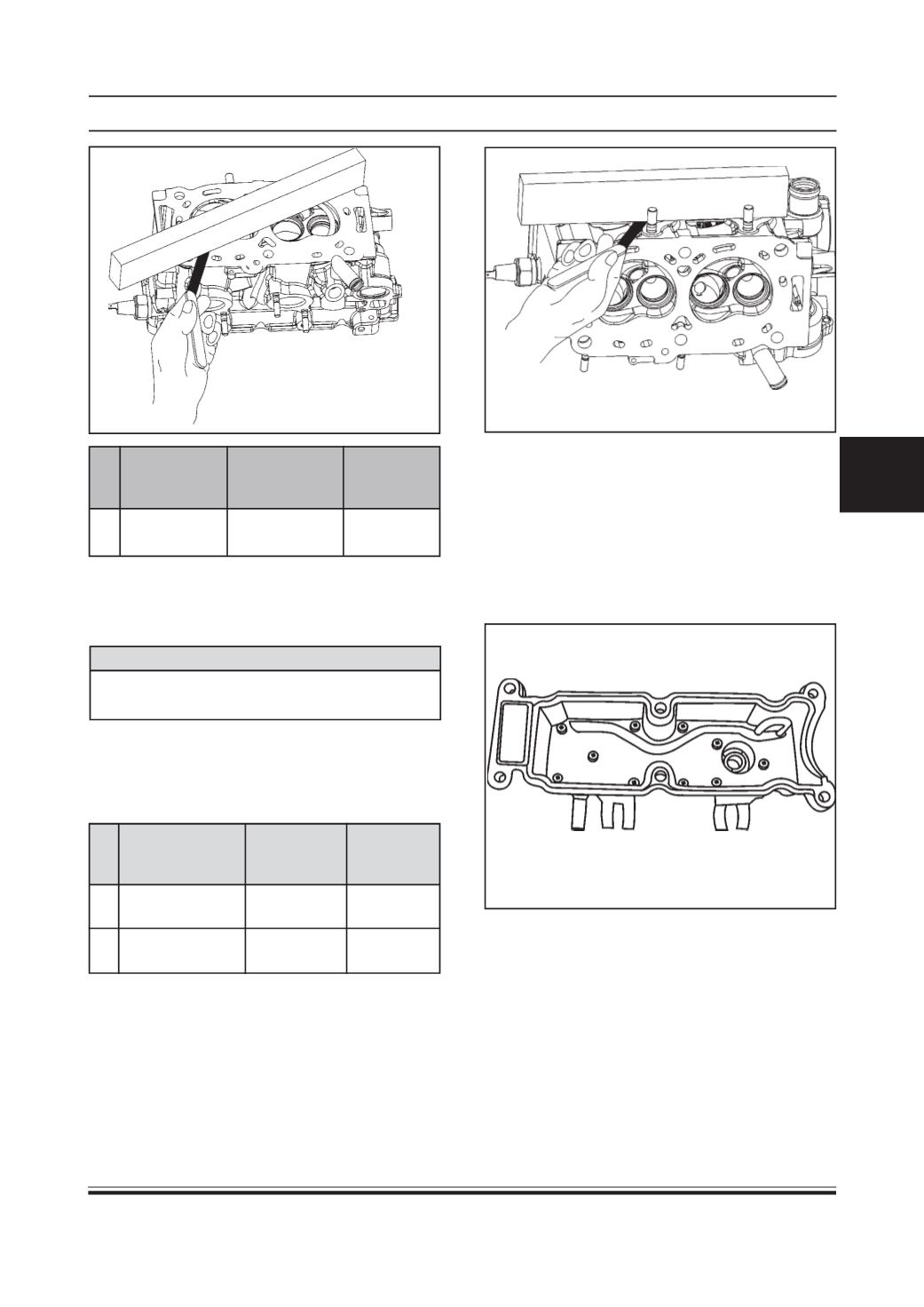

1. Distortion of

0.02

0.05

gasket surface

Leakage of combustion gases from this gasketed joint

is often due to warped gasketed surface; such leakage

results in reduced power output and hence a higher

cost of fuel per kilometer.

NOTE

Cylinder head top surface machining is not

permitted.

Distortion of manifold seating faces :

Check the seating faces of cylinder head for manifolds,

using a straightedge and thickness gauge, in order

to determine whether these faces should be corrected

or the cylinder head re placed.

Sr. Item

Specified Limit of

Value

distortion

(in mm)

1. Exhaust manifold 0.03

0.1

seating surface

2. Intake manifold

0.03

0.1

seating surface

Cylinder head cover:

Remove the baffle plate in the cylinder head cover by

removing the screws.

Check the baffle plate gasket, if it is torn/damage

replaces it; otherwise it might result in high engine oil

consumption.

Check the condition of cylinder head cover gasket.

Replace if required.

Before opening cylinder head cover baffle plate, check

for leakage @ 0.2 bar air pressure.
