NANO

ENGINE 273 MPFI

115

ENGINE

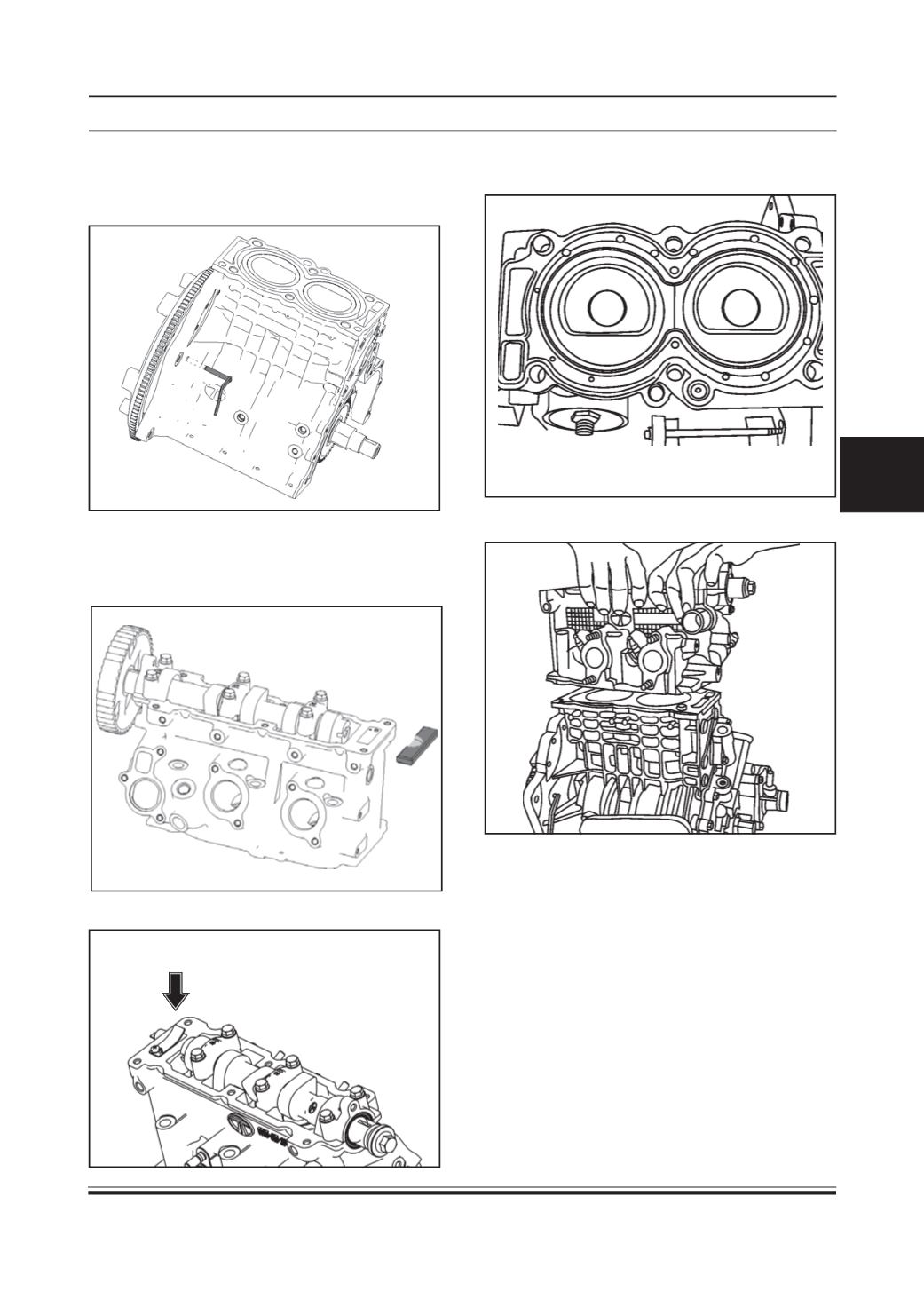

Refitment Of Cylinder Head On Cylinder Block:

•

Lock the flywheel with the “flywheel locking pin”

(Part No. 2834 5890 06 14).

•

Rotate camshaft and bring valve of 1st cylinder to

compression TDC position by orienting the slot to

horizontal and upside position by using camshaft

locking plate (Part No. 2834 5890 06 20).

•

Assemble reed plate

•

Place the cylinder head gasket on the top of cylinder

head.

•

Place the cylinder head on the block.

•

Tighten the cylinder head mounting bolts to the

specified torque as per the tightening sequence

and procedure as shown below.

•

Steps to tighten cylinder head bolt, M10 X 118L

(Applicable for hand tightening).

1. Use all fresh bolts & washers along with a fresh

gasket

2. Check the bolt collar seating surface on the

cylinder head. It should be clean and not

deformed.

3. Torque 1 Kg-m to all bolts as per sequence

4. Torque 3 Kg-m to all bolts as per sequence
