ELECTRICAL
103
ELECTRICAL

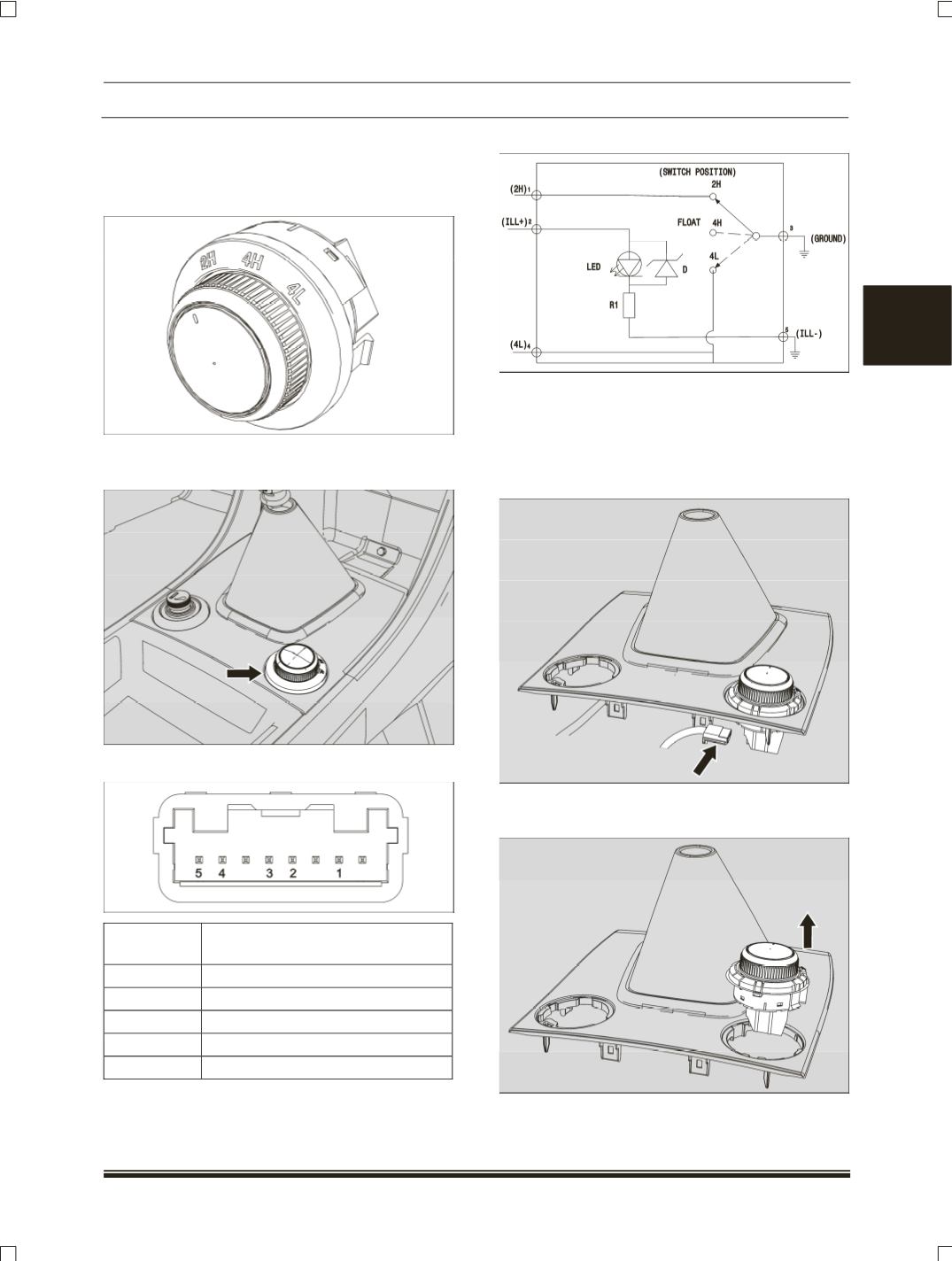

8.10.8 TRANSFER CASE SWITCH:
FUNCTION:
Transfer case switch allows the driver
to electrically shift the vehicle driving mode from
4x2 or 4x4H or 4x4L.
LOCATION:
It is fitted on floor console gear shifter
bezel assembly.
CONNECTOR DETAILS:
SR. NO.
DICSCRIPITION
1
2H
2
ILL + ve
3
Ground
4
4L
5
ILL - ve
CONNECTION DETAILS:
REMOVAL:
1.Remove Floor console gear shifter bezel
assembly (
Refer body section
).
2.Disconnect the electrical connection of transfer
case switch
3.Pry out the transfer case switch from the floor
console gear shifter bezel.
REFITMENT:
