ELECTRICAL

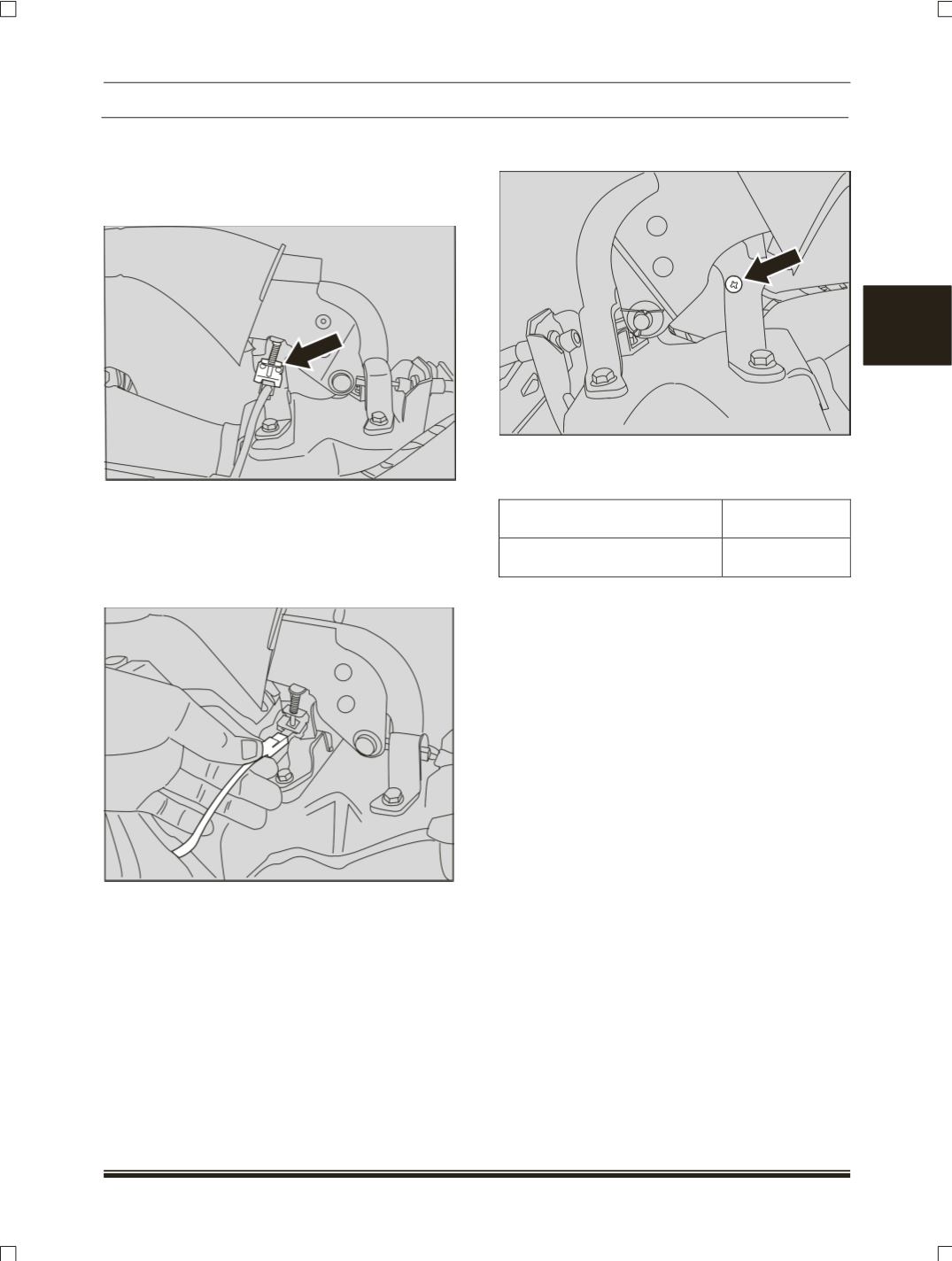

8.10.11 HAND BRAKE SWITCH
FUNCTION:
It gives signal to the instrument
cluster regarding the position of Hand brake Lever.
LOCATION:
It is fitted on parking brake bracket.
REMOVAL
1. Remove the floor console.
(Refer Procedure
from Body Section)
.
2. Disconnect the electrical connection from hand
brake switch.
3. Remove one mounting screw and take out the
hand brake switch.
INSPECTION:
Check switch for continuity.
OFF Position
(Parking brake released)
No continuity
ON Position
(Parking Brake lever pulled up) Continuity
If checked result is not specified, replace switch.
REFITMENT:
1. Locate the switch on the hand brake lever
bracket and fit one mounting screw.
2. Connect the electrical connection to the switch.
3. Fit the floor console
(Refer Procedure from
Body Section).
