BRAKES
62
6.1.4 LOAD SENSING PROPORTIONATING
VALVE
(LSPV) (
FOR NON ABS VEHICLE
ONLY)
GENERAL DESCRIPTION
LSPV is required in the braking system during
severe braking. At the time of severe braking most
of the vehicle weight is transferred to the front and
front brake does most of the braking. Rear wheels
are left with little traction and in this high pressure
condition rear wheels have tendency to skid.
The LSPV valve is installed on the chassis and
load sensing spring is connected to the rear axle
at the other end. During heavy braking the valve
limits the pressure to the rear wheels and this
allows rear wheels to continue to rotate instead of
locking and skidding.

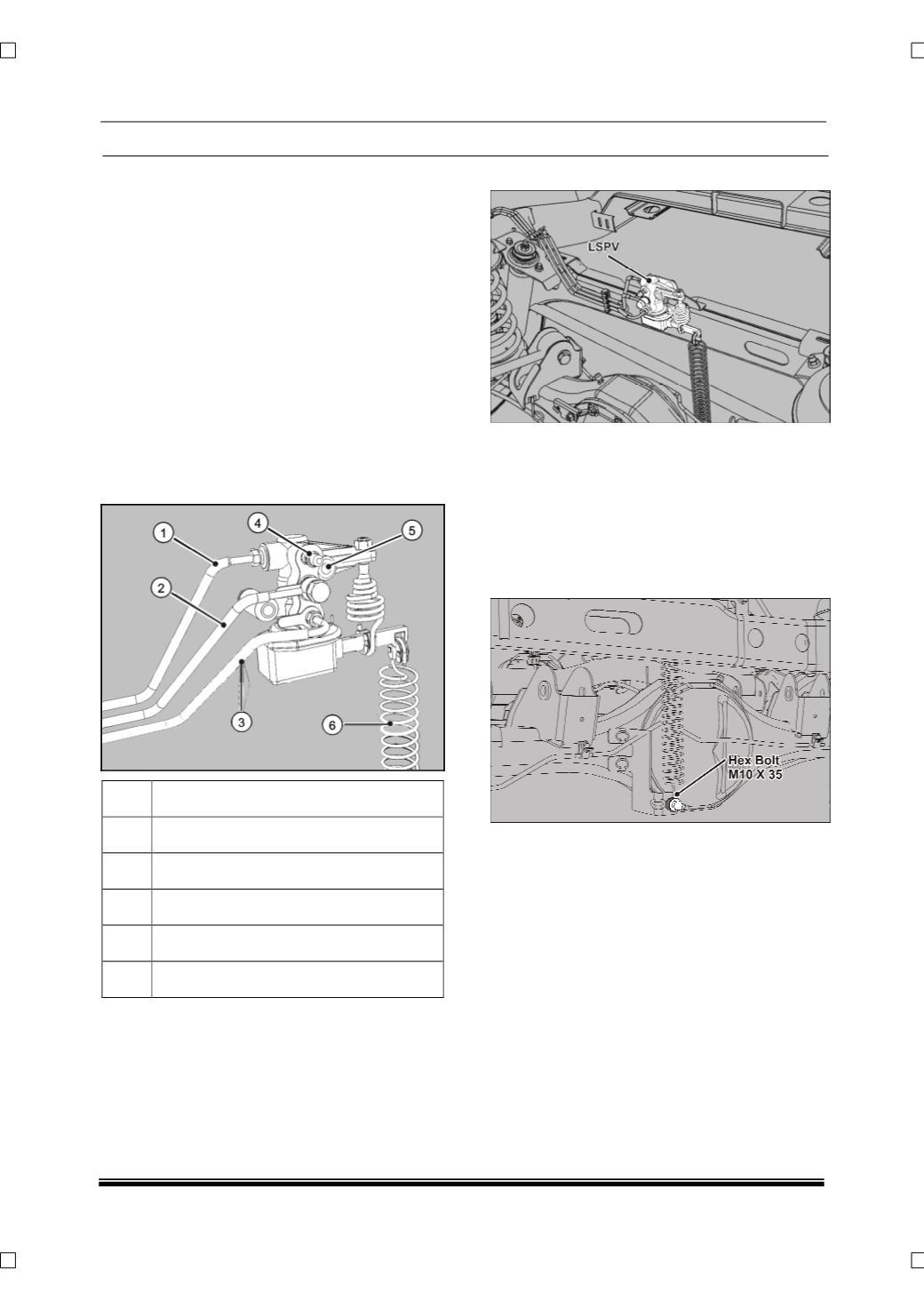

CONNECTION DETAILS
1
Front inlet port pipe
2
Rear outlet port pipe
3
Rear inlet port pipe
4
Bleed screw
5
Mounting holes
6
Control spring
LOCATION
The LSPV is mounted on the chassis at the rear
half above the rear axle. It is fitted on the chassis
with the help of two mounting bolts and at the
other end of the adjusting spring is mounted on
the rear axle.
REMOVAL
1. Loosen and remove the mounting bolt and free
the load sensing spring from the rear axle.
