FRONT AXLE (4X2)
6

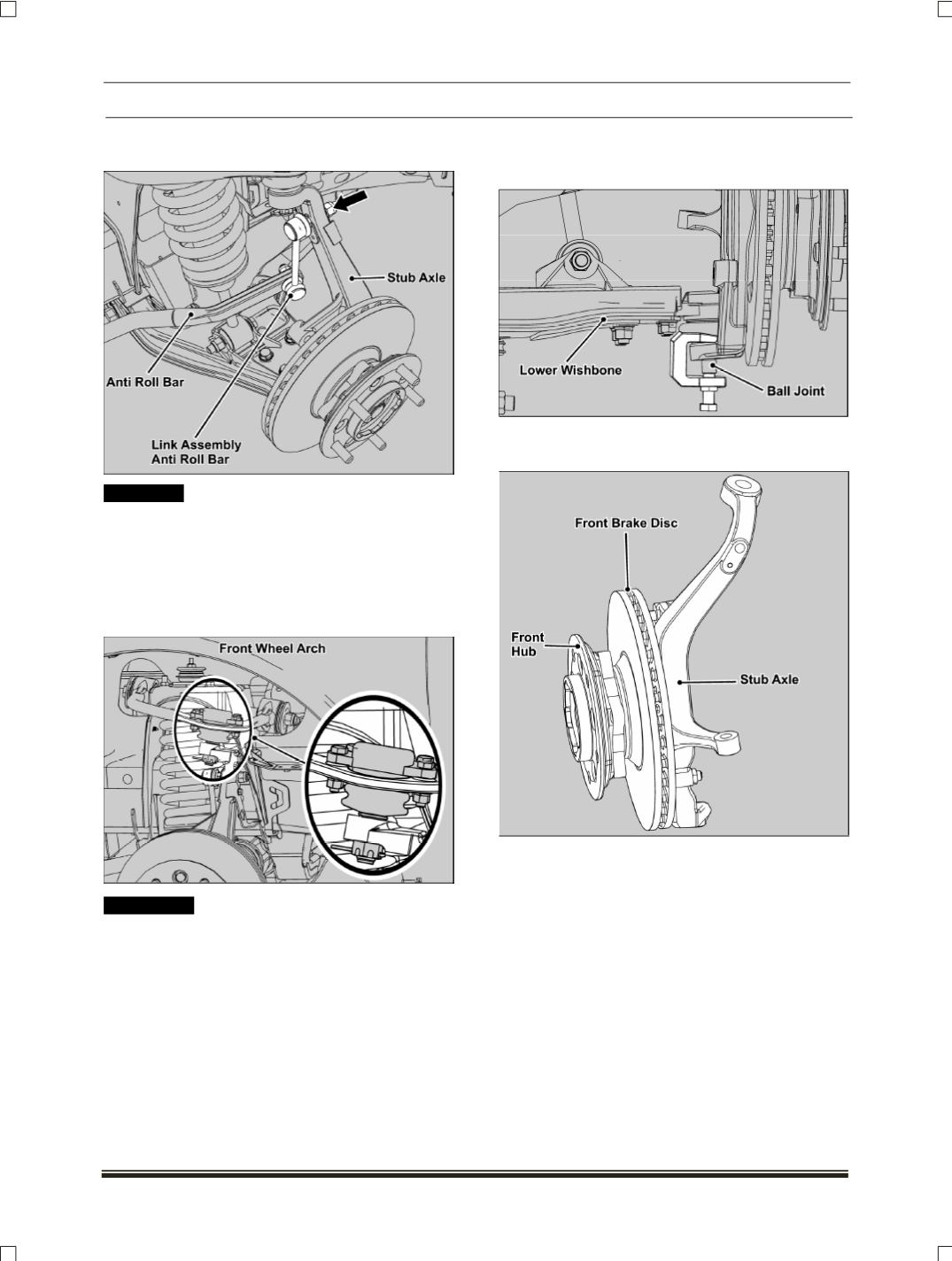

7. Loosen and remove the mounting nut of ARB
(Anti roll bar)
link assembly from stub axle.
! CAUTION
Allen key has to be used to hold the ARB link while
loosening or tightening to avoid damage to the link
(For removal procedure refer Front Suspension
section)
8. Disconnect upper wishbone ball joint
. (For
procedure refer Front Suspension section.)
0
!! WARNING
When the knuckle is disconnected from the upper
wishbone the knuckle may fall outwards towards
the operator. Hence supporting it is very
essential. If proper care is not taken it may cause
injury.
The upper wishbone might spring upwards when
released from knuckle, hence special care should
be taken.
9. Disconnect lower wishbone ball joint using puller
(Part No. 287058904601)
.
(For procedure refer
Front Suspension section)
10.Take out the stub axle assembly along with wheel
hub and brake disc.
INSPECTION
NOTE
Do not grease the unitised bearing as it is pre-
greased for life.
Check the condition of the following for wear or
damage. If necessary replace with new one.
1. Check the condition of hub for wear / scoring
marks. If necessary replace with new hub.
2. Check the condition of wheel bolts for worn out
/stripped threads. Replace the bolts if necessary.
Bolts are press fitted into the hub.
