FRONT AXLE (4X2)

FRONT AXLE

(4X2)

4.5.1 FRONT AXLE 4X2

4.5.1.1 GENERAL INFORMATION

4.5.1.1.1 TECHNICAL SPECIFICATIONS

TYPE

Independently suspended stub axle and hub

REPAIR / ADJUSTMENT

DATA

Axial play of hub bearing: 0.0 to 0.06 mm

LUBRICANTS

Steering knuckle ball joint sealing surfaces to be greased with LIT MP301.

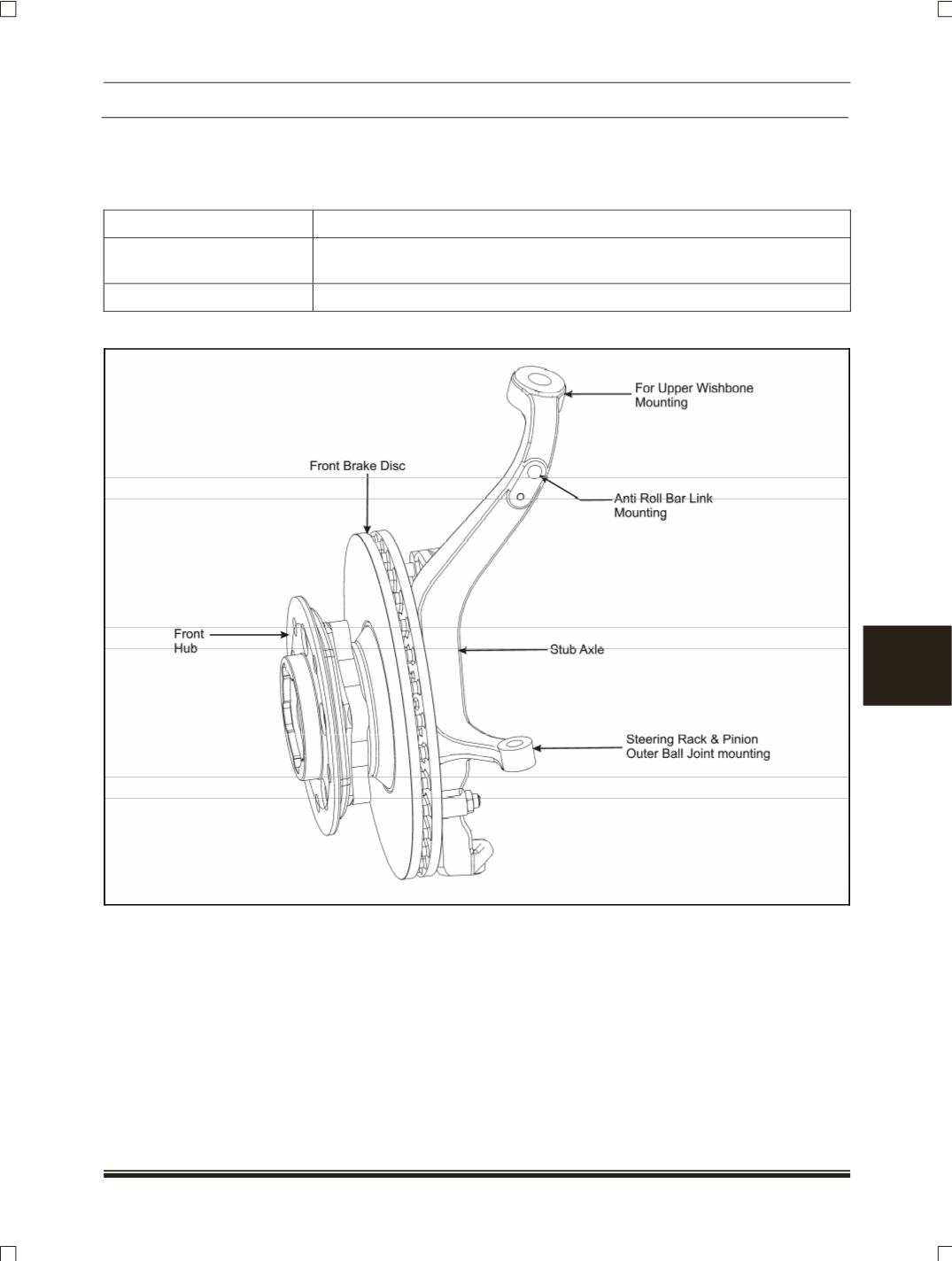

4.5.1.1.2 CONSTRUCTION AND LAYOUT
