FRONT AXLE (4X2)
7
FRONT AXLE
(4X2)
3. Check the condition of hex. nut for stripped or
worn out threads. Replace with new one if
required.
4. Check the condition of the upper and lower
wishbone ball joints. Check for excessive play in
ball joints. If required replace with new one.
(For
procedure refer suspension section)
5. Check the condition of ball joints of tie rods and
ARB link. If necessary replace with new one.
6. Check brake disc for scoring marks and measure
disc size. Replace with new one if found
undersize.
(For procedure refer Brakes section)
INSTALLATION
1. Make sure all parts are clean and free from dust.

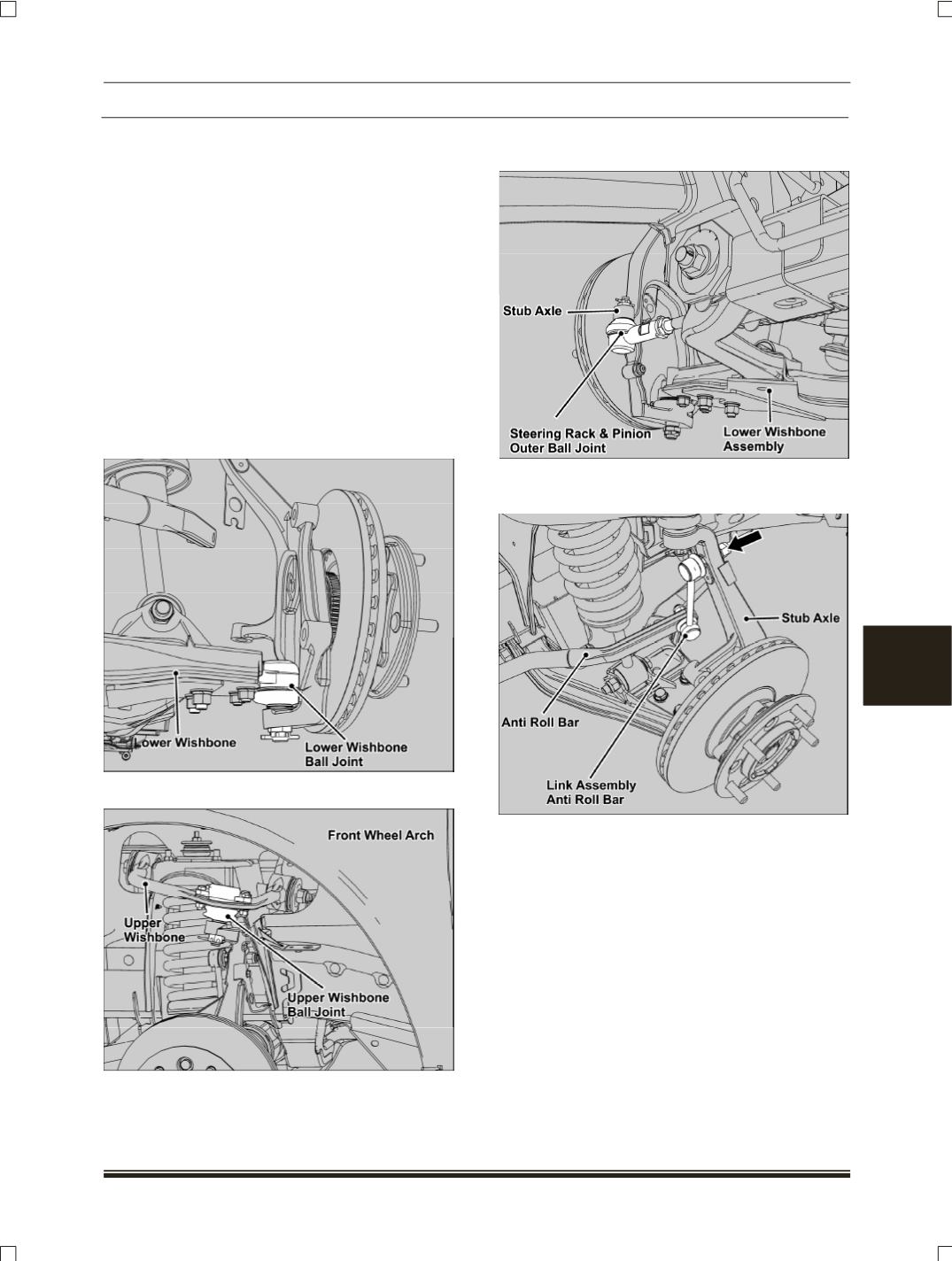

2. Connect lower wishbone ball joint.
3. Connect upper wishbone ball joint.
4. Reconnect steering rack and pinion OBJ end to
stub axle and tighten hex nut to 7 - 8 Kgm torque
5. Reconnect ARB link to stub axle and tighten the
nut to 8 - 10 Kgm torque.
