FRONT AXLE (4X2)
12
4.5.1.3.3 TONER RING REPLACEMENT
NOTE
Wheel hub and brake disc assembly already
removed from the stub axle..
REMOVAL

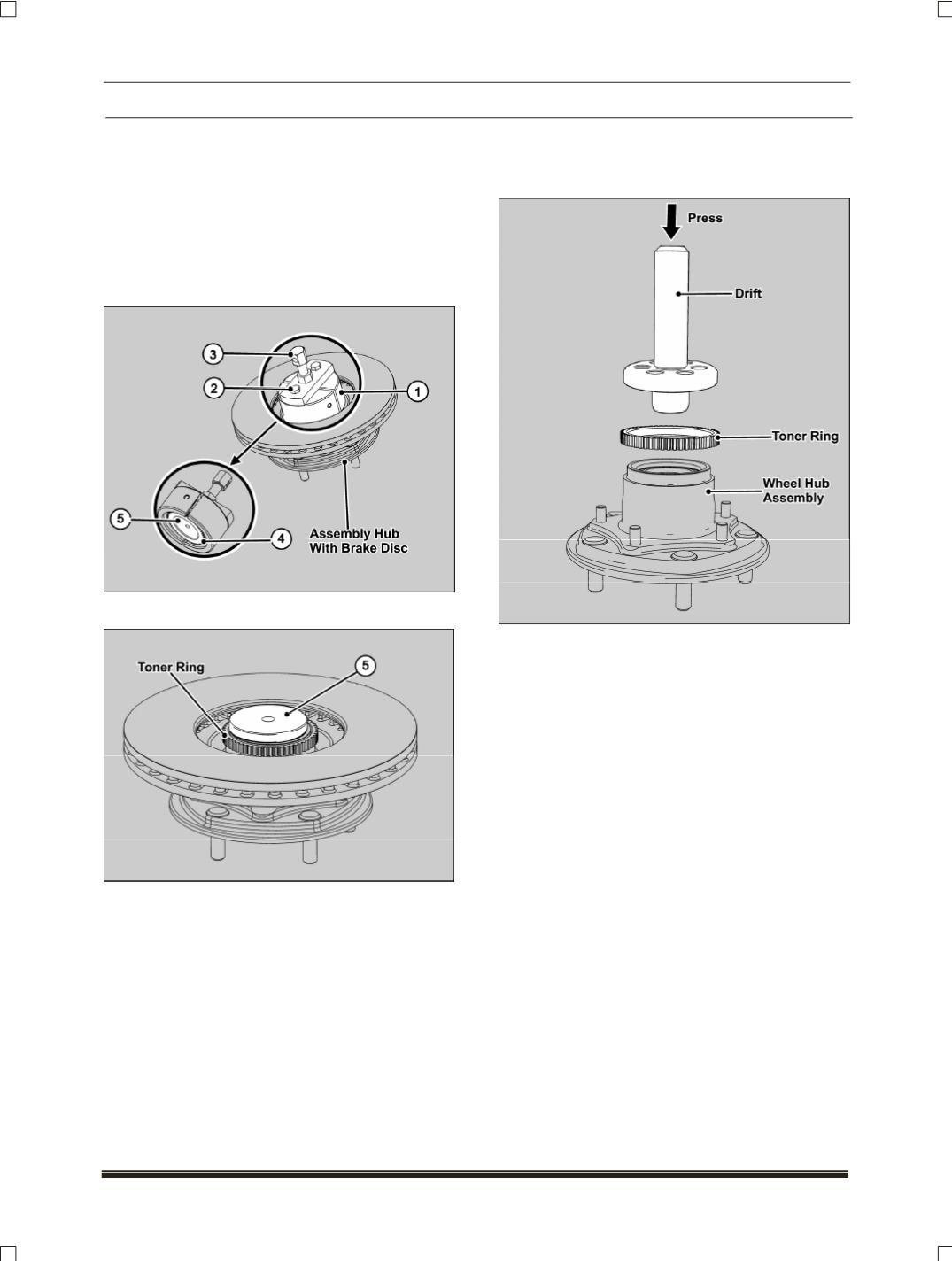

1. Remove the toner ring using special tool
(2870
5890 33 01)
as shown in below arrangement.
a. Place the bush support
(5)
on the hub.
b. Place the holding jaws
(1)
such that they hold the
toner ring.
c. Mount the plate on the holding jaws and tighten
the two hex bolts
(2).
Make sure that the bush
support
(5)
is resting on the hub and not on the
toner ring
(4).
d. Now slowly rotate the hex screw
(3)
using a
spanner. The tool will come off along with the
toner ring.
e. Remove the puller and take out the toner ring.
INSTALLATION
1. Use drift
(Part no. 2870 5890 33 02)
to fix the
toner ring on wheel hub as shown below.
