REAR
SUSPENSION
INSPECTION
1. Check the condition of anti-roll bar for any bend.
If required replace the same with new one.
2. Check the condition of rubber bush and ball joint
if found damaged replace with new one.
3. Check for grease in the mounting bearing block.
ASSEMBLY

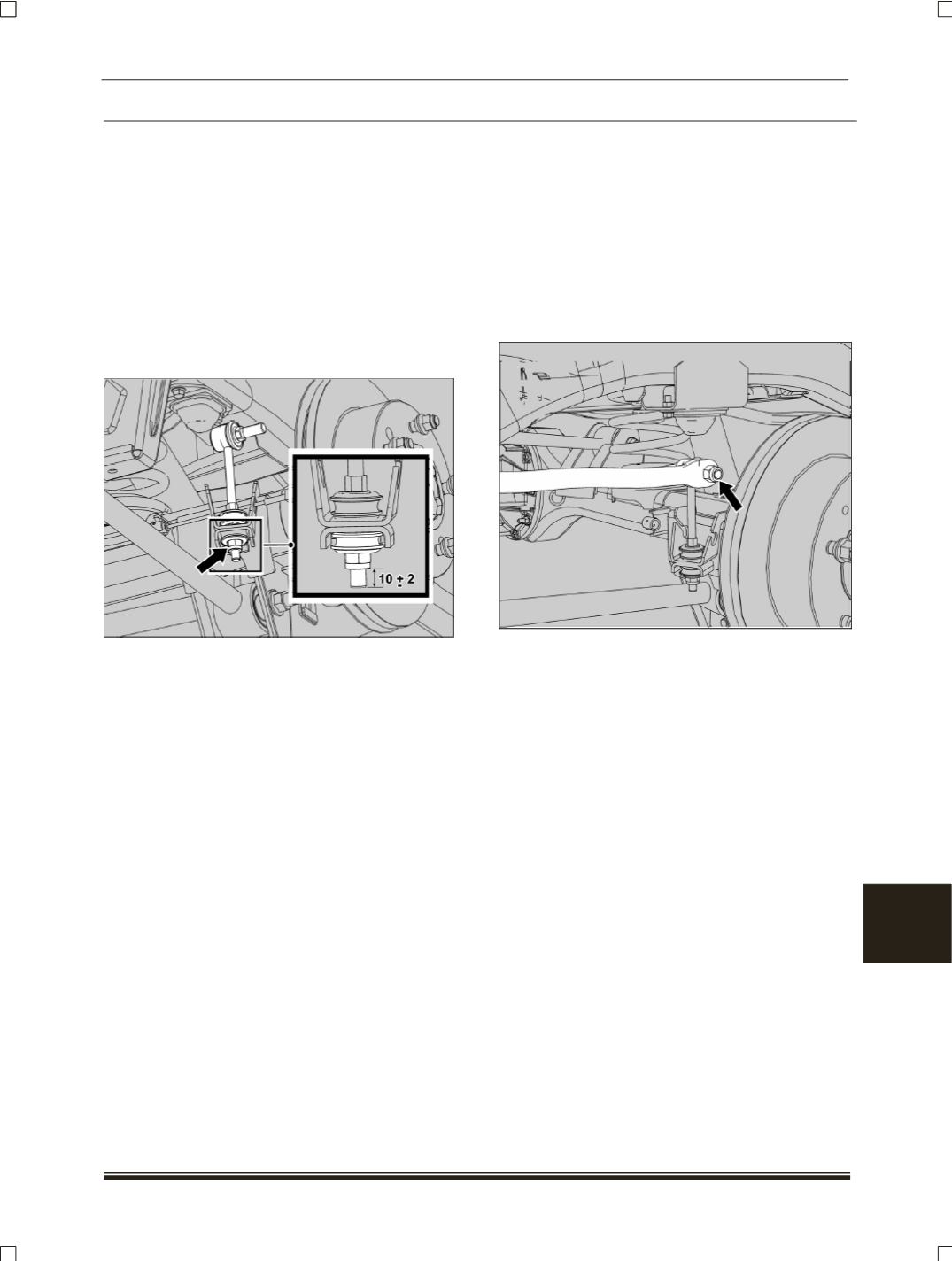

1. Locate the bushes and place the ball joint
assembly on the bracket and tighten the nyloc
nut. Follow the same procedure for other end
also.
NOTE
Tighten the nyloc nut such that the gap between the
edge of link and the nyloc nut is 10± 2mm as show in
the figure above
.
2. Position the anti-roll bar and install the bearing
block bracket on to the frame by tightening the
flange head screws on both ends.
NOTE
Apply 2.5 gm of grease should be applied on the
inside and cavities of bearing block
before fitment
of anti roll bar.
The mounting screws to be tightened to the
specified torque, refer tightening torque table
3. Lock the ball joint for rotation using Allen key
(5mm
) and connect the anti-roll bar to the ball
joint assembly by tightening the nyloc nut. Follow
the same procedure at the other end also.
