REAR SUSPENSION
39
REAR
SUSPENSION
3.

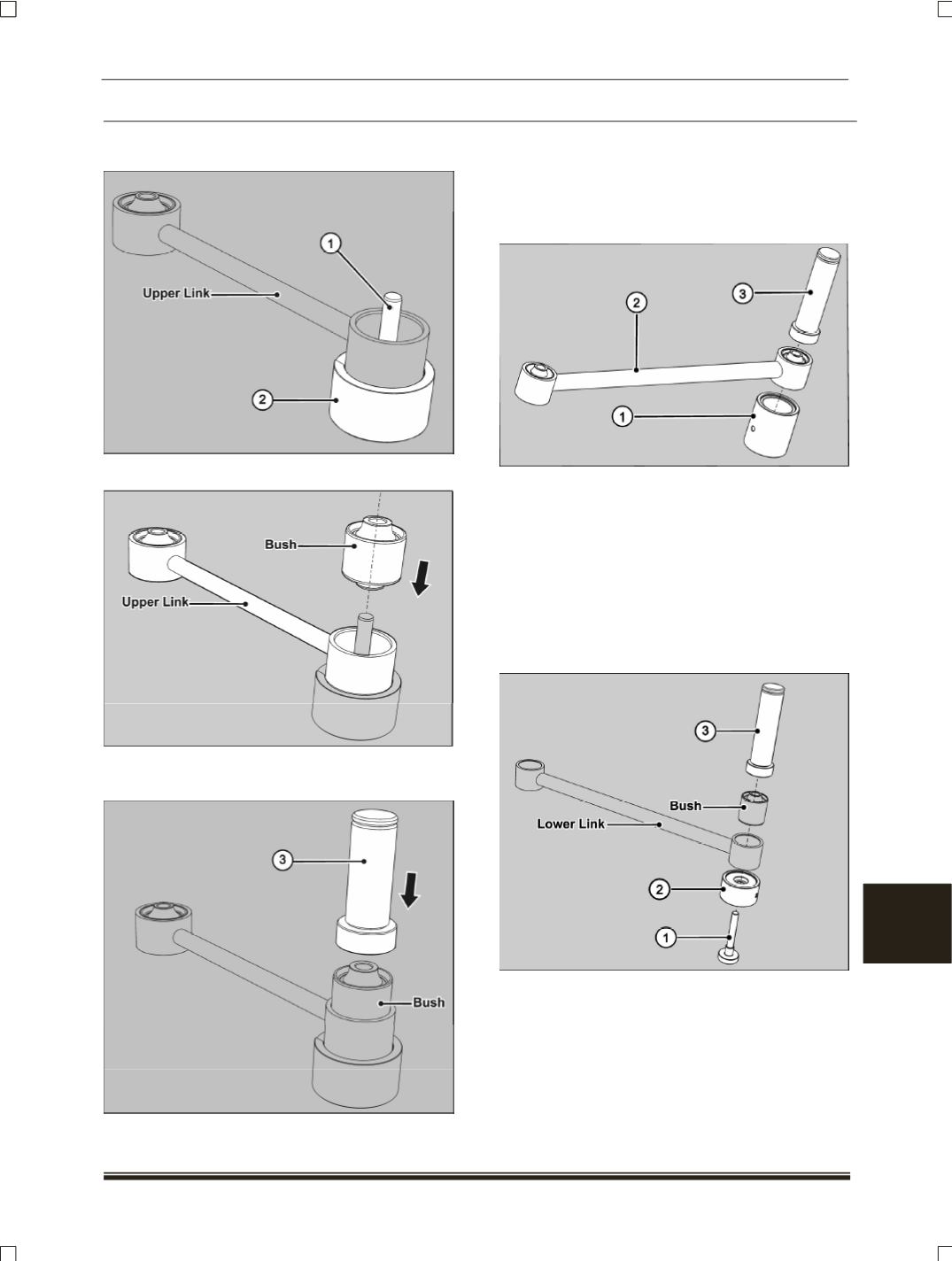

Place the upper link guide bush housing on to the
support
(2).
4. Mount the bush over the housing.
5. Place the Drift
(3)
above the bush and press it
using press machine.
B. LOWER LINK BUSH
REMOVAL
1. Remove the Lower link bush using special tool
assembly
(Part No.2870 5890 01 04).
as show in
below arrangement.
2. Place the lower link
(2)
bush housing on to the
support
(1)
3. Place the drift
(3)
above the housing and press
the same onto the press machine and take out
the bush.
INSTALLATION
1. Install the Lower link bush using special tool
assembly
(Part No.2870 5890 01 13)
as show in
below arrangement.
