TRANSFER CASE
4
4.3.1.3 COMPONENTS OF TRANSFER CASE
The transfer case System consists of following:
1. Electronic Control Unit (ECU)
2. Transfer case with shift motor, speed sensor
and electric clutch.
3. Indicator lights 4H and 4L.
4. Mode selector switch.
5. Harness to connect the above parts and power
input/output
1. ECU
A. GENERAL
Battery voltage at the ignition input will activate the
ECU. Driver can change the modes from 2H–4H–
4L by rotating the mode selector switch provided
next to the gear shift lever.

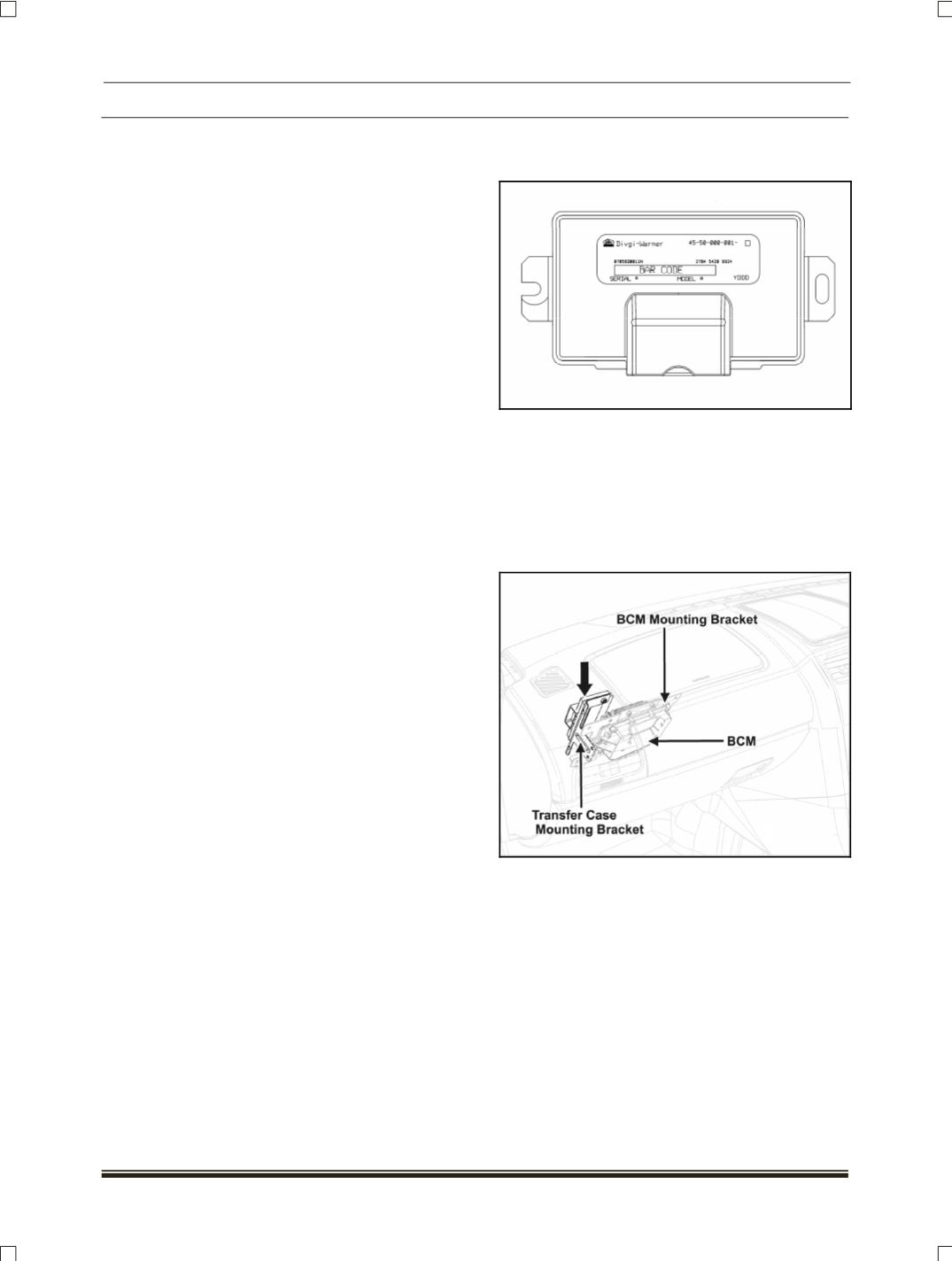

B. LOCATION:
Transfer case Electronic Control Unit (ECU) is
located at the Co-driver side behind glove box.
This ECU is mounted on cross car beam of vehicle
with help of the separate ECU mounting bracket
.
