TRANSFER CASE
10
C. TRANSFER CASE IN 4L MODE
To shift the vehicle from 4H mod to 4L mode below given instructions has to follow:
Stop the vehicle
Apply the clutch
Shift the selector switch from 4H to 4L
The above 3 steps have to be followed while shifting from 4L to 4H. Following flow chart shows the torque
transmission through the transfer case while 4L mode.

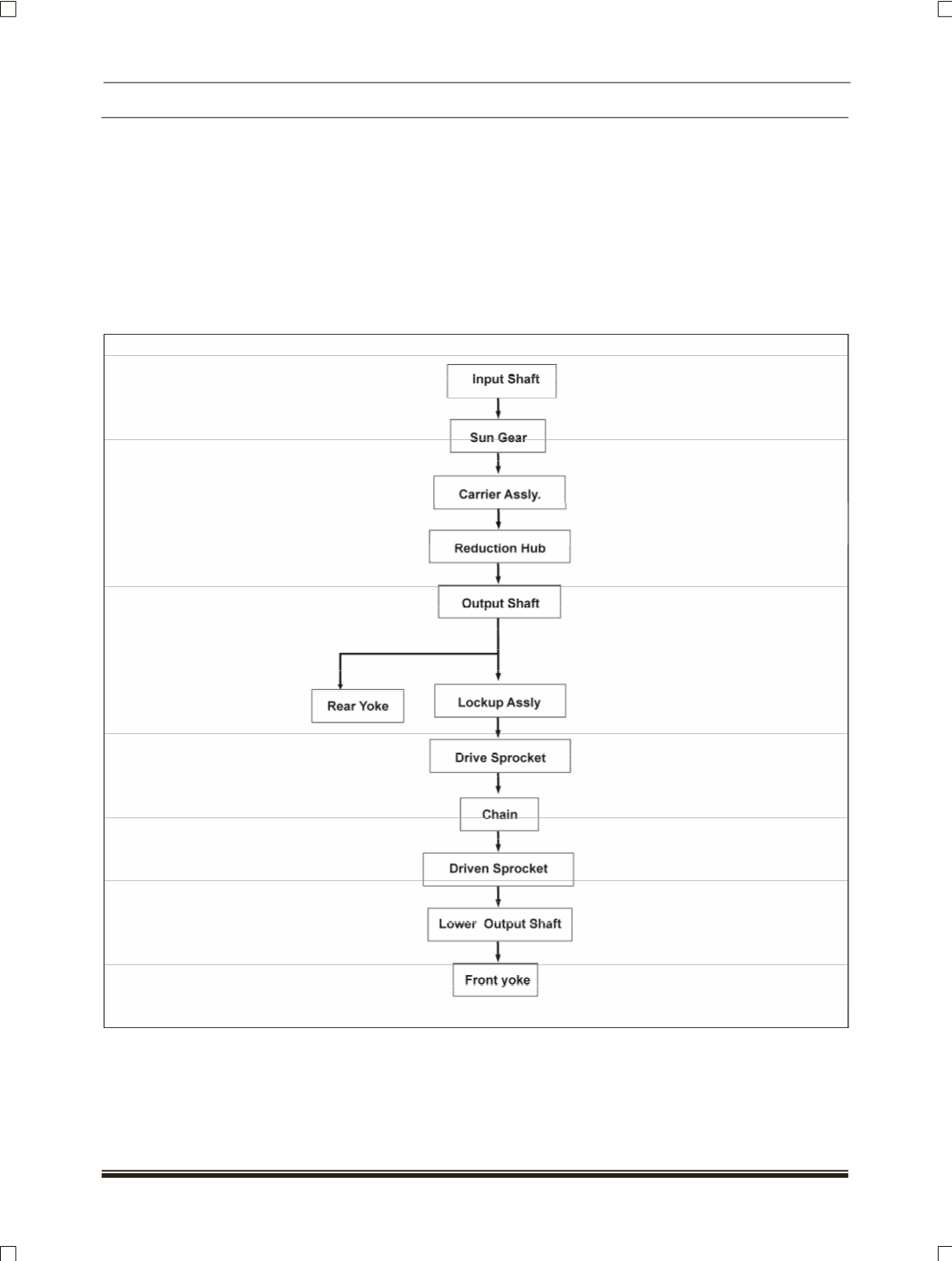

4L MODE FLOW CHART
