CLUTCH
23
NOTE
•
It is must to replace clutch disc with cover
assembly as a set for any of the above
mentioned defects.
•
Also it is must to replace the concentric slave
cylinder assembly as a whole with throw out
bearing if the bearing is damaged or worn out.
5. Check the bearing for damage or abnormal
noise.
! CAUTION
Ensure that the clutch facing material is
not contaminated with oil or grease as this shall
result in clutch slipping.

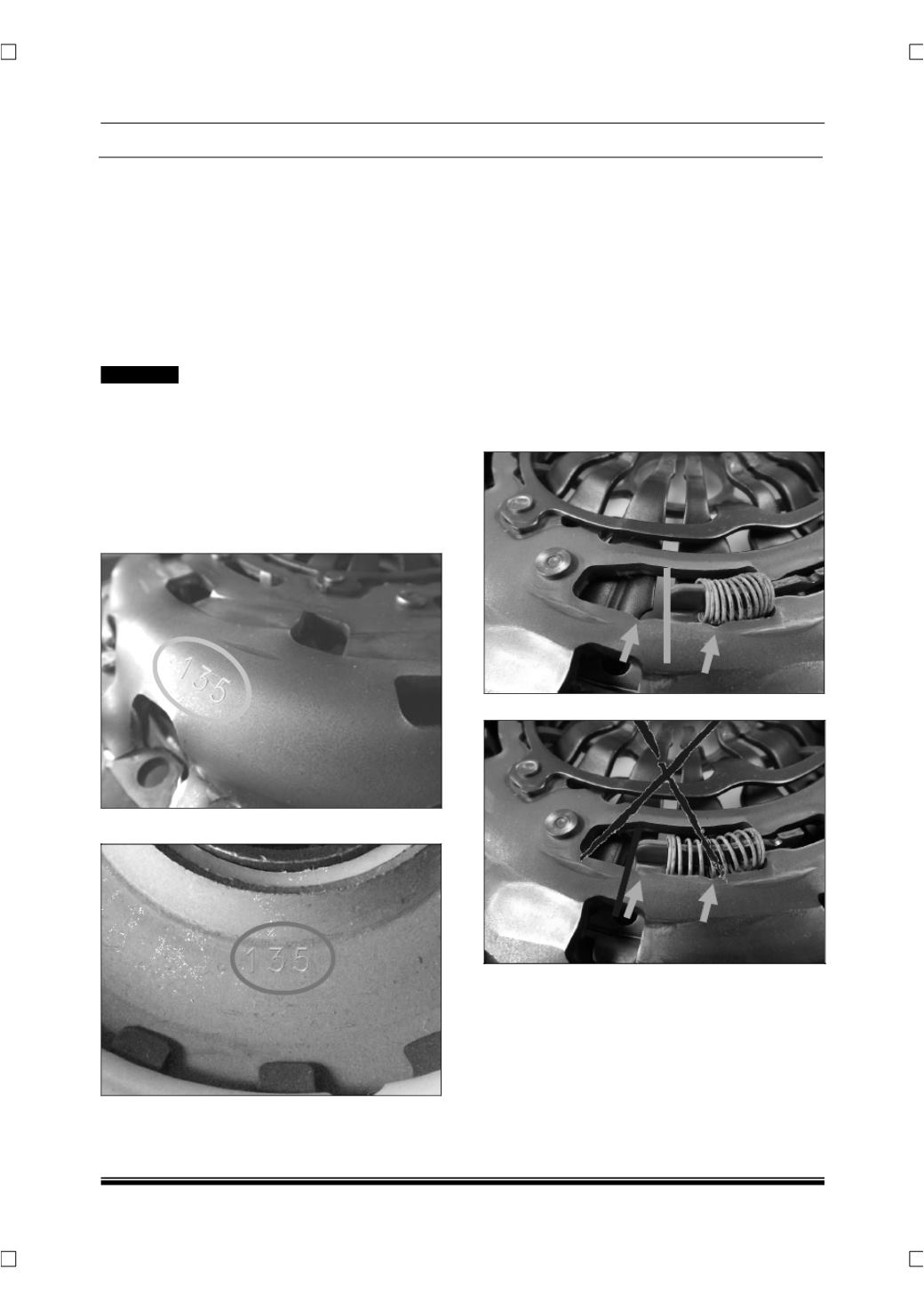

C. PRECAUTION FOR ASSEMBLY OF SAC
1. Use only paired Clutch Disc & SAC set for
assembly
2. Ensure same serial no. marking on SAC cover
assembly & Clutch Disc.
SAC Cover Assembly
Clutch Disc Assembly
3. Don’t mix the disc from SAC-Set 1 to other
SAC- Sets 2, 3, 4. The Release load is
adjusted with same set of SAC and disc. You
can recognize that a disc was measured with
a SAC because of the same serial number.
4. SAC should be assembled with counter
load only (i.e. without releasing the clutch)
5. Don’t engage or disengage a clutch cover
without having a disc under the pressure plate.
SAC will adjust irregularly and produces
unpredictable.
Release load and Clamp load and therefore
Pedal load is also unpredictable.
Don’t use this Set anymore.
(Adjusting ring is inside cover notches, SAC is ok)
(Adjusting ring is outside cover notches, SAC is not
ok (Only in new condition))
6. Don't release SAC without a clutch disc under
pressure plate & unless the SAC is properly
screwed to flywheel.
7. Replacement of the clutch should be as a set
only.
8. Do not replace individual clutch disc or SAC.
9. In field strictly follow the procedure as mentioned
in service manual
