CLUTCH
19

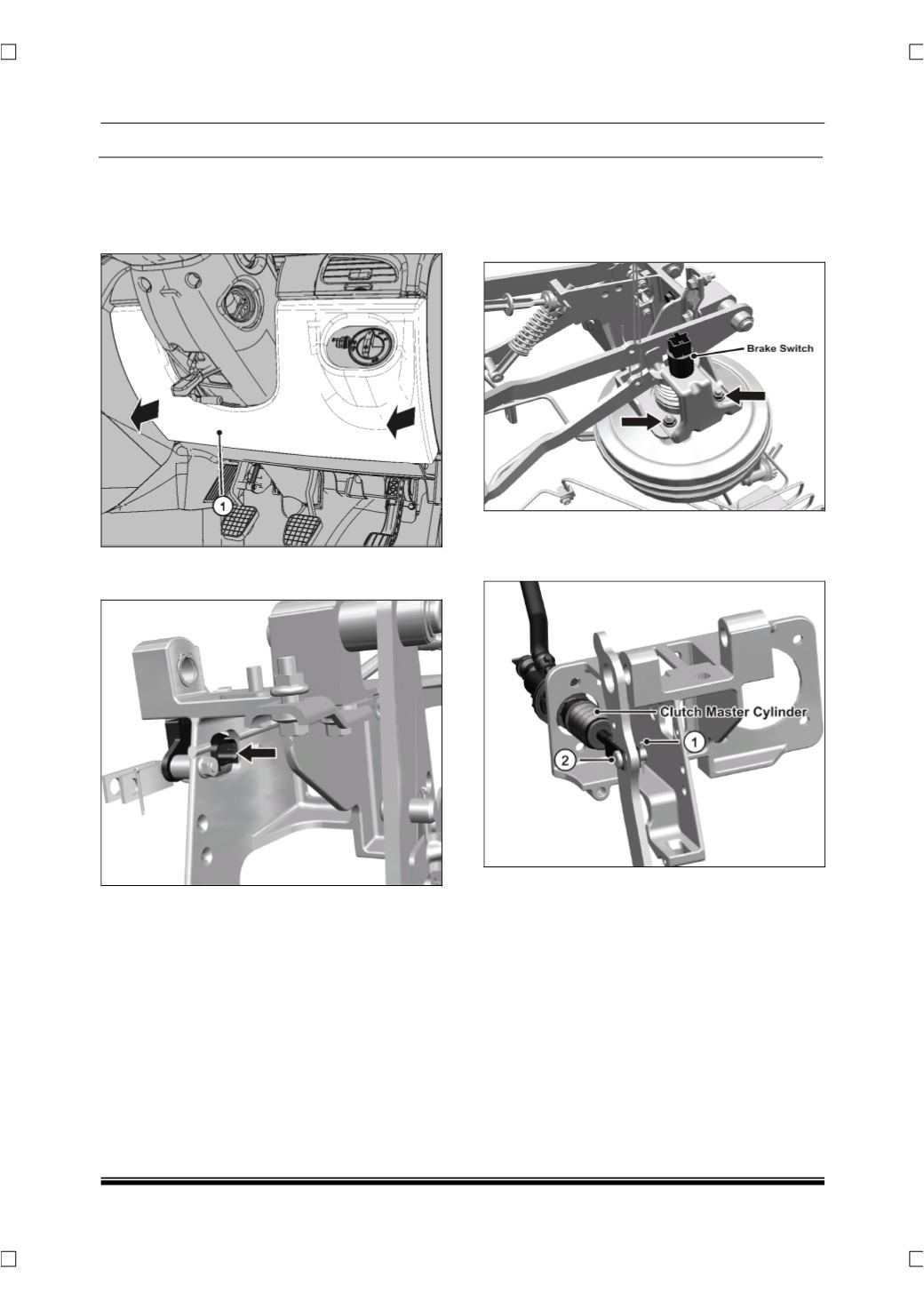

CONTROL BRACKET ASSEMBLY REMOVAL
1. Disconnect battery connection.
2. Pry out the lower cover
(1)
of steering column.
3. Disconnect the electrical connector from the
clutch switch
.
4. Remove upper nacelle and lower nacelle.
(For
removal procedure, refer body section).
5. Remove the Steering column assembly from
intermediate shaft end.
(For procedure refer
Steering section).
6. Remove the brake booster assembly
(Refer On
Vehicle procedure of booster assembly
removal in brake section)
7. Also disconnect the electrical connecter of
brake switches and remove the brake switch
mounting bracket by removing its nuts.
8. Remove the spit pin
(1)
and free the clutch
pedal from the clutch master cylinder by
removing the clevis pin
(2)
.
