CLUTCH
28

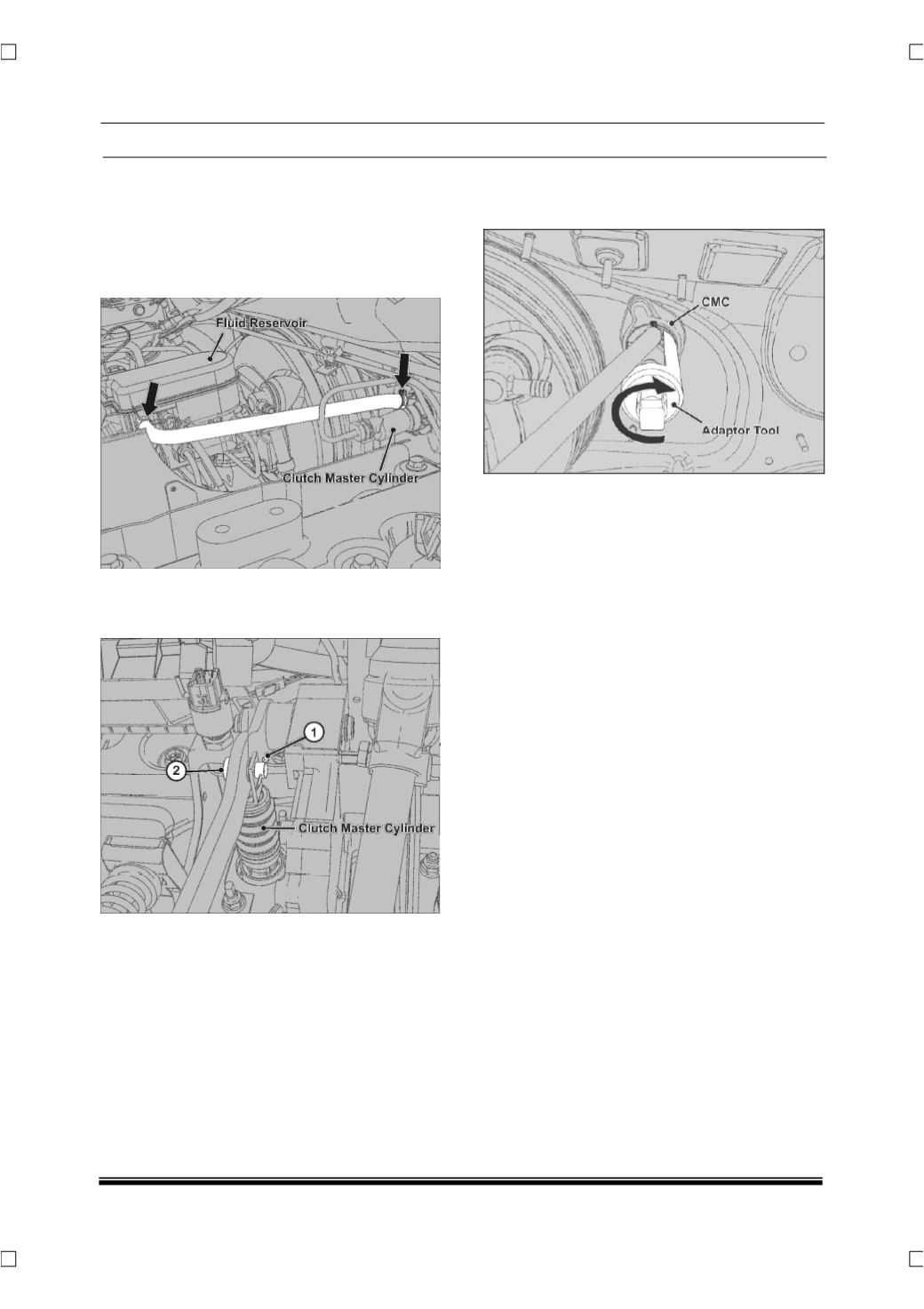

4. Disconnect the hose connecting clutch master
cylinder by removing the clamp.
NOTE:
•
Collect the fluid from the fluid reservoir in a
clean container. OR Ensure that fluid does not
fall from the hose.
5. Disconnect the clutch master cylinder from the
clutch pedal by removing the spilt pin
(1)
and
clevis pin
(2).
6. Turn the CMC 45º in clockwise direction and
remove it from the bayonet adapter slots.
NOTE
•
Be careful not to damage the master cylinder
body.
•
Check for rust and scoring of clutch hose.
