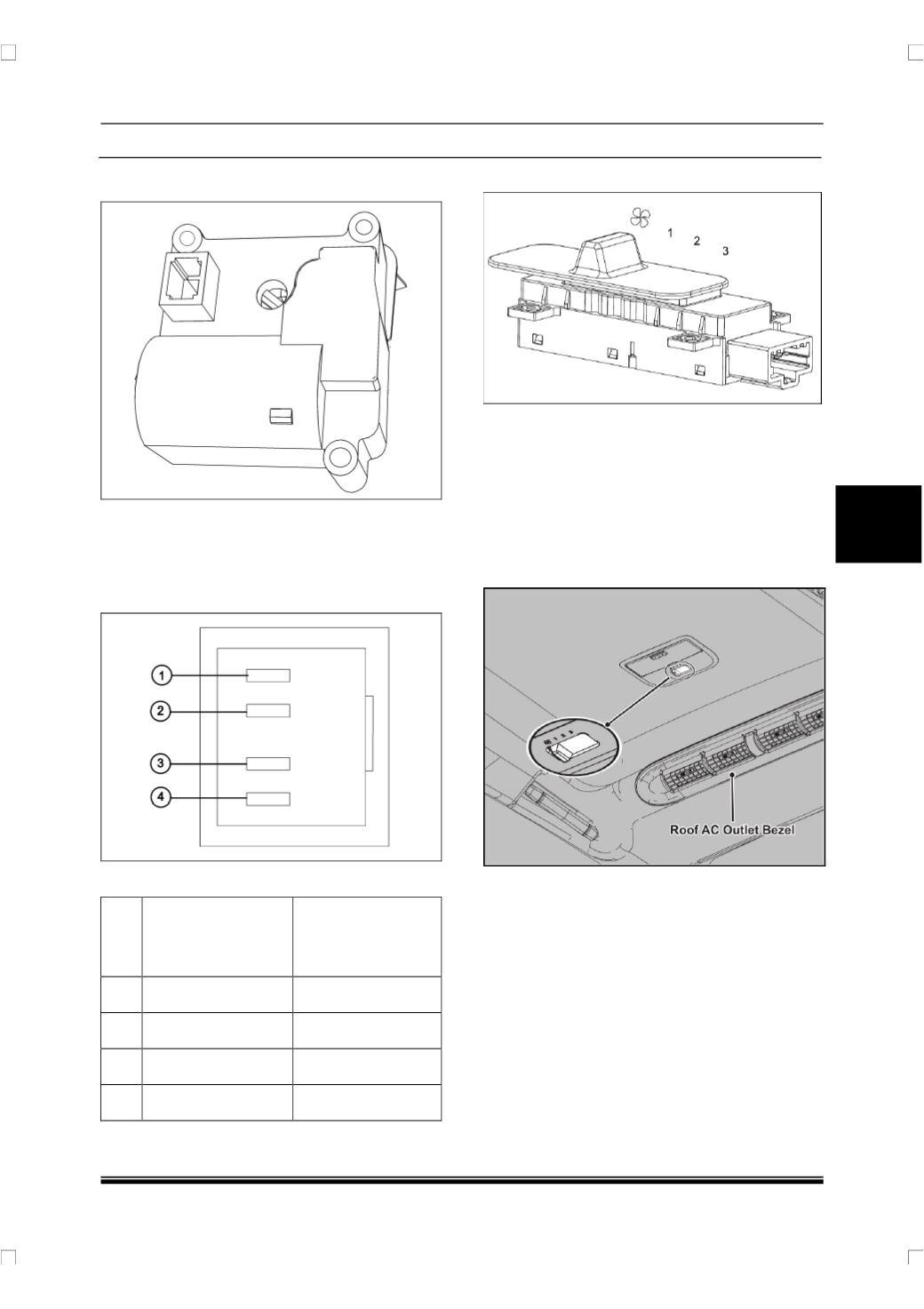

10.1.5.9 AIR INLET ACTUATOR
.
The actuator used to operate the air intake door is a
bi-directional with no feedback actuator. It controls
the air intake door through the air intake control volt-
age.
PINOUT
CONNECTION DETAILS
PIN
NO
CONNECTION
(REC POSITION)
CONNECTION
(FREASH POSI-
TION)
1 GROUND
NC
2 NC
NC
3 NC
GROUND
4 + VE
+ VE
10.1.5.10 REAR BLOWER SWITCH
The rear blower switch mounted on the roof liner is
used to switch ON/OFF and control the blower that
drives air from rear AC to the second and third row.
SPECIFICATION:
1. Operating Voltage: 9 to 16 V
2. Operating Current: 0,5 to 7.5 Amp.
4. No. of Position: 4
LOCATION:
