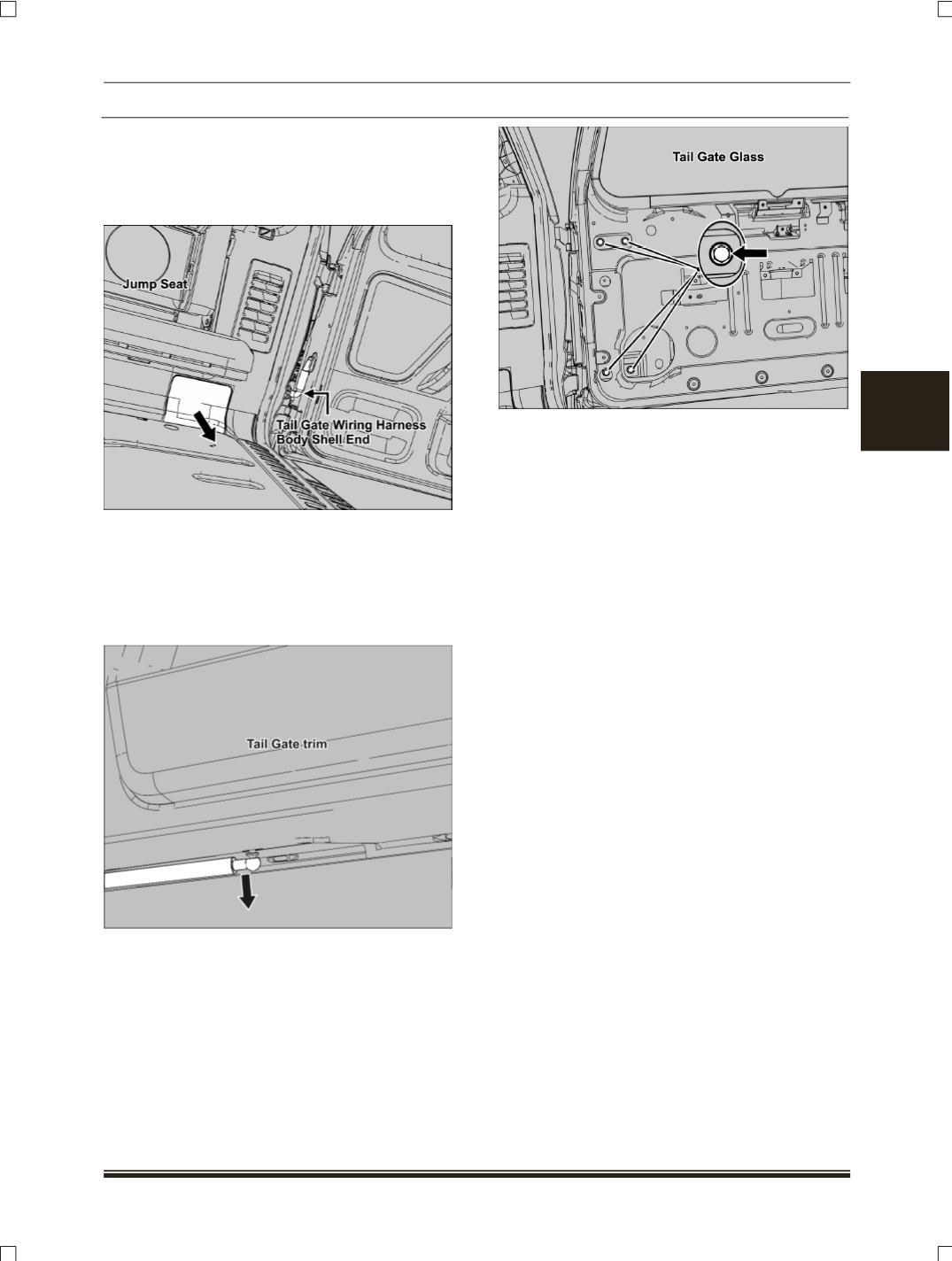

1. Open the tail gate.

2. Pull out the lower access panel cover of rear

quarter trim to access tail gate wiring harness.

3. Disconnect the tail gate wiring harness and pull

out from body shell end.

4. Support the tailgate assembly and unlock

balancer as shown below and by pulling in

downward direction remove balancer from tail

gate end.

5. Remove tail gate trim to access mounting bolts

remove tail gate trim

(for procedure refer tail

gate removal procedure in this section)

6. Loosen and remove four mounting four

mounting bolts and carefully separate the tail

gate from body shell.

7. Remove the right hand side tail lamp assembly

to access door hinges

(for procedure refer tail

lamp removal in Electrical section

)

FITMENT

For fitment follow the reverse procedure of

removal.

NOTE

Ensure proper tightening torque is given to the

hinges of tailgate. For torque value refer to the

tightening torque table.
