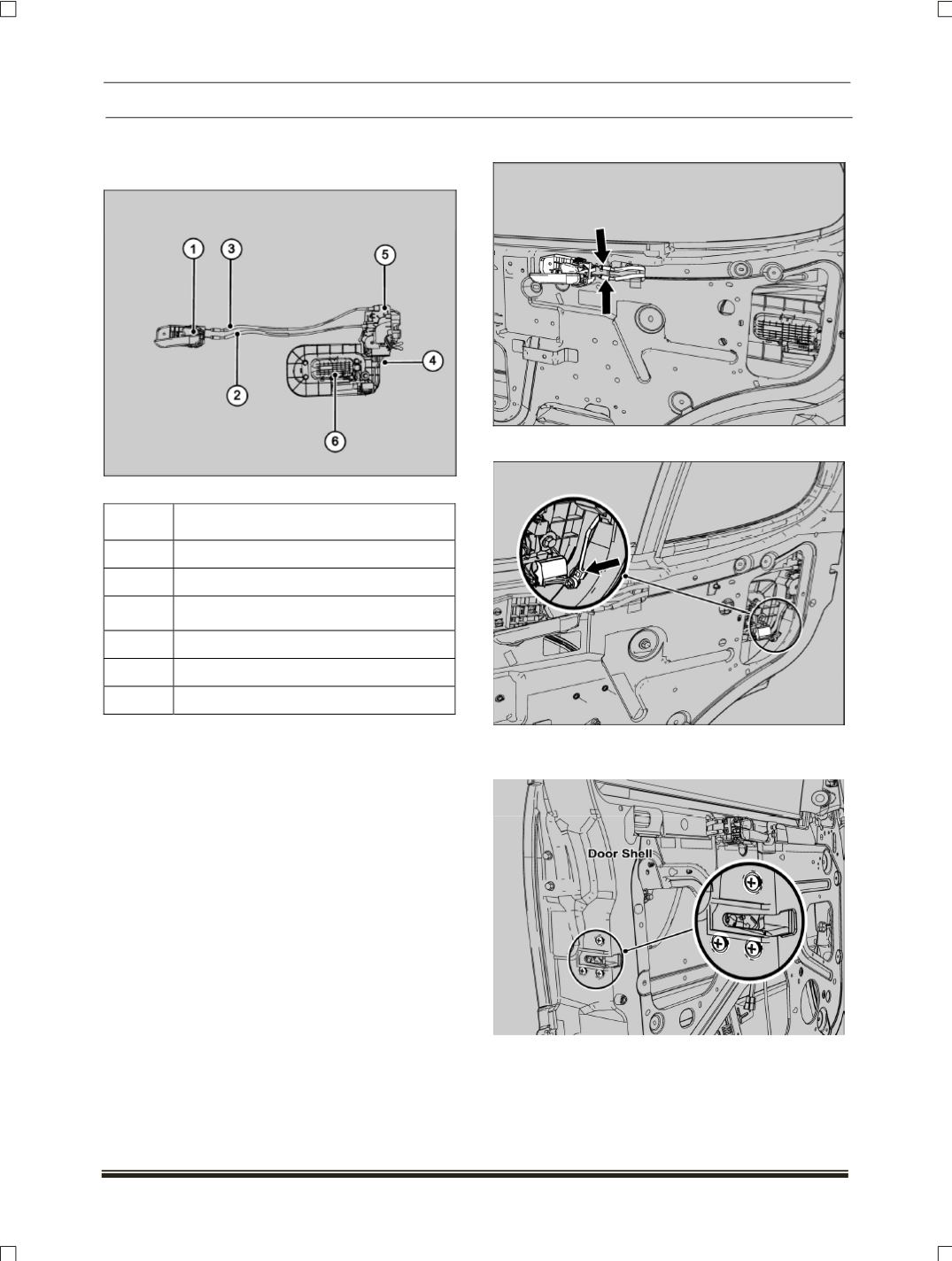

9.2.18DOOR LATCH REAR

REMOVAL

SR.

NO

DESCRIPTION

1

Inner handle (Rear Door)

2

Cable inner handle to latch

3

Cable pop knob to latch

4

Link outer handle to latch

5

Latch

6

Outer door handle

1. Remove the door trim

(For procedure refer

door trim removal procedure in this section.)

2. Remove inner handle (refer inner handle

removal procedure in this section).

3. Disconnect electrical connector.

4. Disconnect the cables of inner door handle and

take out the same.

5. Disconnect the link between outer door lock and

latch at door handle end.

6 Loosen three mounting screws and take out the

latch.

FITMENT

For fitment follow reverse procedure of removal
