BODY

38

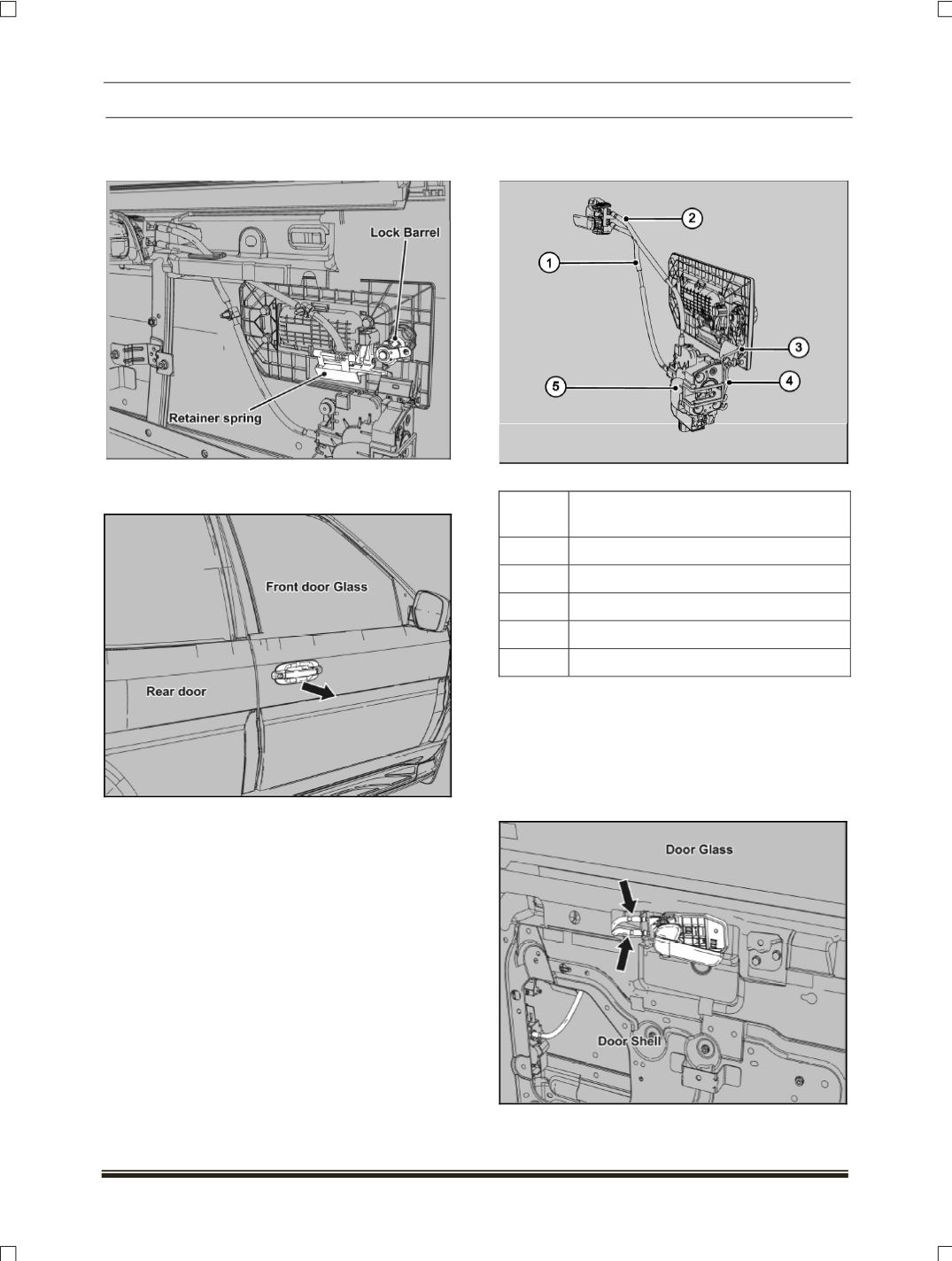

7. Pull the retainer spring of lock barrel and pull

out the lock barrel towards inside of vehicle

.

8. Take out the outer handle assembly from out

side of vehicle door.

9. Remove back plate from outer panel.

FITMENT

For fitment follow reverse procedure of removal.

NOTE

While assembly carefully stick the plastic

membrane of door shell from inside.

9.2.14 FRONT DOOR LATCH

REMOVAL

SR.

NO

DESCRIPTION

1

Cable between inner handle to latch

2

Cable between pop up knob to latch

3

Link between lock barrel to latch

4

Link between outer handle to latch

5

Latch

1. Remove the door trim.

(For procedure refer

door trim removal in this section.)

2. Disconnect electrical connector at the latch

end.

3. Disconnect the inner handle as per inner

handle removal process.
