BODY
37
BODY

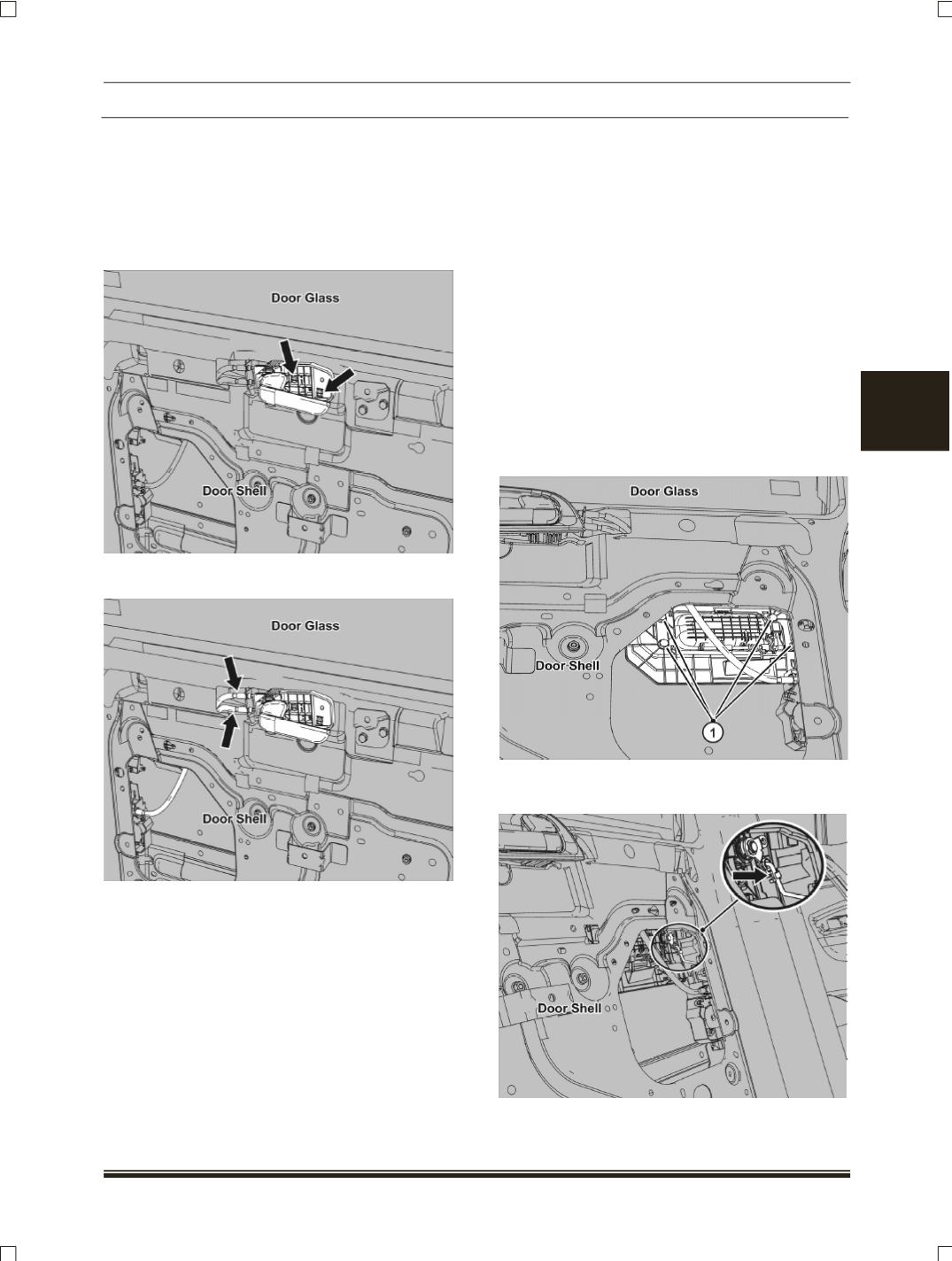

INNER LATCH HANDLE
REMOVAL
1. Remove the door trim.
(For procedure refer
door trim removal in this section.)
2. Loosen and remove the mounting screws (2
Nos) of inner handle.
3. Remove the inner handle and then disconnect
cable
FITMENT
For fitment follow reverse procedure of removal.
9.2.13 FRONT OUTER DOOR LOCK BARREL
AND HANDLE
REMOVAL
1. Remove the door trim.
(For procedure refer
door trim removal in this section.)
2. Carefully remove the plastic membrane from
door shell to access the mounting bolts of outer
door handle.
3. Remove latch inner handle
(for procedure refer
inner handle removal in this section)
4. Loosen and remove glass guide channel
(for
procedure refer door glass removal in this
section
)
5. Loosen and remove mounting bolts of back
plate from inside.
6. Remove the linkage of lock barrel and outer
handle
